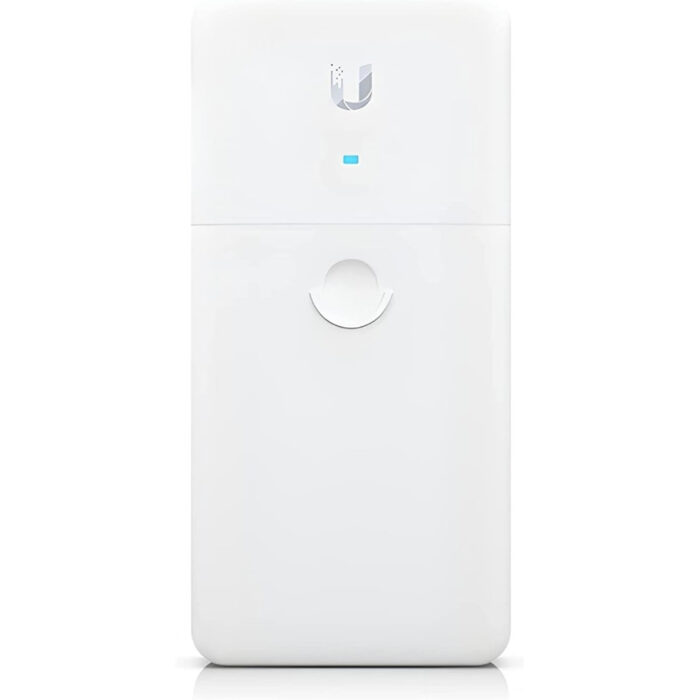

Ubiquiti UACC-LRE Long-Range Ethernet Repeater

The Ubiquiti UACC-LRE Ethernet Repeater is a gigabit adapter that expands your ethernet network. You can chain multiple adapters to connect distant access points and cameras. It offers 10kA+ surge protection and works in extreme temperatures (-40°C to 80°C) to protect from weather and electrical damage.

Specifications:

• Mechanical
  • Dimensions: 196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5 inch)
  • Weight: 350 g (12.3 oz)
  • Enclosure material: UV-stabilized polycarbonate
  • Mounting material: Stainless steel
  • Weatherproofing: IPX5
• Hardware
  • Networking interfaces: GbE RJ45 ports
  • Power method: 802.3at PoE+ 2-pairs (pins 1, 2+; 3, 6-)
  • Max power consumption (excluding PoE out): 1.5W
  • Voltage range: 37 to 57VDC
  • PoE interfaces: Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
  • ESD/EMP protection: Air/contact: ± 30kV
  • DC spark over voltage: 90V at 100V/s
  • Max. impulse spark over voltage: 700V at 1kV/µs
  • Discharge current: 10kA+
  • Modes
    • Long-range indoor
    • Outdoor Ethernet repeater
  • Operating temperature: -40° to 80°C (-40°F to 176°F)
  • Operating humidity: 10 – 95% non-condensing
  • Certifications: CE, FCC, IC
• LEDs
  • System: Blue: power ON
  • Ethernet: Green: 1 Gbps, Amber: 10/100 Mbps
  • PoE: Amber: passthrough PoE out
