TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out Outdoor Weatherproof Centralized Management

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Up to 200 m PoE Distance
Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*

1-Port Gigabit PoE++ In and 4-Port PoE+ Out
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**

Outdoor Weatherproof
IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

Easy Installation
Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.

Centralized Cloud Management
Integrates into Omada SDN for cloud access, remote management, and multi-site management.

Value-Added Features Foster Touchpoint Experiences
Static Routing, Access Control List (ACL), QoS, and VLAN.

PoE-Powered PoE Switch for Simplified Outdoor Network Deployment

• Powered by PoE++/PoE+/PoE
• Max 64 W PoE Budget with 4 PoE+ Output Ports**
• Double the PoE Distance up to 200 m without Losing Gigabit Speeds*
• Full Gigabit Ports
• Easy Installation with Pole-Mounting / Wall-Mounting
• Waterproof and UV-Resistant Casing
• Centralized and Multi-Site Management
• Static Routing

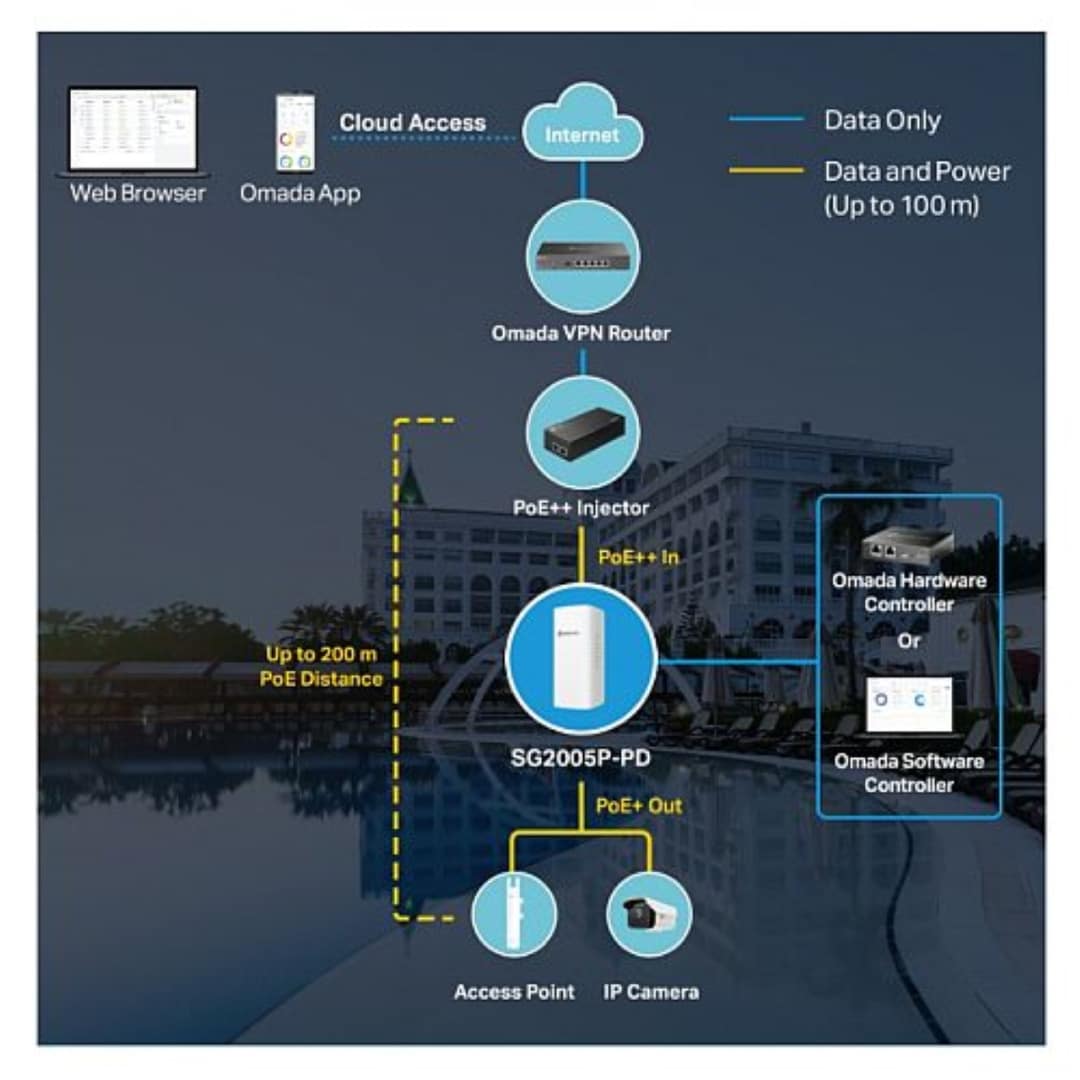

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds

Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.*

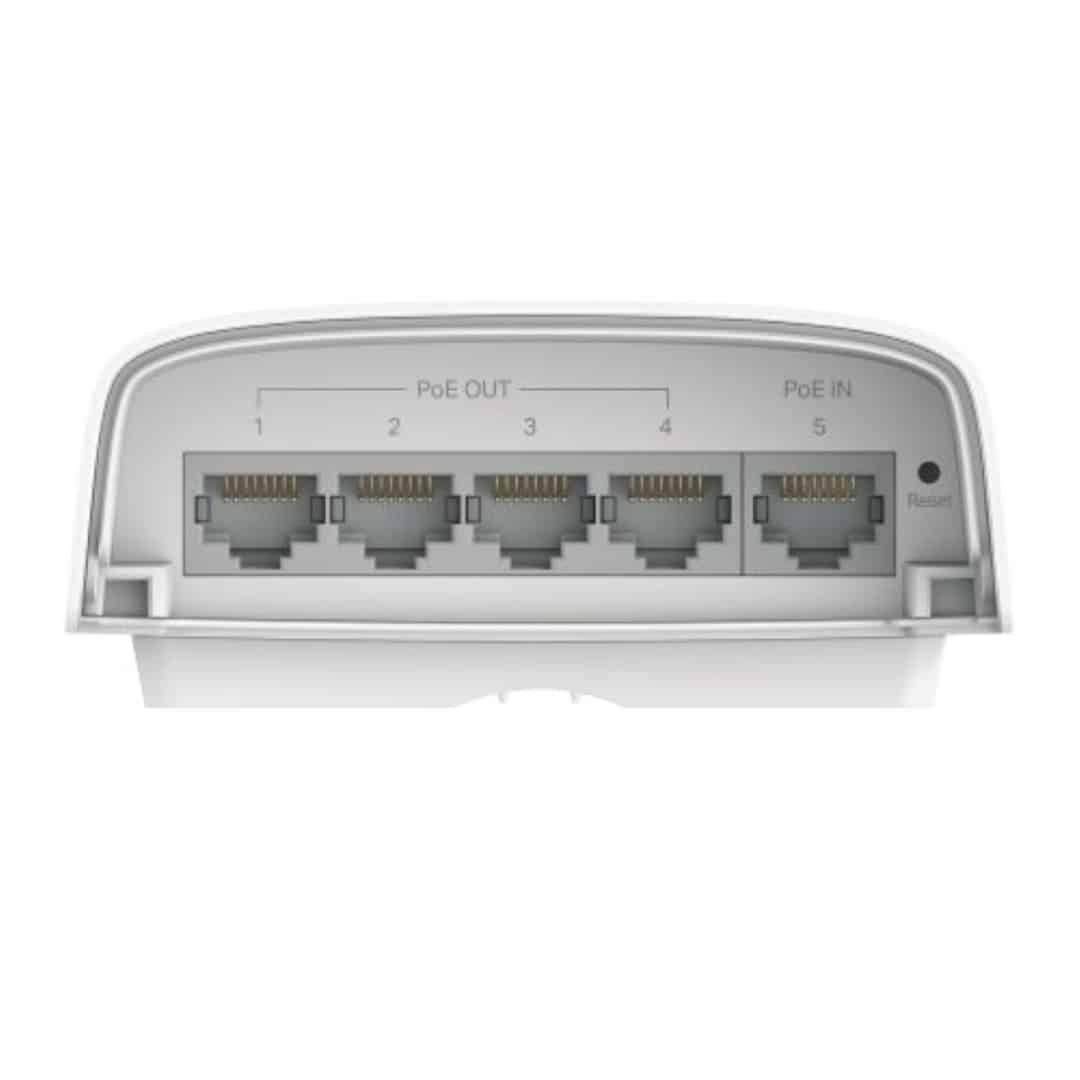

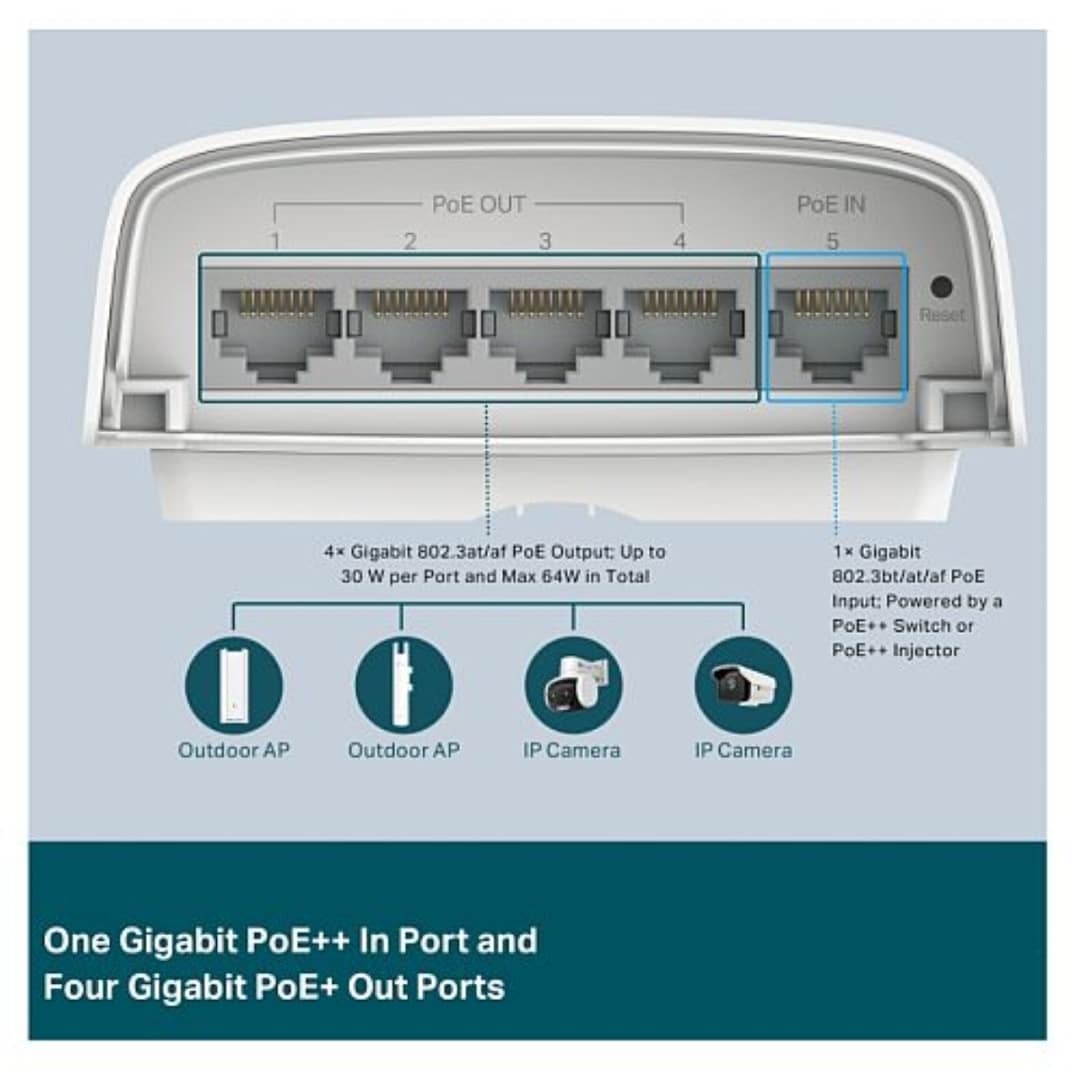

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports

Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

Specially Designed Weatherproof Enclosure for Outdoors

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

• Waterproof Enclosure
• No Ingress of Dust
• Operation Temperature of -40 to 60 C
• UV-Resistant Casing
• 4KV Lightning Protection

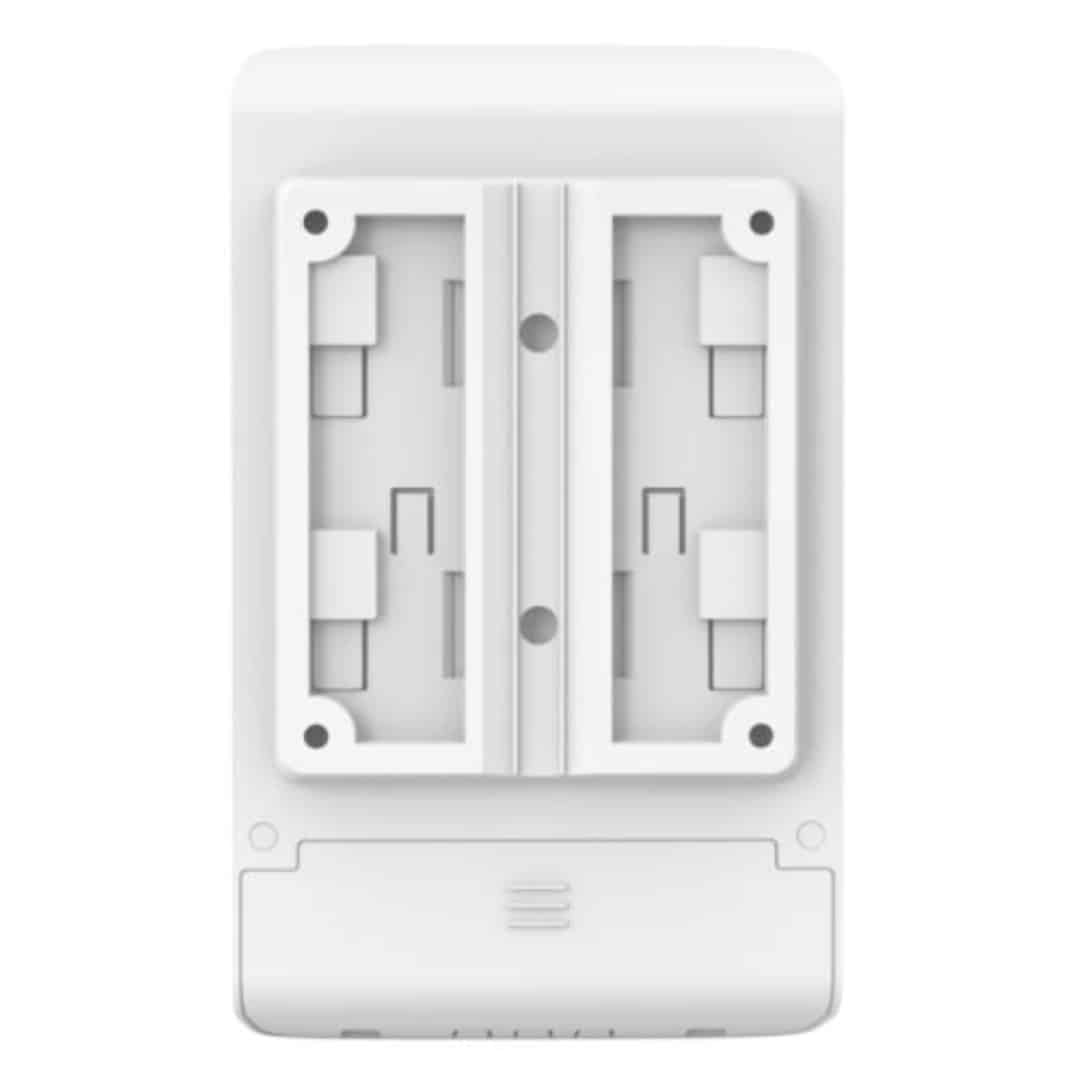

Easy Installation to Flexibly Fit Your Needs

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences

• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Access Control List (ACL): ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and helps you create the network regulations you need.
• QoS for Lag-Free Experiences: Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
• VLAN for Security and Flexible Management: VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

Software Defined Networking (SDN) with Cloud Access

Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable networkall controlled from a single interface.

Specifications:

• Rackmountable: No
• Managed: Smart
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Ports & Power Features:
  • 1 x Gigabit RJ45 PoE In Port (compliance with 802.3af/at/bt)
  • 4 x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at PoE)
  • PoE Power Budget:
    • 64 W when powered by 802.3bt Type 4 (90 W)
    • 44 W when powered by 802.3bt Type 3 (60 W)
    • 19 W when powered by 802.3at
    • 6 W when powered by 802.3af
• Performance:
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • Mac Address Table: 8k
  • Jumbo Frame: 9 KB
• Additional Features:
  • Fanless
  • Mounting Options: Wall or Pole Mount
  • Automatic Device Discovery
  • Batch Configuration & Firmware Upgrading
  • Intelligent Network Monitoring & Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
• Quality of Service (QoS):
  • Priority Scheduling: 802.1p CoS/DSCP priority
  • Priority Queue Configuration: 8 priority queues
  • Bandwidth Control & Smoother Performance
  • Storm Control
• Layer Features (L2 & L2+):
  • Routing: Static Routing
  • DHCP: Server, Relay & L2 Relay
  • Link Aggregation & Spanning Tree Protocol
  • Flow Control & Mirroring
  • 802.1ab LLDP/LLDP-MED
  • Multicast: IGMP Snooping, MLD Snooping, Multicast Filtering
• VLAN:
  • VLAN Group: Max. 4K VLAN Groups
  • Protocol: 802.1Q tag VLAN, MAC VLAN, Voice VLAN
• Access Control:
  • ACL: Support up to 230 entries, Time-based, MAC, IP, and Combined ACL
  • AAA, 802.1X, DoS Defend
  • Port Security: Static/Dynamic/Permanent
  • Secure Web Management: HTTPS with SSLv3/TLS 1.2
• Management:
  • Omada App: Cloud-based or Software Controller
  • Zero-Touch Provisioning
  • CLI Management: Telnet, SNMP v1/v2c/v3, RMON, SNMP Trap
  • Dual Image & Dual Configuration
  • CPU Monitoring & Cable Diagnostics
  • SNTP
• Environment:
  • Operating Temperature: 0C ~ 40C
  • Storage Temperature: -40C ~ 70C
  • Operating Humidity: 10% ~ 90% RH non-condensing
  • Storage Humidity: 5% ~ 90% RH non-condensing
• Package Contents:

  • SG2005P-PD Switch

  • Mounting Kits

  • Installation Guide

  • Package Type: Retail

  • Package Weight: 0.4900 kg

  • Warranty: Limited Lifetime
