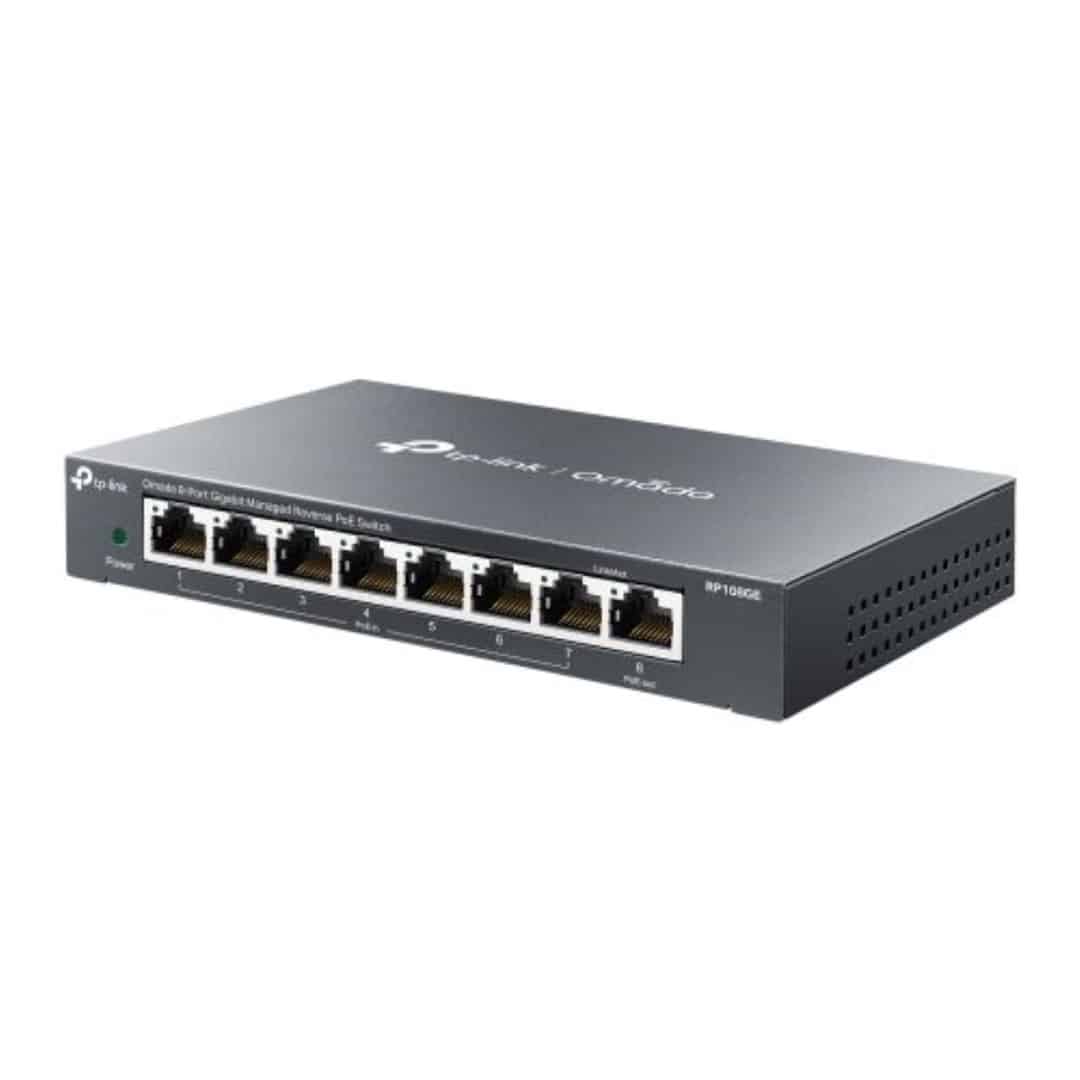

8-Port Gigabit Managed Reverse PoE Switch

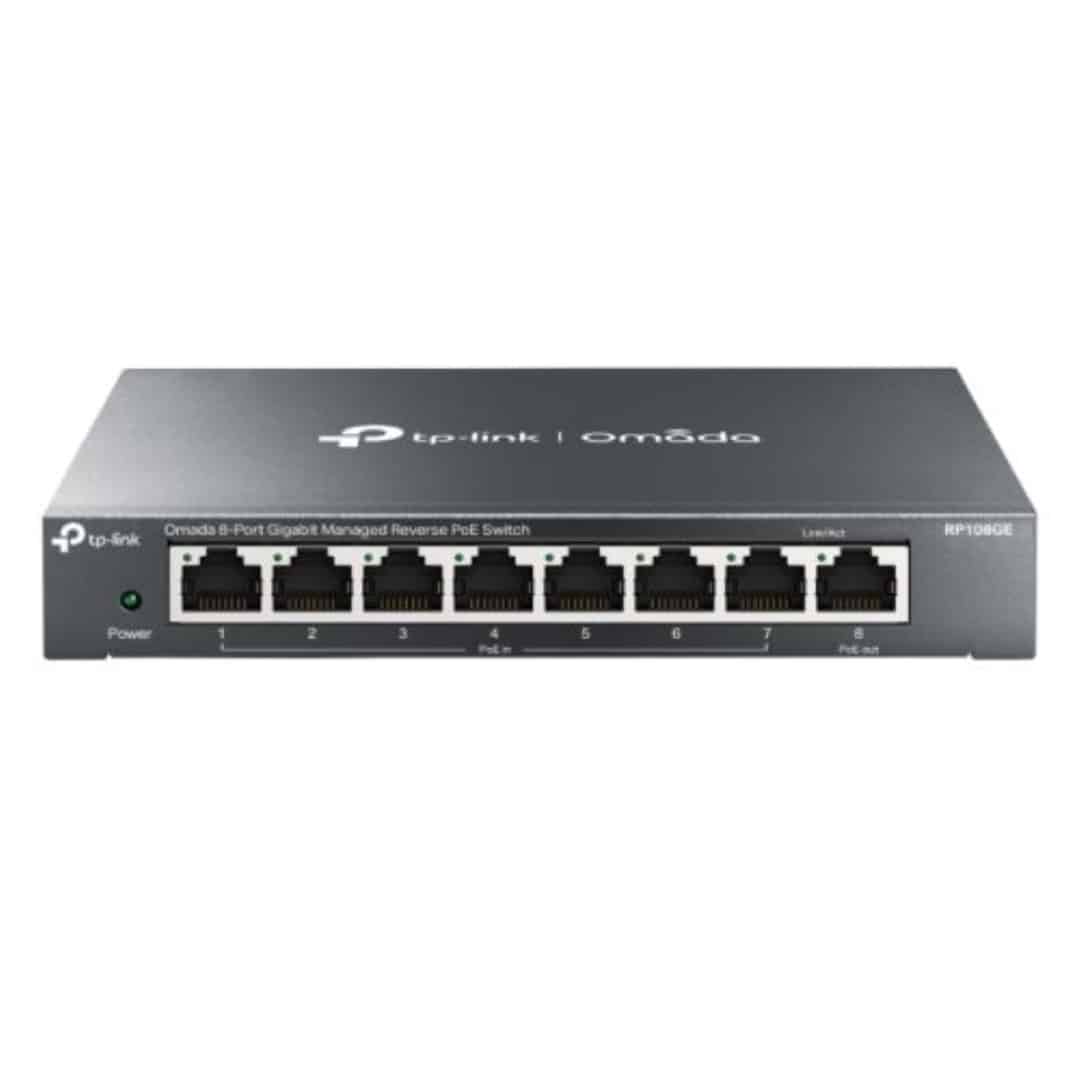

• 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
• 1 DC output port that supports both 5V and 12 V voltage switching
• Durable metal casing of superior quality and professional appearance
• Intelligent management via a web user interface and downloadable utility
• Green technology reduces power consumption

What This Product Does

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outletslowering deployment costs and simplifying installation for PoE-capable devices.

Specifications:

• Rackmountable: No
• Managed: Yes
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Ports & Power Features:
  • 7 Passive PoE-in RJ45 Ports:
    • 10/100/1000Mbps Auto-Negotiation
    • Voltage: 24/48 V (mixture is not supported)
    • Power Pin of Ethernet Cable: 4/5+ 7/8-
  • 1 Passive PoE-out RJ45 Port:
    • 10/100/1000Mbps Auto-Negotiation
    • Voltage: Depending on input voltage of PoE-in ports
    • Power Pin of Ethernet Cable: 4/5+ 7/8-

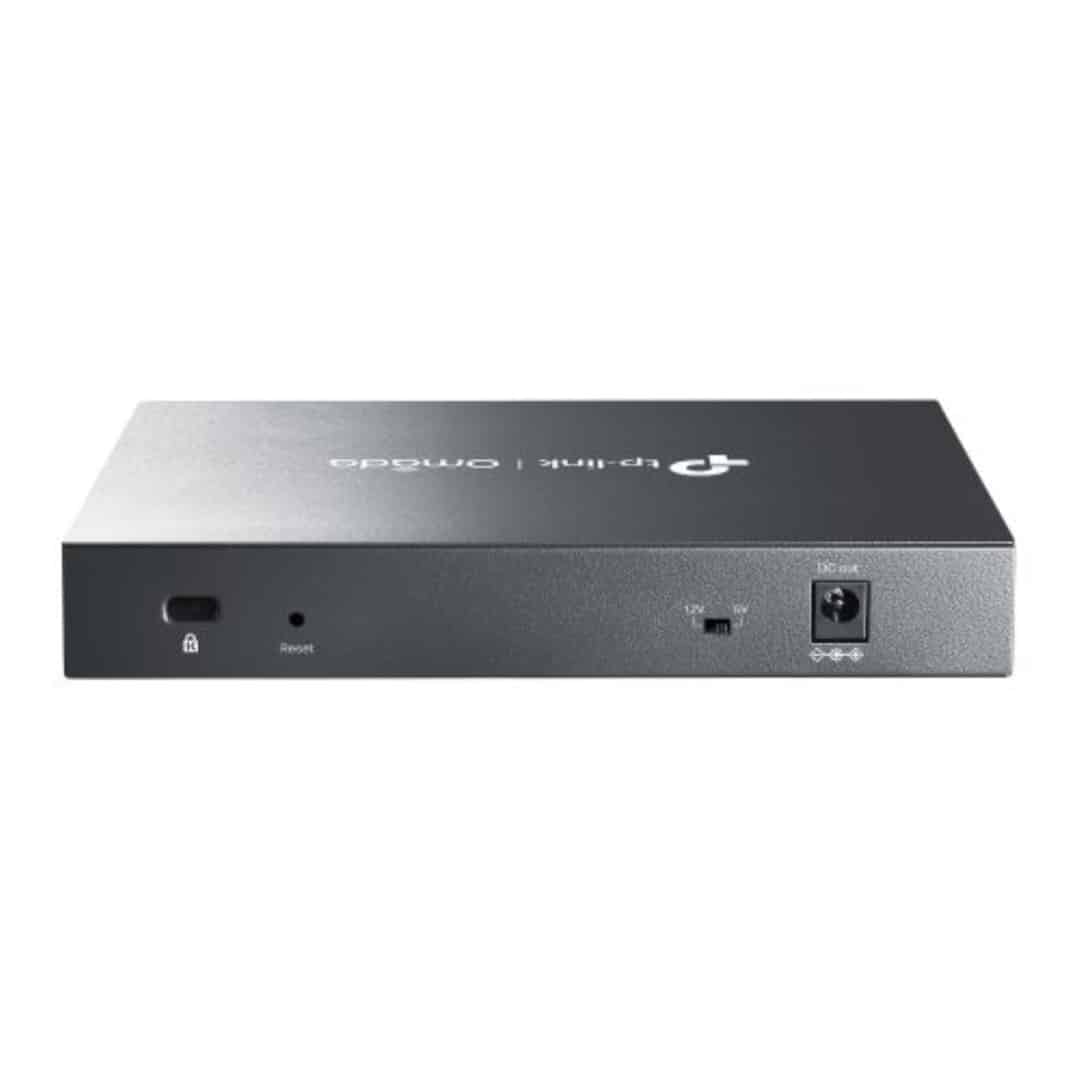

  • 1 DC Output Port:
    • Voltage: 5/12 V
• Performance:
  • Switching Capacity: 16 Gbps
  • Packet Forwarding Rate: 11.9 Mbps
  • Mac Address Table: 4K
  • Jumbo Frame: 16 KB
• Additional Features:
  • Quality of Service (QoS):
    • Supports Port-based/802.1p/DSCP priority
    • Supports 4 priority queues
    • Rate Limit
    • Storm Control
  • Layer Features (L2):
    • IGMP Snooping V1/V2/V3
    • Static Link Aggregation
    • Port Mirroring
    • Cable Diagnostics
    • Loop Prevention
  • VLAN:
    • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • Management:
    • Intelligent management via a web user interface
    • Downloadable utility
• Environment:
  • Operating Temperature: 0C ~ 40C (32F ~ 104F)
  • Storage Temperature: -40C ~ 70C (-40F ~ 158F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
• Package Contents:

  • TL-RP108GE

  • Power Cord

  • Installation Guide

  • Rubber Feet

  • Package Type: Retail

  • Package Weight: 0.4300 kg

  • Warranty: 2 Year
