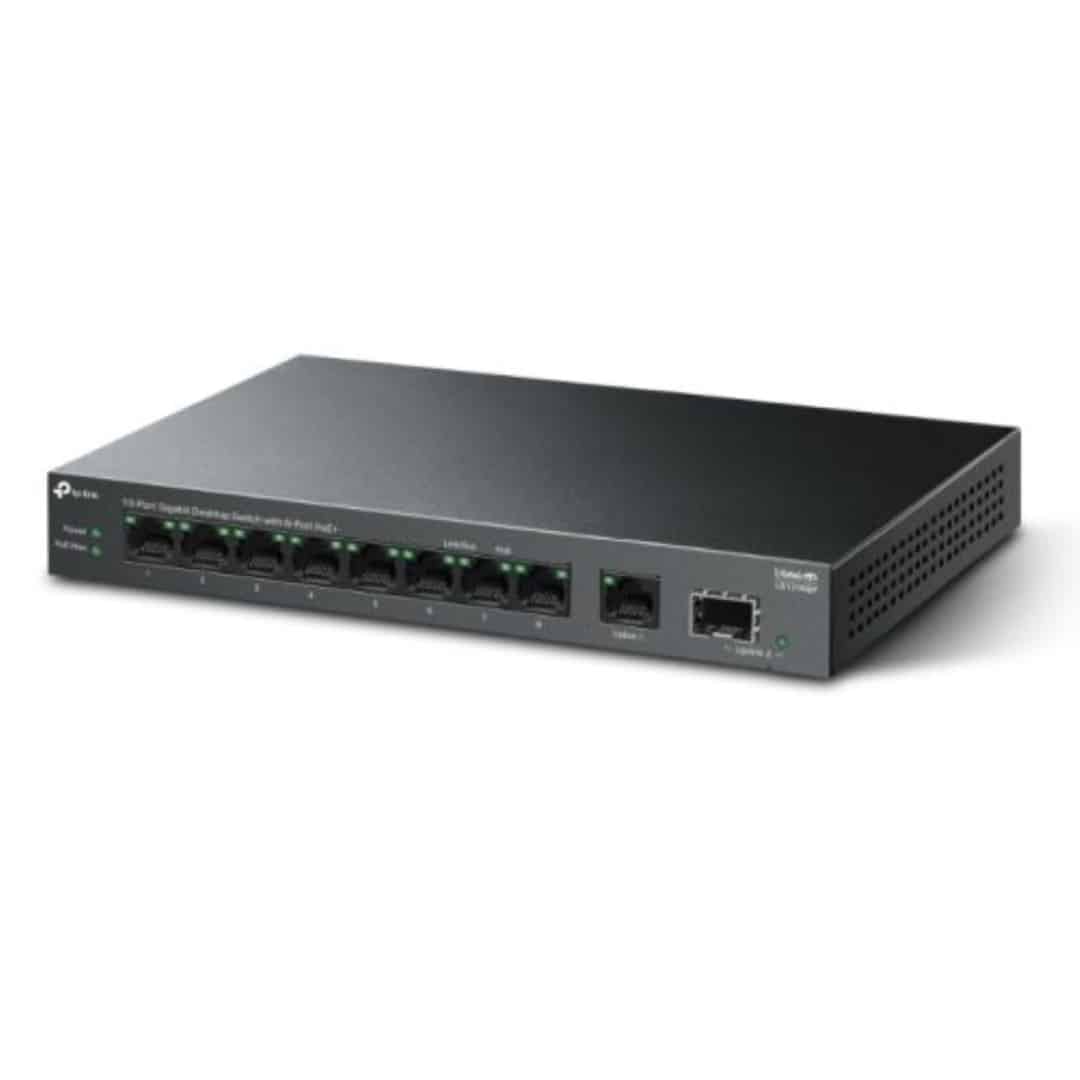

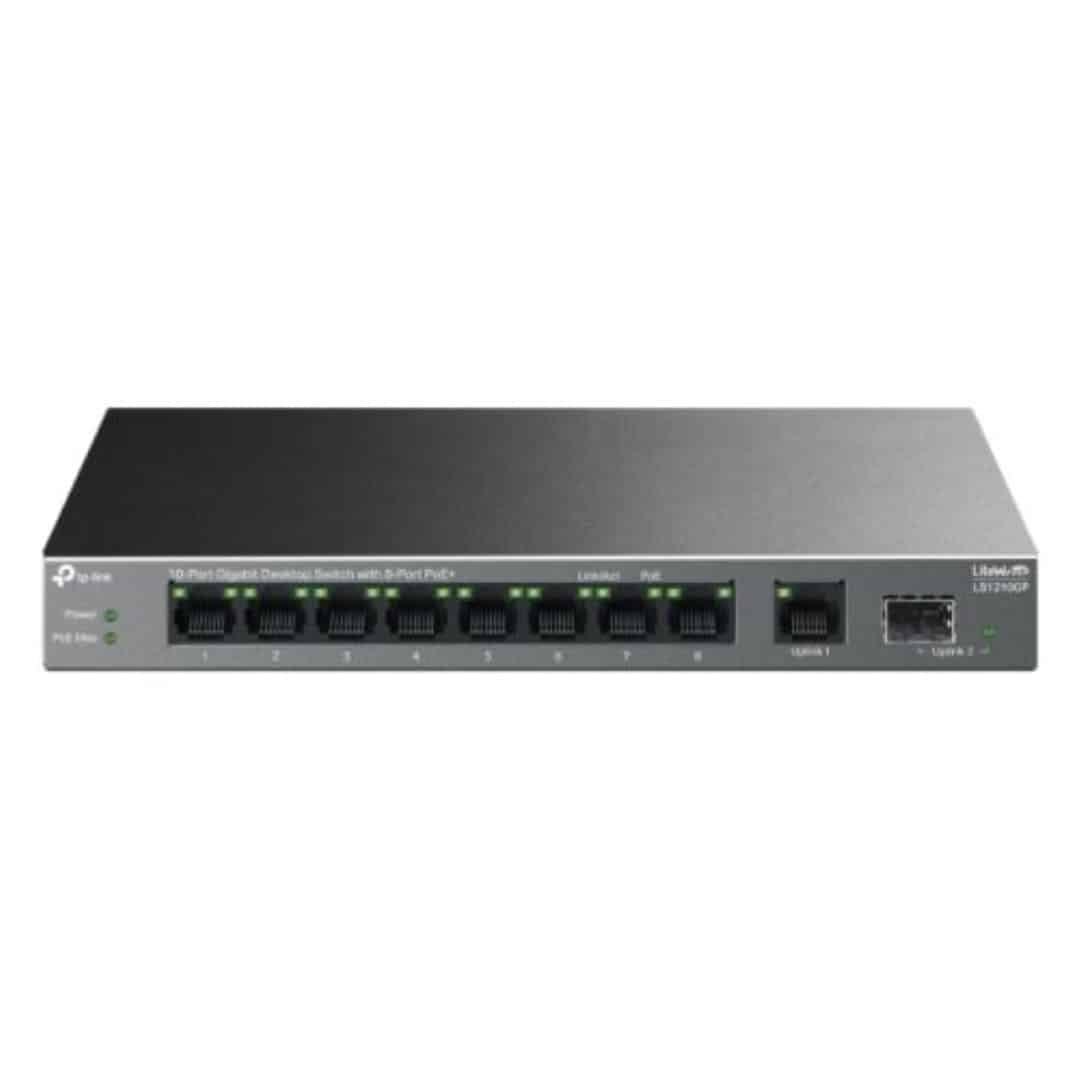

TP-LINK (LS1210GP) 10-Port Gigabit Desktop LiteWave Switch with 8-Port PoE+ GB SFP Port

10-Port Gigabit Desktop Switch with 8-Port PoE+

• Full Gigabit Ports:9x gigabit auto-negotiation RJ45 Ethernet ports and 1x gigabit SFP port provide up to 20 Gbps switching capacity.
• 61 W PoE Budget:Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
• Up to 250 m PoE Transmission:With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices.
• Traffic Separation for Higher Security:Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
• Plug and Play:Simply plug and play for instant connectivity with no configuration required.
• Silent Operation:Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design:Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications:

• Rackmountable: No
• Managed: No
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s):
  • 9 x 10/100/1000 Mbps RJ45
  • 1 x Gigabit SFP Port
• PoE Features
  • PoE Ports (RJ45):
    • Standard: 802.3at/802.3af compliant
    • PoE Ports: Ports 18, up to 30 W PoE output per port
    • PoE Power Budget: 61W
• Performance
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • Mac Address Table: 4K
  • Jumbo Frame: 16 KB
• Additional Features
  • Extend Mode Button: Ports 14, up to 250m PoE power & data transmission
  • Isolation Mode Button: Ports 18
  • PoE Auto Recovery Button: Ports 18
  • Compatibility:
    • IEEE 802.3af/at compliant PDs
    • IEEE802.3x Flow Control
    • 802.1p/DSCP QoS
    • IGMP Snooping
    • Green Technology
  • Security:
    • Physical security lock
• Environment
  • Operating Temperature: 040C (32104F)
  • Storage Temperature: -4070C (-40158F)
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing
• Package Contents

  • LS1210GP

  • Power Adapter

  • Installation Guide

  • Package Type: Retail

  • Package Weight: 1.2300 kg

  • Warranty: 3 Years
