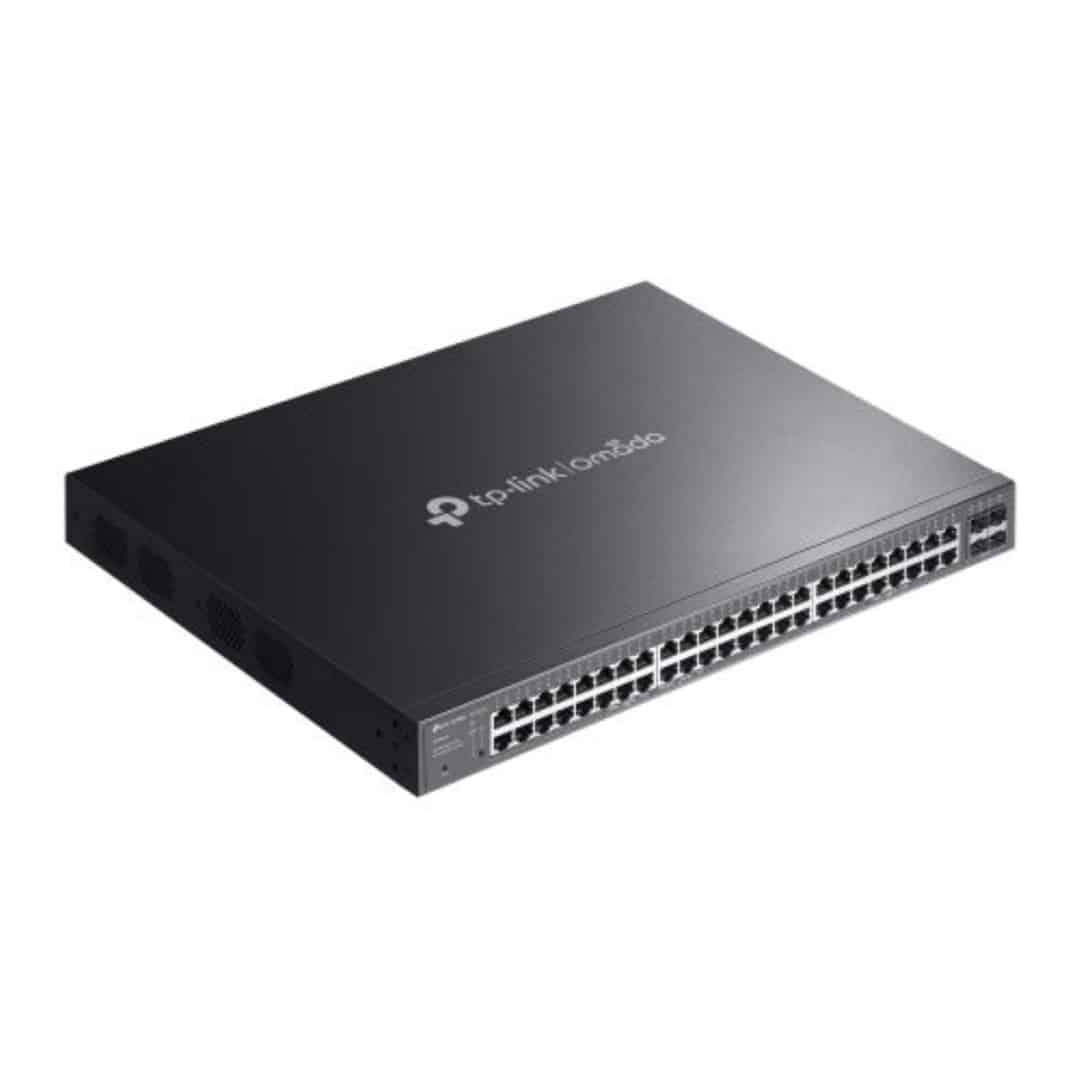

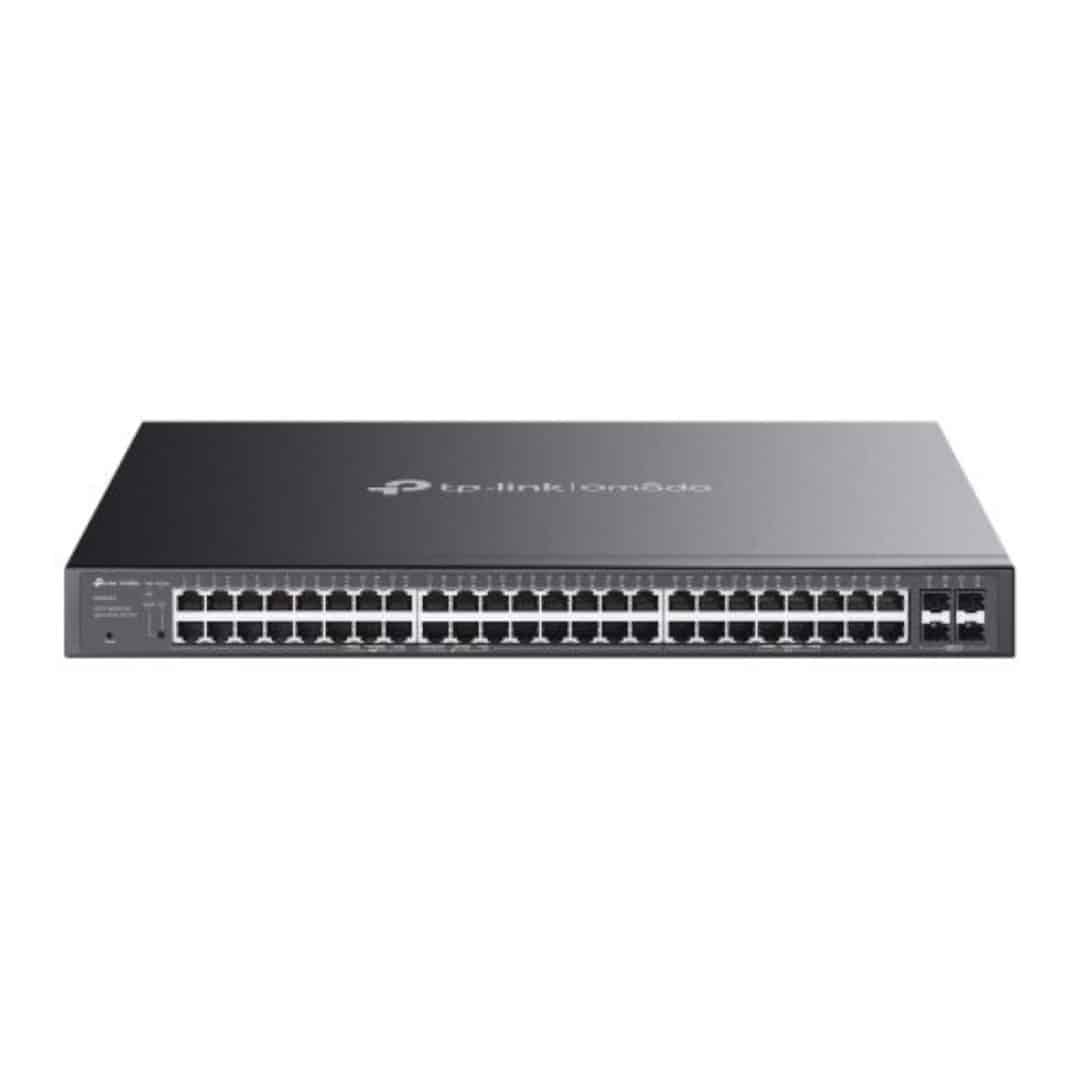

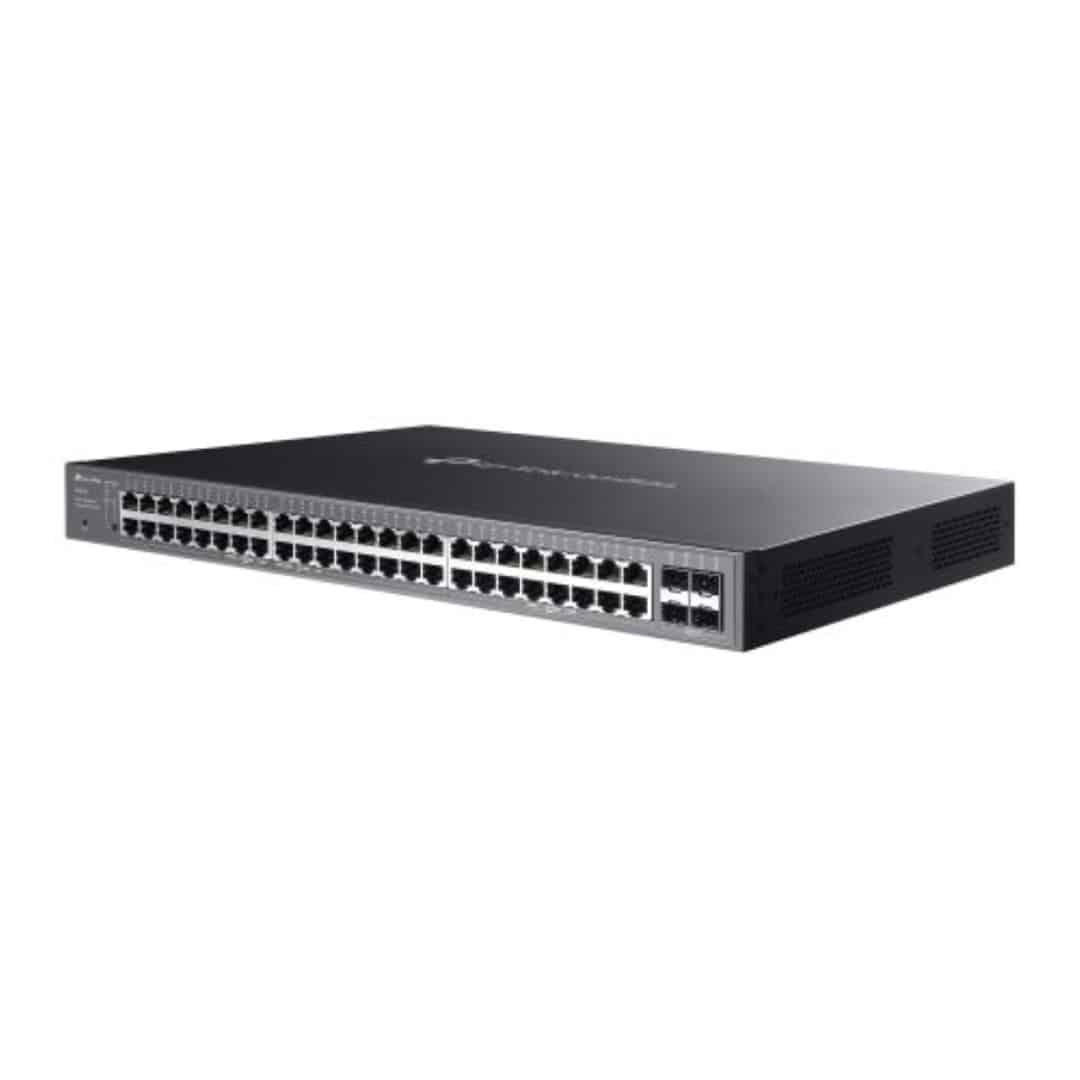

TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+ Centralized Management Rackmountable

Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

• 32x Gigabit 802.3af/at PoE+ ports
• 16x Gigabit non-PoE RJ45 ports and 4x Gigabit SFP slots
• 230 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for quiet operation
• Durable metal casing and rackmountable design

Specifications:

• Rackmountable: Yes

• Managed: Smart

• Number of Ports: 52

• Max RJ45 Transfer Rate: 10/100/1000 Mbps

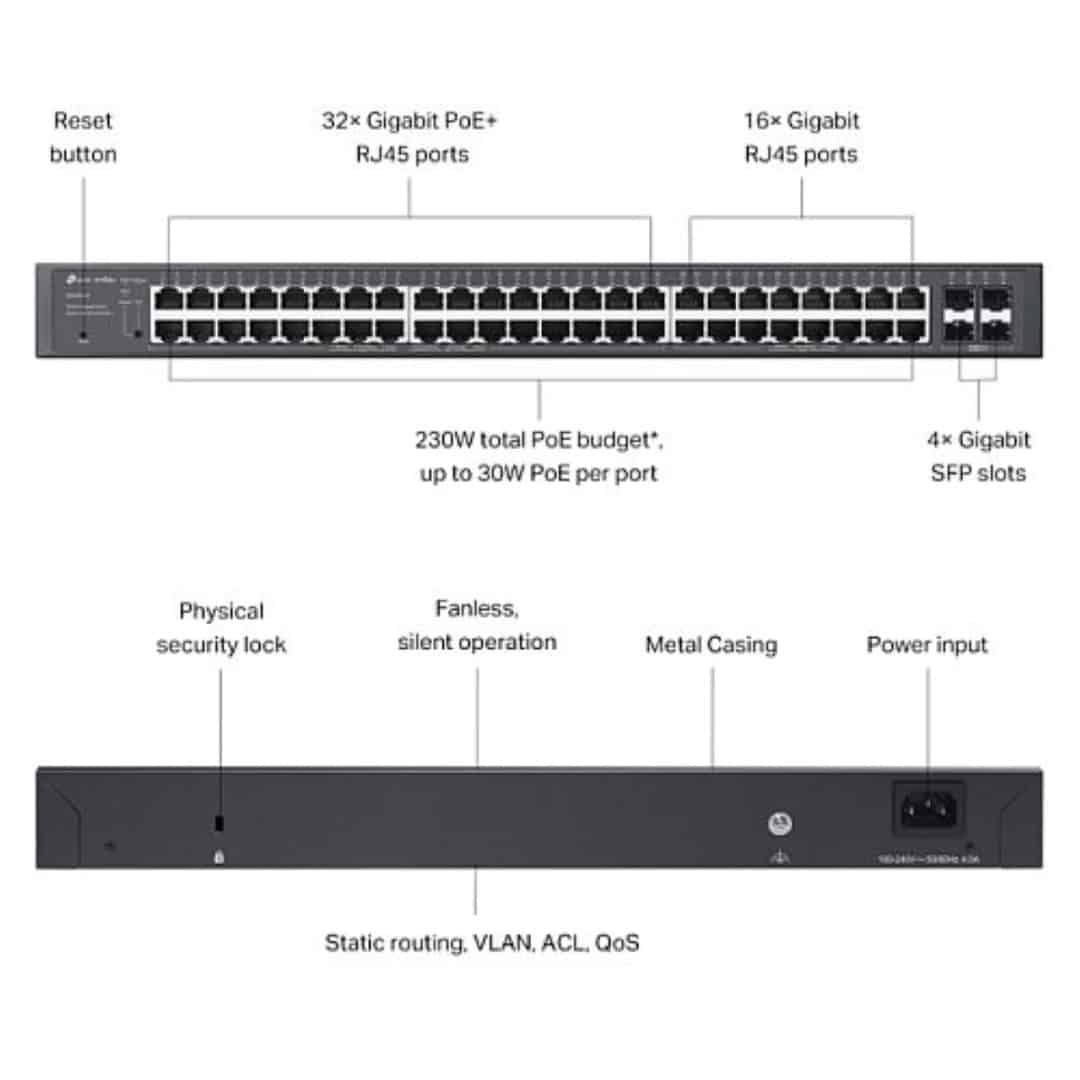

• Interface(s):

  • 32 x Gigabit PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 16 x Gigabit non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 x Gigabit SFP Slots

• PoE Ports (RJ45):

  • PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
  • PoE Power Budget: 230 W

• Switching Capacity: 104 Gbps

• Power Supply: 100-240 V AC~50/60 Hz

• Dimensions: 440 x 330 x 44 mm

• Mac Address Table: 16 K

• Packet Forwarding Rate: 77.37 Mpps

• Jumbo Frame: 9 KB

• Quality of Service (QoS):

  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Scheduling Modes: SP (Strict Priority), WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control: Port/Flow-based Rating Limit
  • Smoother Performance
  • Storm Control: Multiple Control Modes (kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

• Layer Features:

  • L2 and L2+:

    • 16 IP Interfaces
    • Static Routing
    • DHCP Server, DHCP Relay, DHCP L2 Relay
    • Static ARP, Proxy ARP, Gratuitous ARP
    • Link Aggregation
    • Spanning Tree Protocol
    • Loopback Detection
    • 802.3x Flow Control
    • Mirroring
    • DLDP
    • 802.1ab LLDP/LLDP-MED

  • L2 Multicast:

    • 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • Limited IP Multicast (256 profiles, 16 entries per profile)

• VLAN:

  • Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN

• Access Control:

  • Up to 230 entries
  • Time-based ACL
  • MAC ACL, IP ACL, Combined ACL
  • IPv6 ACL
  • Rule Operation: Permit/Deny
  • Policy Action
  • ACL Rules Binding

• Security:

  • IP-MAC-Port Binding
  • AAA
  • 802.1X
  • IP/IPv6-MAC Binding
  • IP Source Guard
  • IPv6 Source Guard
  • DoS Defend
  • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure CLI management with SSHv1/SSHv2
  • IP/Port/MAC-based access control

• Management:

  • Omada App, Cloud-Based & Software Controller
  • Zero-Touch Provisioning (Requires Omada Cloud-Based Controller)
  • Management Features:
    • Web-based GUI
    • Command Line Interface (CLI) via Telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log

• Environment:

  • Operating Temperature: 0C to 40C
  • Storage Temperature: -40C to 70C
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing

• Package Contents:

  • SG2452LP Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

• Warranty: Limited Lifetime
