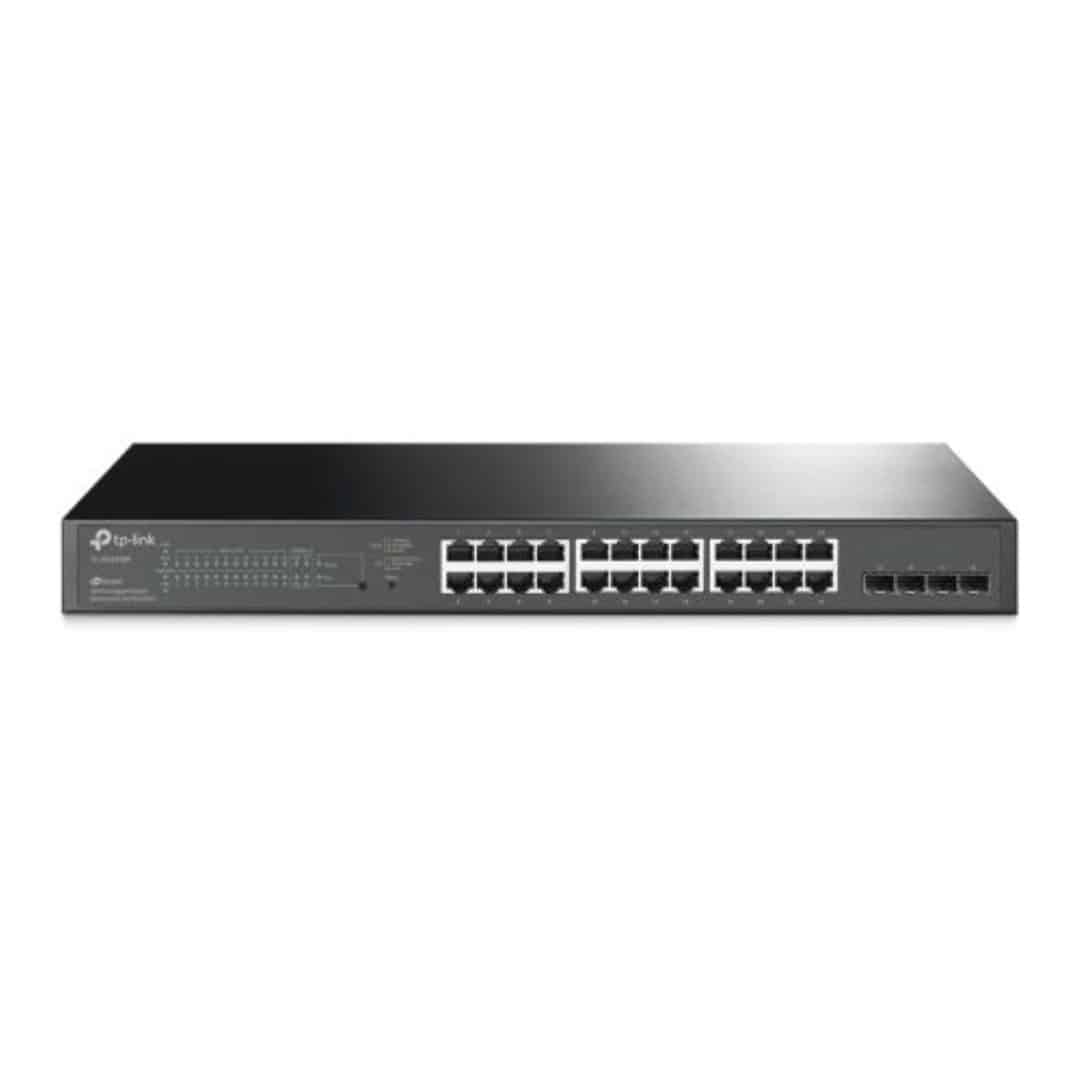

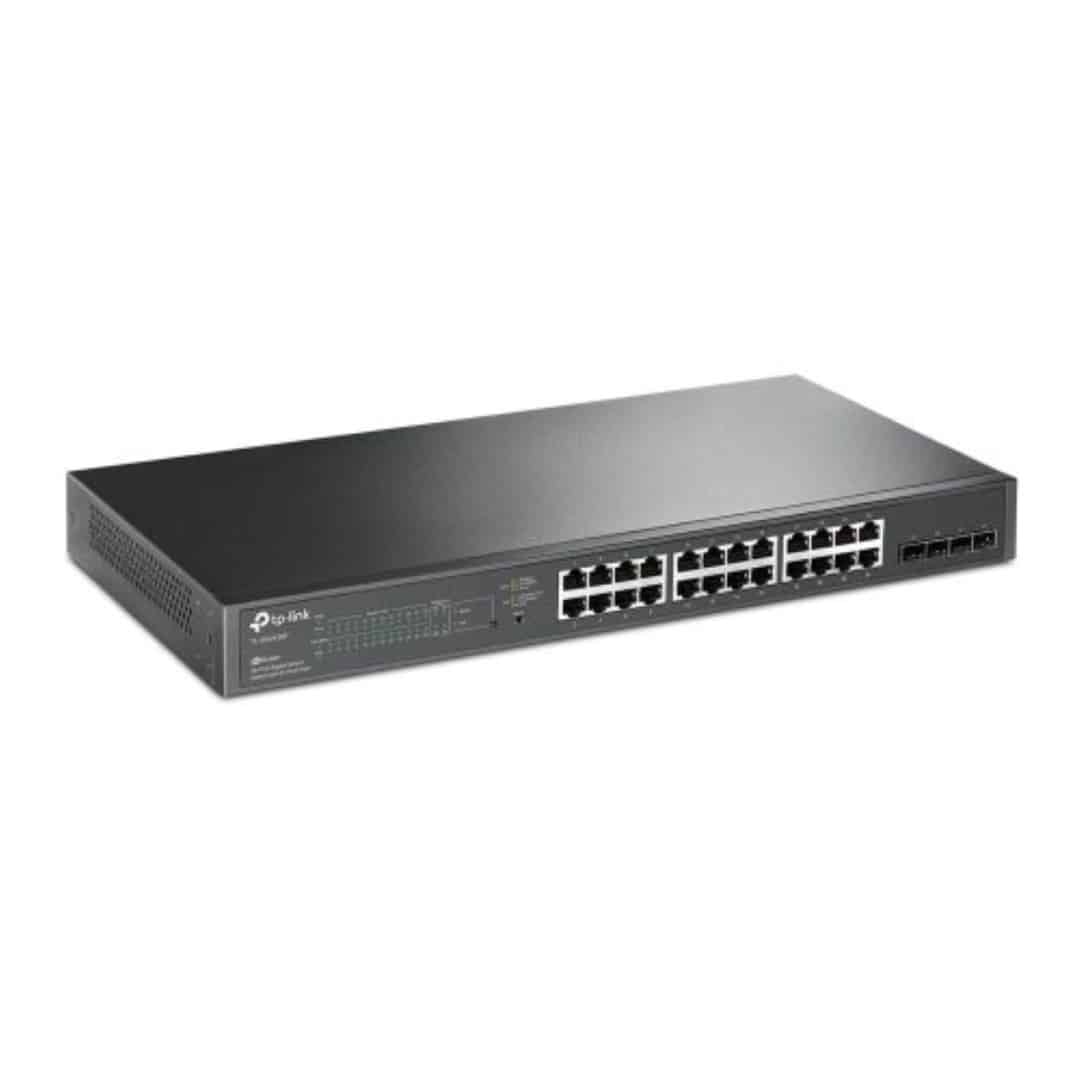

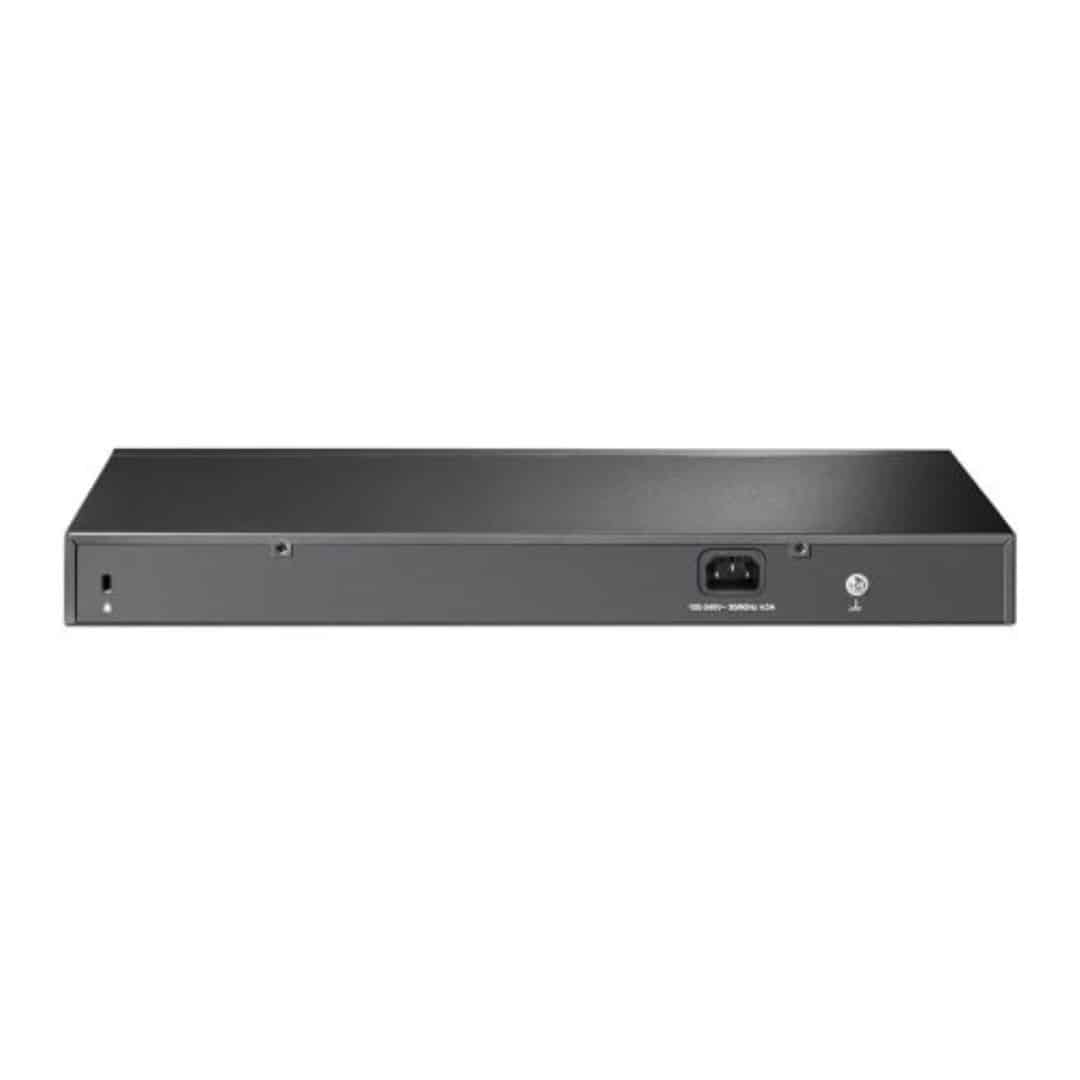

TP-LINK (SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ 4 GB SFP Slots Rackmountable

JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

• 250 W PoE Budget:24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
• Full Gigabit Ports:24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN:Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management:Cloud access and Omada app for ultra convenience and easy management.
• Static Routing:Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies:IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications:L2/L3/L4 QoS and IGMP snooping.
• IPv6:IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

Software Defined Networking (SDN) with Cloud Access

Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network – all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications:

• Rackmountable: Yes

• Managed: Smart

• Number of Ports: 28

• Max RJ45 Transfer Rate: 10/100/1000 Mbps

• Interface(s):

  • 24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 4 x Gigabit SFP Slots

• PoE Ports (RJ45):

  • PoE+ Ports: 24 Ports
  • Power Supply: 250 W
  • Max Power Consumption:
    • 32.1 W (110 V/60 Hz with no PD connected)
    • 308.6 W (110 V/60 Hz with 250 W PD connected)

• Bandwidth: 56 Gbps

• Power Supply: PoE

• Mac Address Table: 8K

• Packet Forwarding Rate: 41.7 Mpps

• Jumbo Frame: 9 KB

• Quality of Service (QoS):

  • Supports 802.1p CoS/DSCP priority
  • Supports 8 priority queues
  • Queue scheduling modes: SP, WRR, SP+WRR
  • Port/Flow-based Rate Limiting
  • IPv6 QoS
  • Voice VLAN

• Layer Features:

  • Static Routing
  • DHCP Relay, DHCP Server
  • IGMP Snooping V1/V2/V3
  • Spanning Tree (STP/RSTP/MSTP)
  • BPDU Filtering/Guard
  • TC/Root Protect
  • Loopback detection
  • 802.3x Flow Control
  • LLDP, LLDP-MED
  • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

• VLAN:

  • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
  • MAC/Protocol-based VLAN

• Access Control:

  • L2L4 package filtering
  • MAC ACL
  • IP ACL
  • Combined ACL
  • IPv6 ACL

• Security:

  • AAA
  • Port Security
  • DHCP Snooping
  • IP-MAC-Port Binding
  • IPv6-MAC-Port Binding
  • ARP Inspection
  • 802.1x and Radius Authentication
  • SSH v1/v2
  • SSL v3/TLSv1.2
  • Broadcast/Multicast/Unknown-unicast Storm Control
  • DoS Defend

• Management:

  • Omada App
  • Omada Cloud-Based Controller
  • Centralized Management
  • Web-based GUI and CLI management
  • SNMP v1/v2c/v3 (public MIBs and TP-Link private MIBs)
  • RMON (1, 2, 3, 9 groups)
  • CPU Monitoring
  • Port Mirroring
  • Firmware Upgrade: TFTP & Web
  • System Diagnose: VCT
  • SYSLOG & Public MIBs
  • Dual Image
  • EEE

• Environment:

  • Operating Temperature: 050C (32122F)
  • Storage Temperature: -4070C (-40158F)
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing

• Package Contents:

  • TL-SG2428P Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

• Warranty: Limited Lifetime
