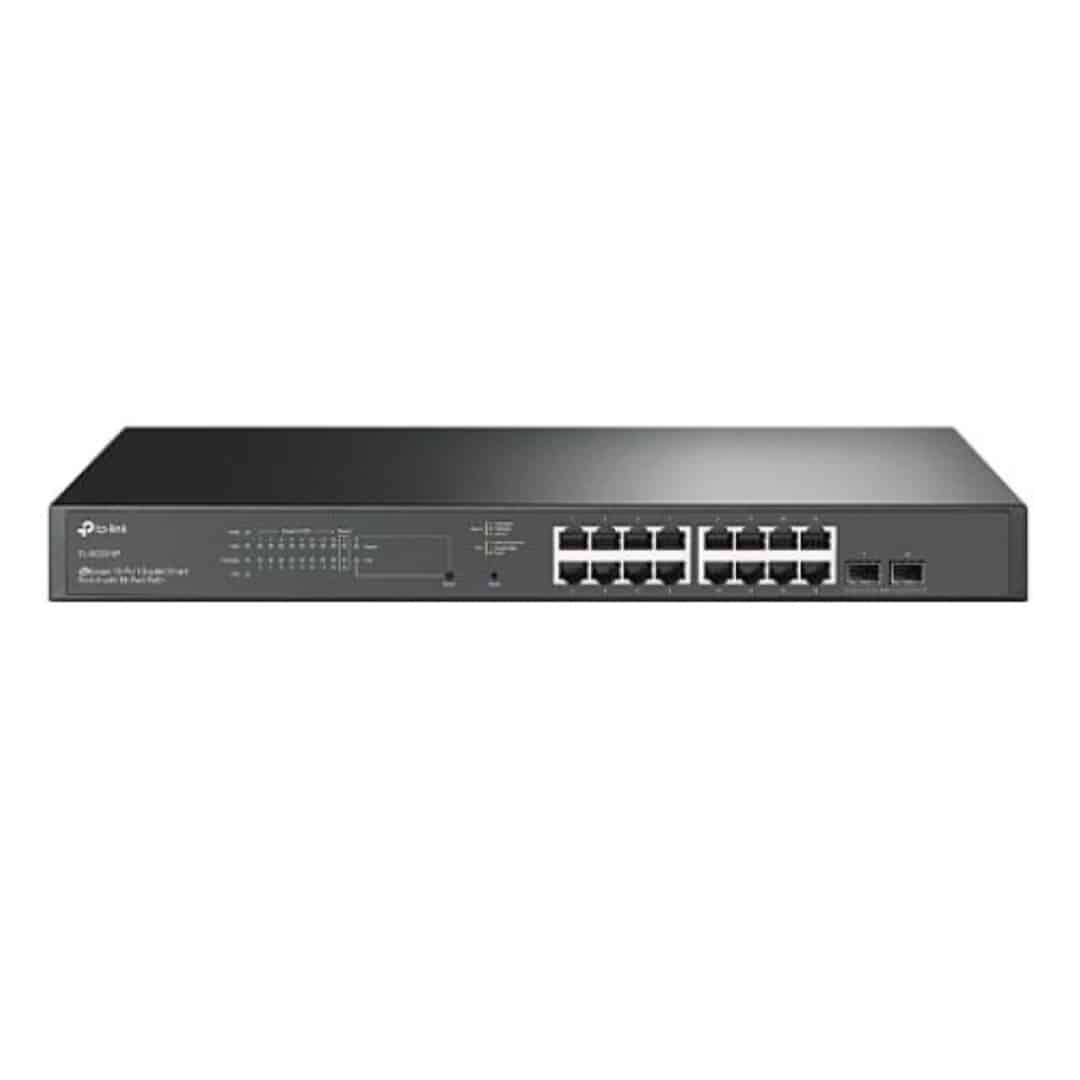

TP-LINK (SG2218P) JetStream 18-Port Gigabit Smart Switch w/ 16-Port PoE+ 2x SFP IPv6 Centralised Management

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

• 150 W PoE Budget:16x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports:16x gigabit PoE+ ports and 2 gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN:Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management:Cloud access and Omada app for ultra convenience and easy management.
• Static Routing:Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies:IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications:L2/L3/L4 QoS and IGMP snooping.
• IPv6:IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specifications:

• Rackmountable: Yes

• Managed: Smart

• Number of Ports: 18

• Max RJ45 Transfer Rate: 10/100/1000 Mbps

• Interface(s):

  • 16 x 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)
  • 2 x Gigabit SFP

• PoE Ports (RJ45):

  • PoE+ Ports: 16 Ports
  • PoE Power Budget: 150 W

• Switching Capacity: 36 Gbps

• Power Supply:

  • 100-240 V AC, 50/60 Hz

• Mac Address Table: 8K

• Packet Forwarding Rate: 26.78 Mpps

• Jumbo Frame: 9 KB

• Additional Features:

  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule

• Quality of Service (QoS):

  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
  • Queue Weight Config
  • Bandwidth Control
  • Smoother Performance
  • Storm Control

• Layer Features:

  • L2 and L2+ Features:
    • 16 IP Interfaces
    • Static Routing
    • DHCP Server
    • DHCP Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    • Spanning Tree Protocol
    • Loopback Detection
    • Flow Control
    • Mirroring
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/LLDP-MED

• VLAN:

  • VLAN Group
  • 802.1Q Tagged VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN

• Access Control:

  • Support up to 230 entries
  • Time-Range
  • Time-based ACL
  • MAC ACL, IP ACL, Combined ACL, IPv6 ACL
  • Rule Operation: Permit/Deny
  • Policy Action
  • ACL Rules Binding

• Security:

  • AAA
  • 802.1X
  • IP/IPv6-MAC Binding
  • IP Source Guard
  • IPv6 Source Guard
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
  • Broadcast/Multicast/Unicast Storm Control
  • Port Isolation
  • Secure web management via HTTPS with SSLv3/TLS 1.2
  • Secure CLI management with SSHv1/SSHv2

• Management:

  • Omada App
  • Centralized Management
  • Cloud Access
  • Zero-Touch Provisioning
  • Web-based GUI
  • CLI via Telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log

• Environment:

  • Operating Temperature: 050C (32122F)
  • Storage Temperature: -4070C (-40158F)
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing

• Package Contents:

  • TL-SG2218P Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

• Warranty: Limited Lifetime
