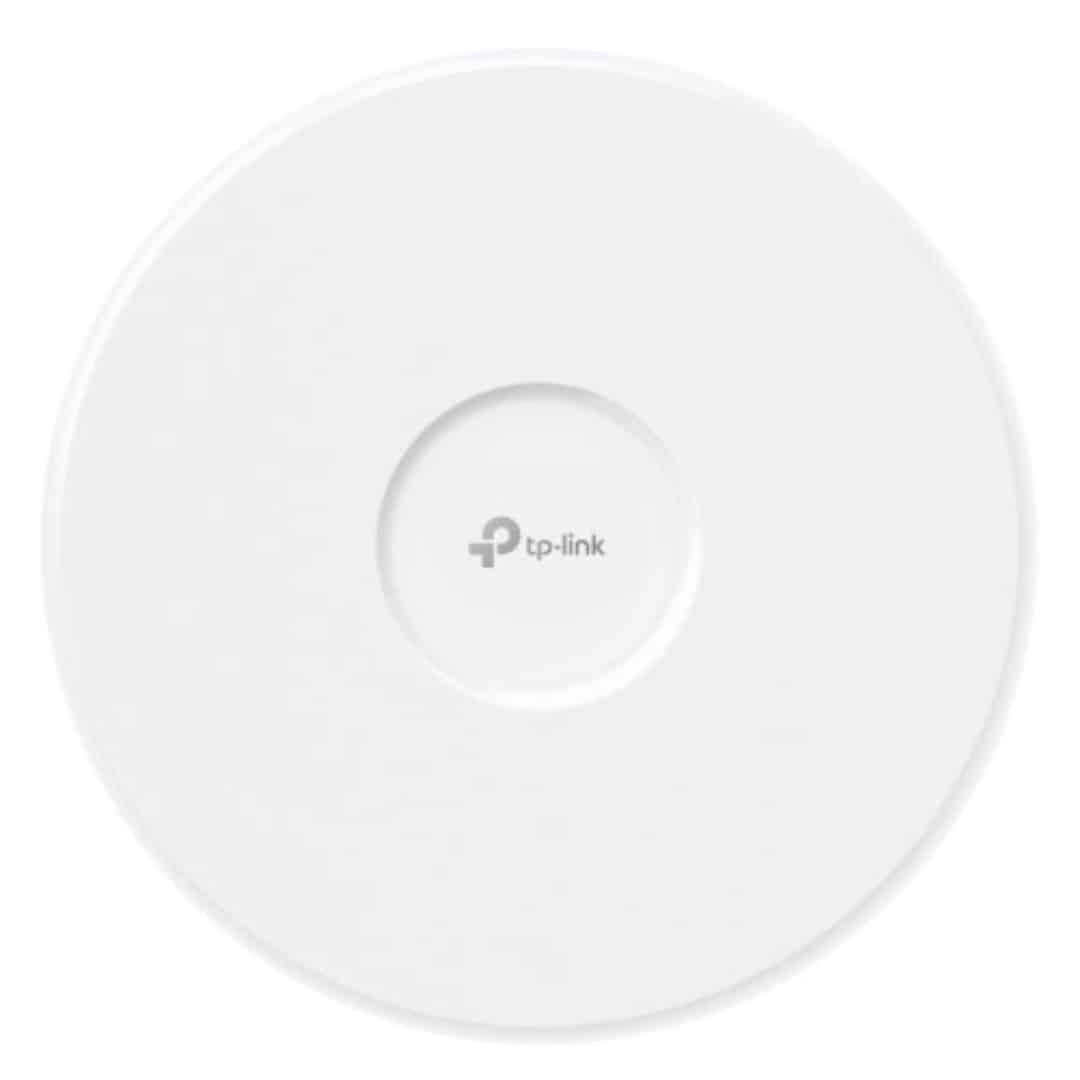

TP-LINK (EAP773) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point PoE++ 10GB Port Omada Mesh MLO Multi-RUs

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• BE9300 Tri-Band Wi-Fi 7:5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
• 1x 10G Port:Unlock the full potential of Wi-Fi 7.
• Clear 6 GHz Band:Brings cleaner and wider band resources to your Wi-Fi.
• 320 MHz Bandwidth:Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
• Low Latency and Interference:Multi-Link Operation, and Multi-RUs ensure high performance of your network.
• Advanced Functions:Supports centralized management, mesh, and AI roaming.
• 10G PoE++ Port:Boosts overall throughput and offers flexible deployment with a 10 Gbps PoE++ port.
• Auto Channel Selection and Power Adjustment:Boost WiFi performance and minimize interference for your network.
• Intelligent Power Management:Offers more reliable network operation for your business.
• Omada Mesh Technology:More flexible and convenient wireless deployment.
• Ultra-Thin Design:220 x 220 x 32.5 mm elegant design brings more flexibility.

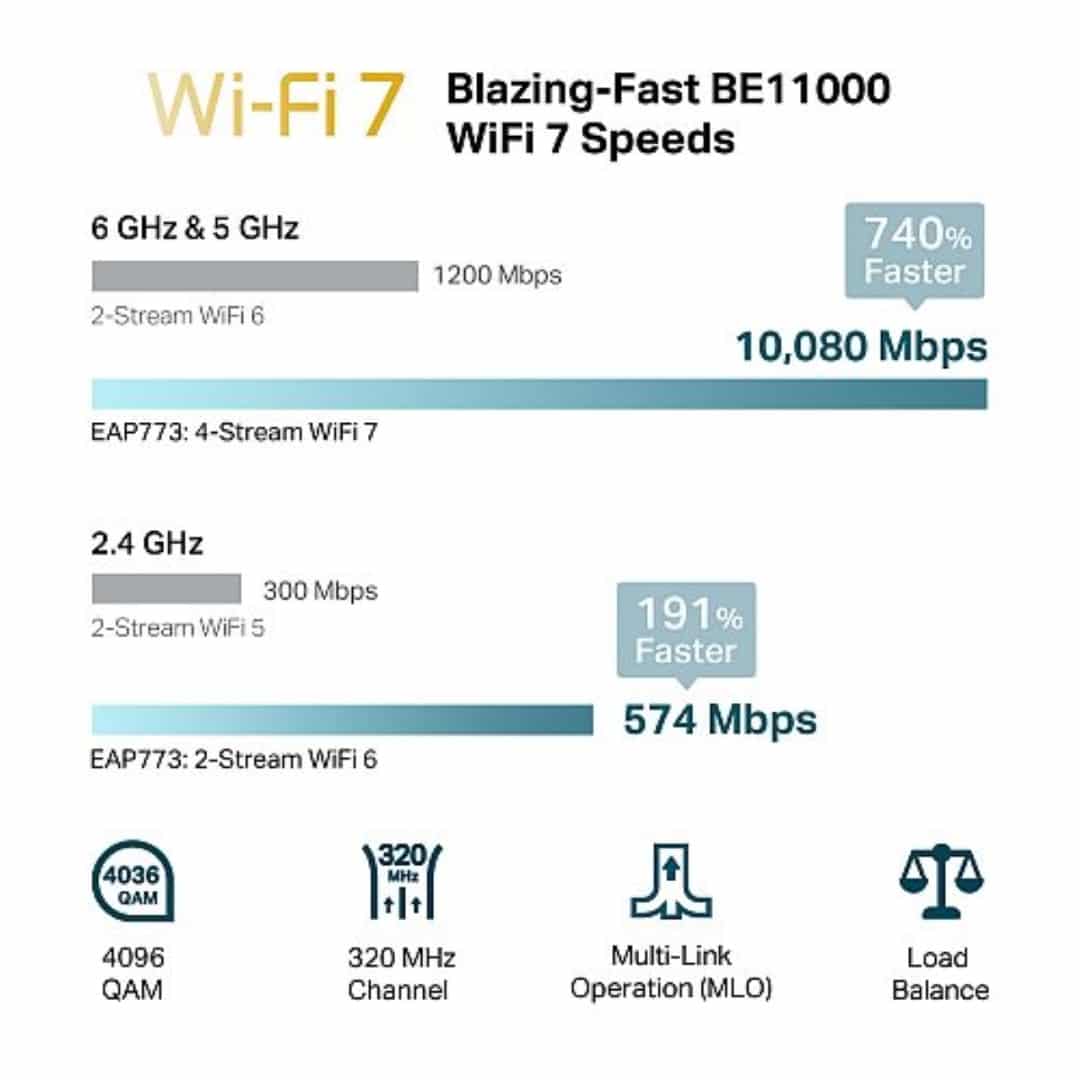

Supersized Throughput for Better Experiences

With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughout of EAP773 reaches up to 11 Gbps.

Higher Capacity for Increased Traffic Demands

WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability

EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.

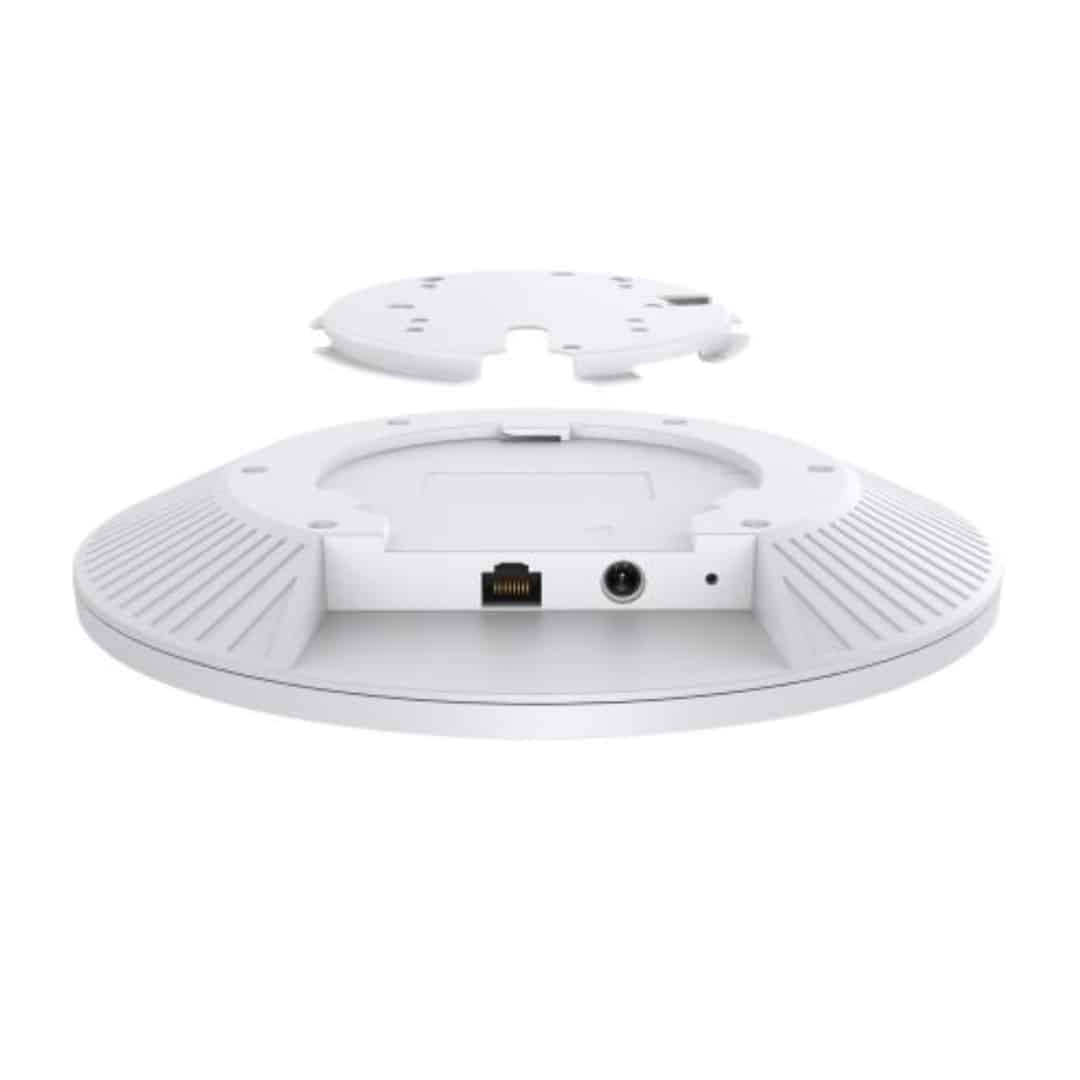

Optimized Wired Performance with 10G PoE++ Port

With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.

Auto Channel Selection and Power Adjustment

Provide powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

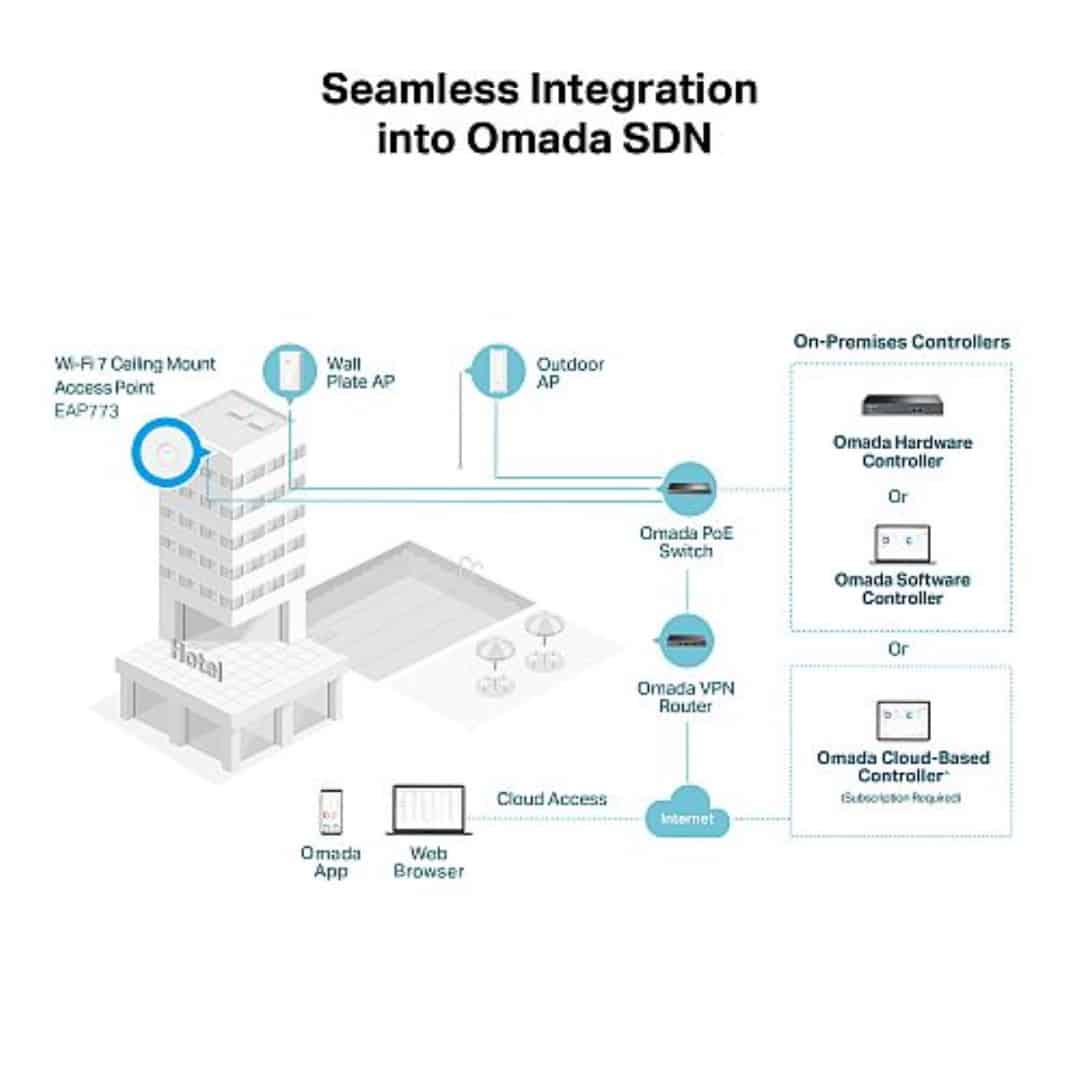

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable networkall controlled from a single interface. Experience total control at your fingertips.

Boosted Network Security

Secure Guest Network with up to 24 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Your Business with SMS Login

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Rogue AP Detection

Detect and mitigate rogue access points to protect your business network from security holes or other threats anywhere, anytime.

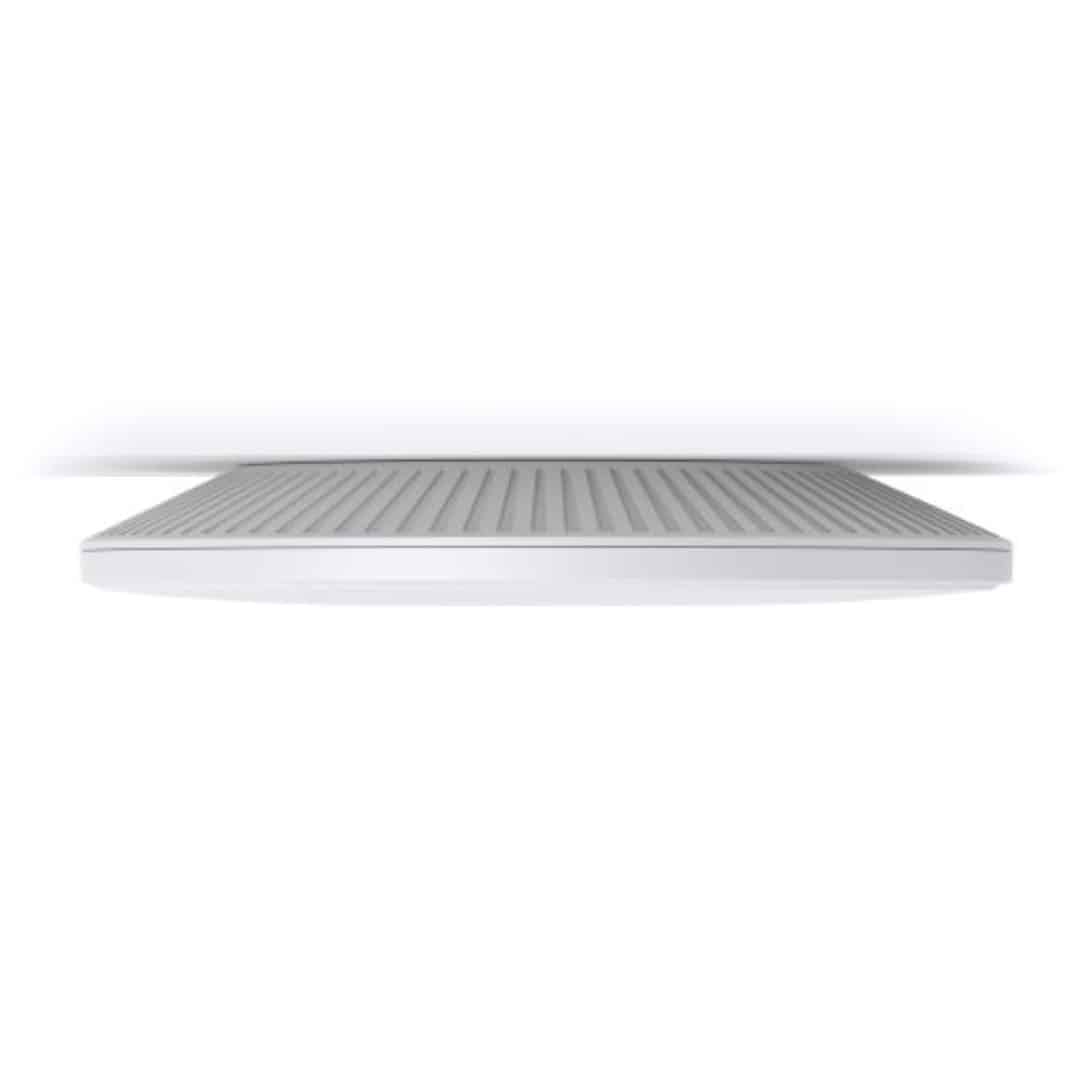

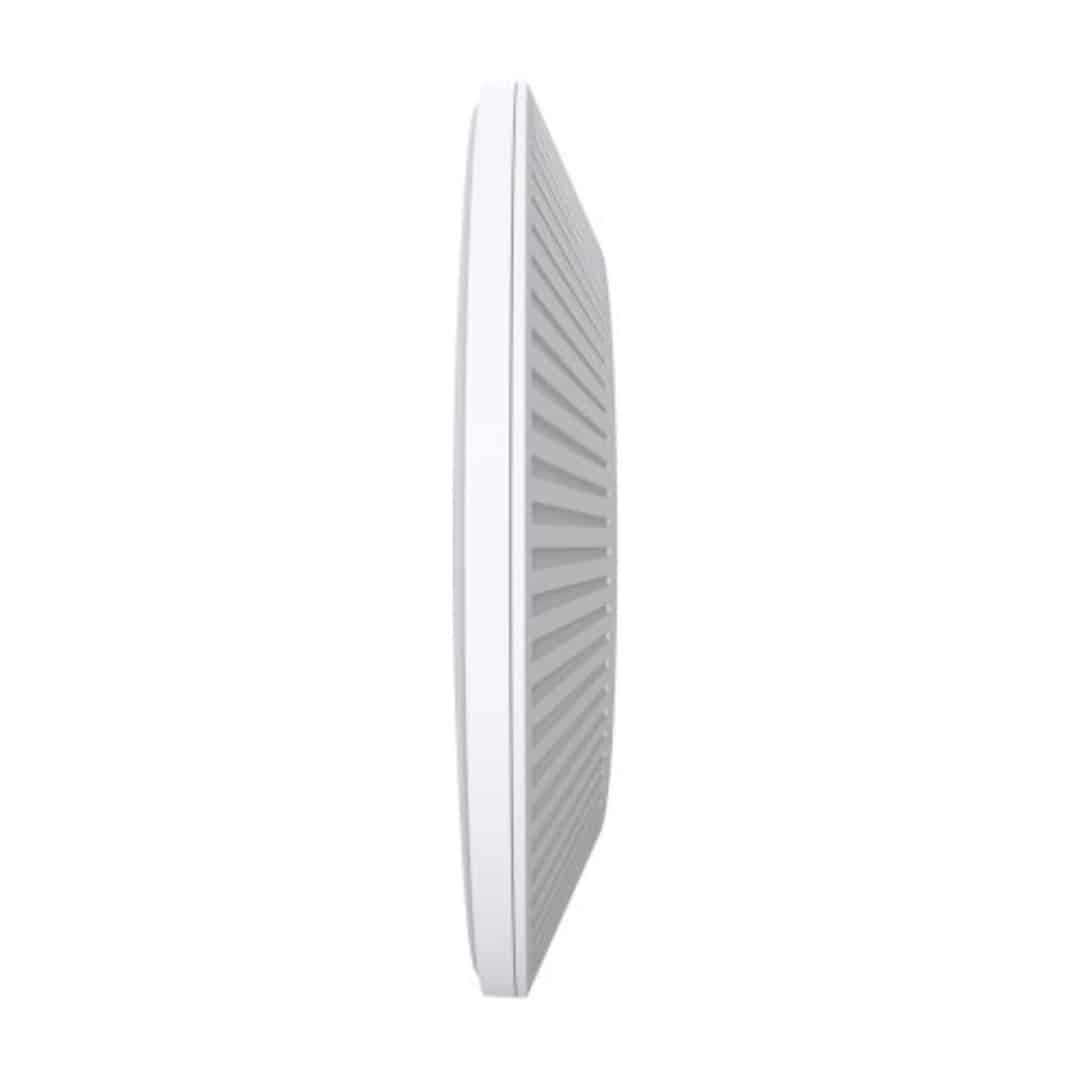

Ultra-Thin Design for Flexible Deployment

The overall design of EAP773 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Specifications:

• Primary Function: Access Point

• Bands: Tri Band

• Wi-Fi Rating: BE9300

• Max Single Band Wi-Fi Rate:

  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 4320 Mbps
  • 6 GHz: Up to 5760 Mbps

• Max Wired Transfer Rate: 10 Gbps

• Interface(s): 1 x 10G Ethernet Port

• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be

• Antenna(s):

  • 2.4 GHz: 2x 3.0 dBi
  • 5 GHz: 2x 3.0 dBi
  • 6 GHz: 2x 3.0 dBi

• Button(s): Reset

• Power Supply:

  • 802.3bt PoE or 12V/2.5A DC (Note: Power Adapter not included)

• Power Consumption:

  • 25.94W (802.3bt, full functionality)
  • 22.57W (12/2.5A, full functionality)
  • 23.4W (802.3at, decrease 6GHz Power)
  • 10.1W (802.3af, radio off, only main chip and LAN working)

• Dimensions: 220 x 220 x 32.5 mm

• Weatherproof: No

• Wireless Functions:

  • MLO
  • 4K-QAM
  • MU-MIMO
  • HE320
  • Mesh
  • BSS Coloring
  • OFDMA
  • Load Balance
  • Band Steering
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDs: 24 (8 for each band)
  • Wireless Schedule
  • Reboot Schedule
  • QoS (WMM)
  • Rate Limit
  • Static IP/Dynamic IP
  • RADIUS Accounting
  • MAC Authentication

• Security:

  • Captive Portal Authentication
  • Access Control
  • Maximum number of MAC Filter: 4,000
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Management:

  • Omada App
  • Centralized Management
  • Omada Hardware Controller (OC200 & OC300)
  • Omada Software Controller
  • Omada Cloud-Based Controller
  • Cloud Access (Requires controller)
  • Email Alerts
  • LED ON/OFF Control
  • Management MAC Access Control
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog
  • Web-based Management

• Environment:

  • Operating Temperature: 040 C (32104 F)
  • Storage Temperature: -4070 C (-40158 F)
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing

• Package Contents:

  • EAP773
  • Installation Guide
  • Ceiling/Wall Mounting Kits
  • (Note: Power Adapter not included)

• Warranty: Limited Lifetime
