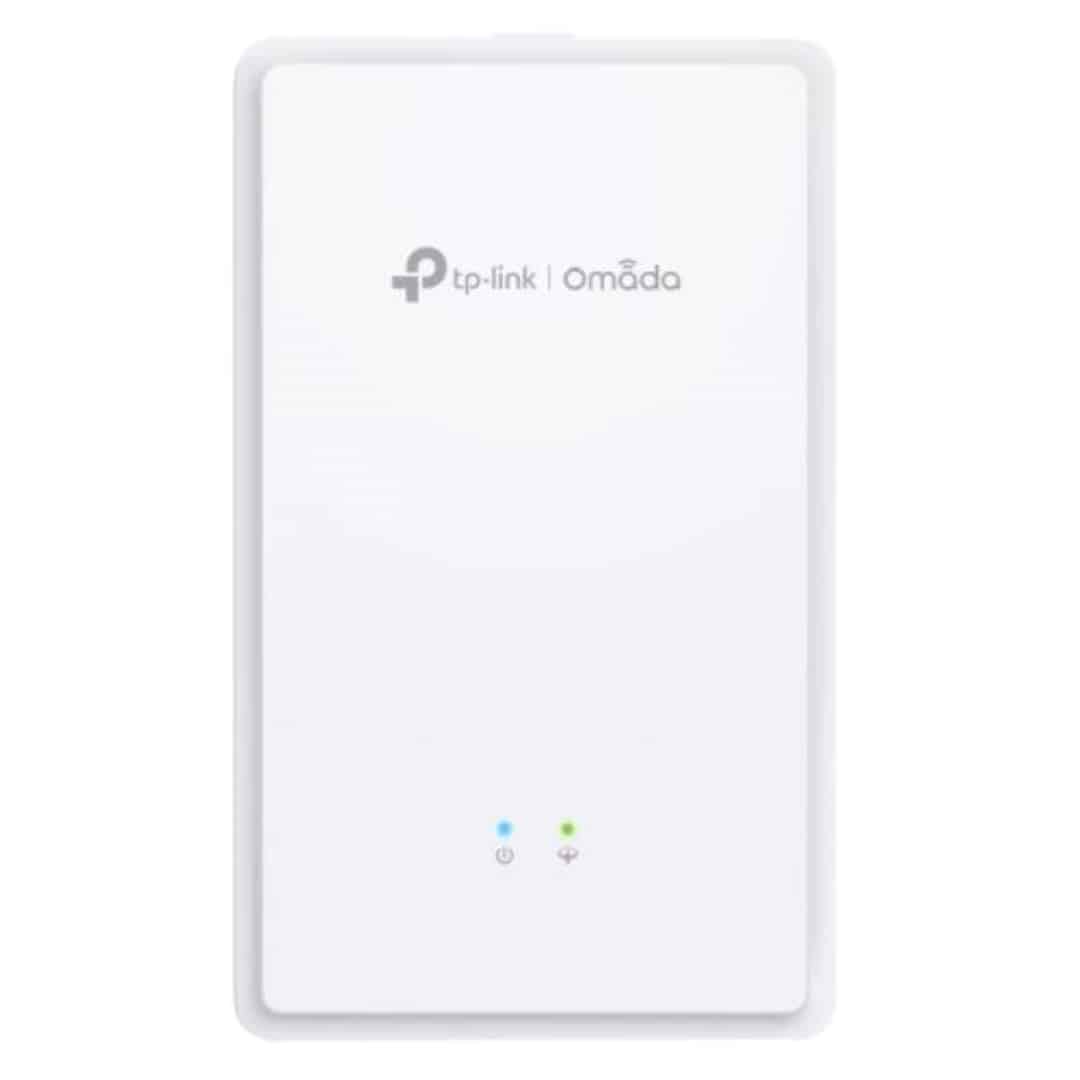

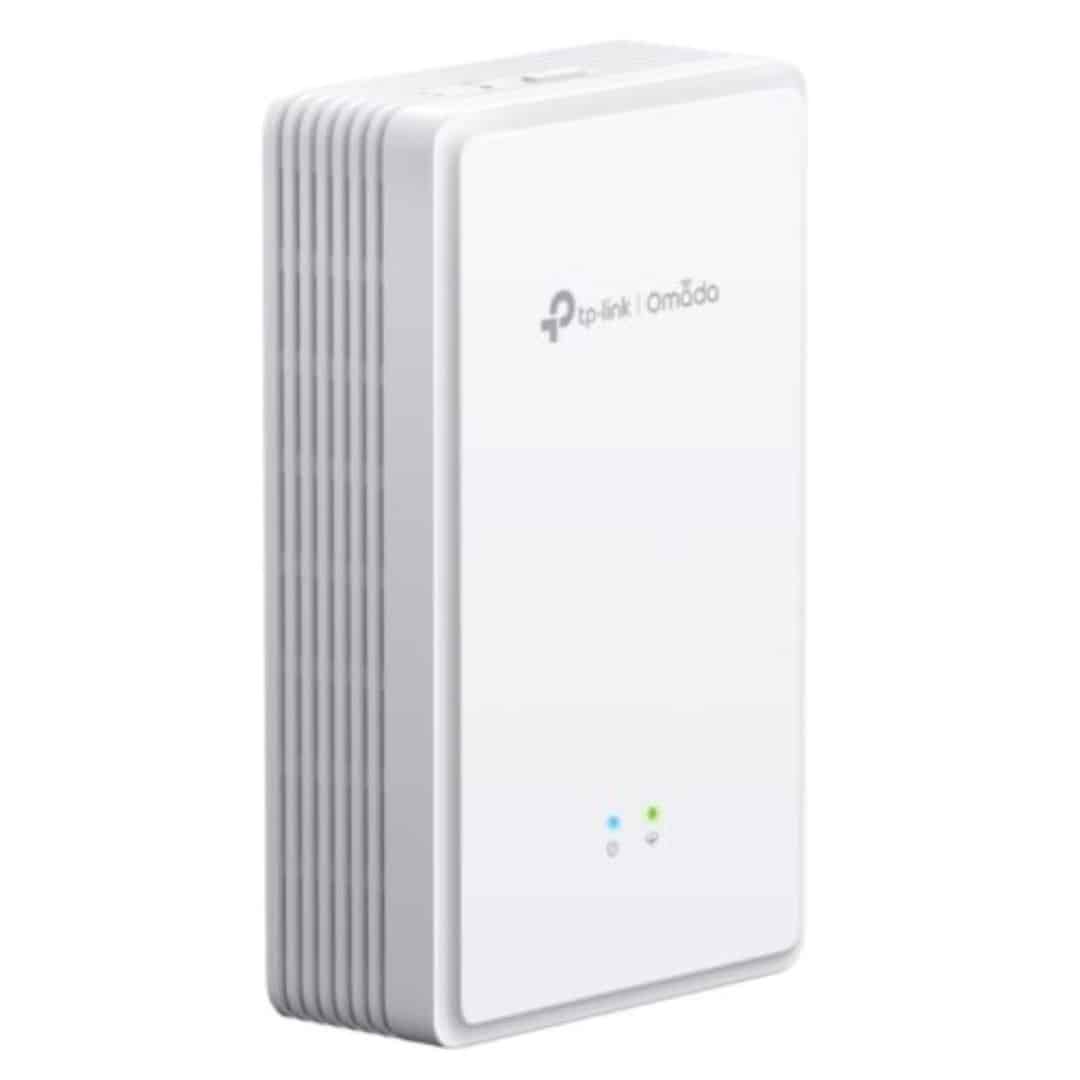

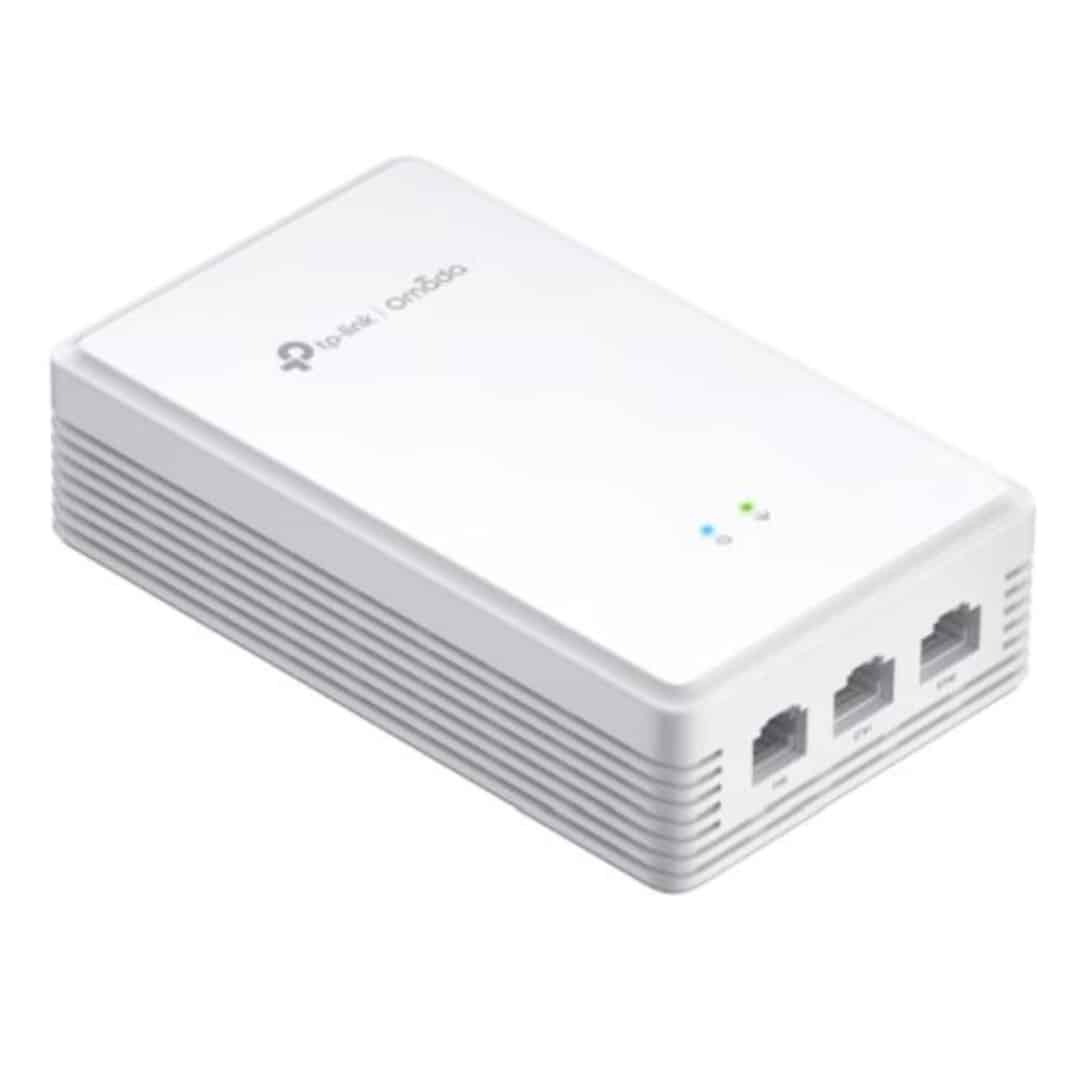

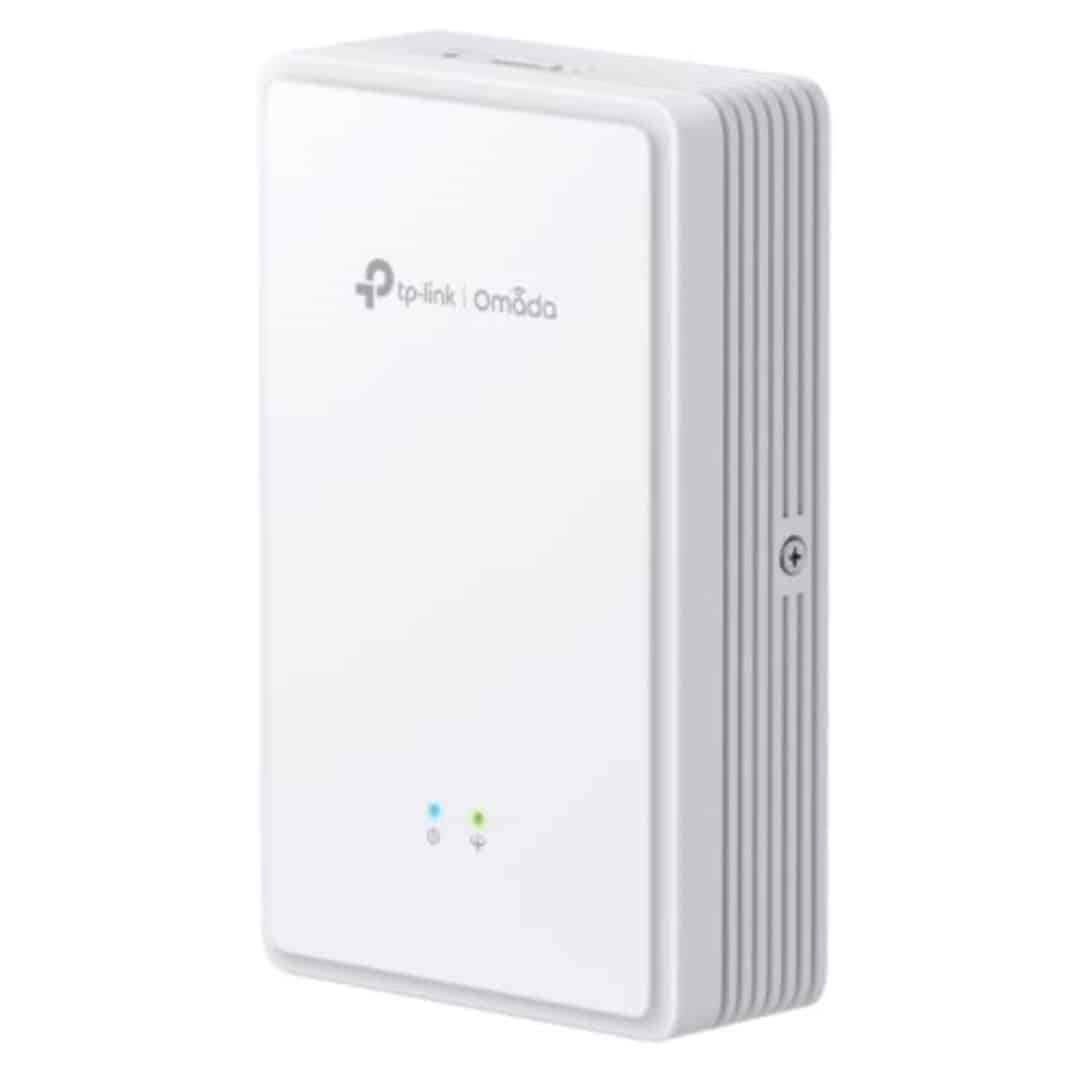

TP-LINK (EAP615GP-WALL) Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point GPON Port MU-MIMO VoIP Calls

Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

• Seamless 1.8 Gbps WiFi 6 Speeds:1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
• 1X GPON Portfor High-Speed and Ultra-Range Access
• Ultra-Broadband WiFi 6:MU-MIMO, Seamless Roaming
• One Fiber for Multiple Services:Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls:Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use:One-Click Pairing and Automatic Adoption
• Smart O&M:PPSK and Multiple Portals
• Centralized Management:Integrates with the Unified Optical Solution
• Wall-Mounted, AC Powered

Specifications:

• Primary Function: Access Point

• Bands: Dual Band

• Wi-Fi Rating: AX1800

• Max Single Band Wi-Fi Rate: 1201 Mbps

• Max Wired Transfer Rate: 10/100/1000 Mbps

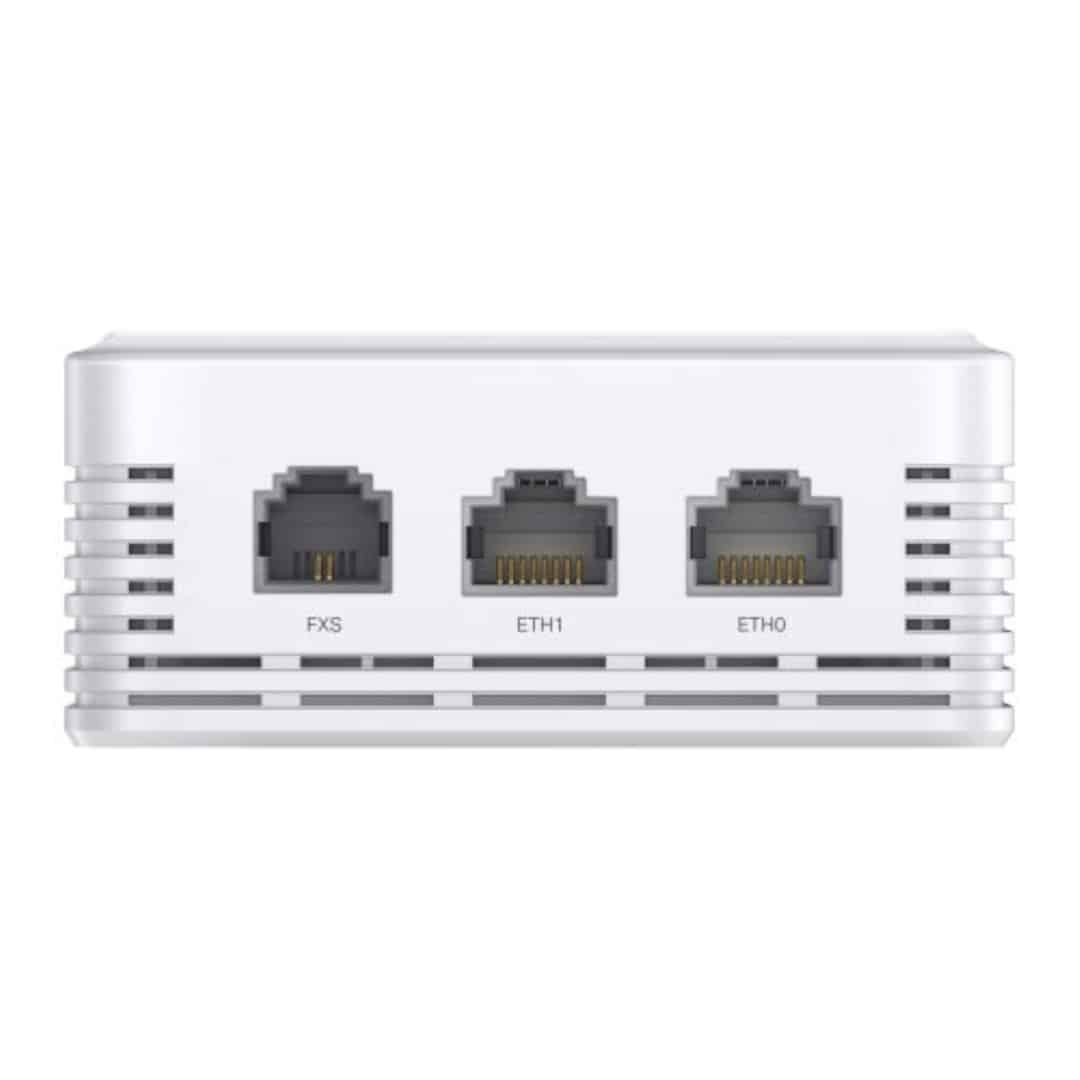

• Interface(s):

  • 1 x GPON Port
  • 1 x FXS Port
  • 2 x Gigabit RJ45 Ports

• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax

• Antenna(s):

  • Internal Omni
  • 2.4 GHz: 2x 4 dBi
  • 5 GHz: 2x 6.5 dBi

• Button(s): Reset, LED

• Power Supply:

  • 100240V~ 50/60Hz, 0.5A

• Power Consumption: 12.2W

• Dimensions: 143 x 86 x 37.6 mm

• Weatherproof: No

• Frequency: 2.4 GHz and 5 GHz

• Wireless Functions:

  • 2×2 (2.4G & 5G) MU-MIMO
  • HE80 (80 MHz Bandwidth)
  • OFDMA
  • Seamless Roaming
  • Multiple SSIDs (16 SSIDs, 8 on each band)
  • Enable/Disable SSID Broadcast
  • Enable/Disable Wireless Radio
  • Guest Network
  • Automatic Channel Assignment
  • Beamforming
  • Rate Limit
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • RADIUS Accounting
  • MAC Authentication
  • Reboot Schedule
  • Wireless Schedule and Statistics
  • Static IP/Dynamic IP

• Security:

  • Captive Portal Authentication
  • Access Control
  • Wireless MAC Address Filtering
  • Wireless Isolation Between Clients
  • VLAN
  • Rogue AP Detection
  • 802.1X Support
  • WPA-Personal/Enterprise, WPA2 & WPA3 Personal/Enterprise

• Quality of Service: QoS (WMM)

• Management:

  • Omada App
  • Centralized Management – Omada Controllers
  • Cloud Access – Requires Omada OC300, OC200, Cloud or Software Controller
  • Email Alerts
  • LED ON/OFF Control
  • Management MAC Access Control
  • SNMP v1, v2c, v3
  • System Log
  • SSH
  • Web-based Management
  • Zero-Touch Provisioning – Requires Omada Cloud-Based Controller

• Environment:

  • Operating Temperature: 040 C (32104 F)
  • Storage Temperature: -4070 C (-40158 F)
  • Operating Humidity: 1090% RH non-condensing
  • Storage Humidity: 590% RH non-condensing

• Package Contents:

  • EAP615GP-Wall

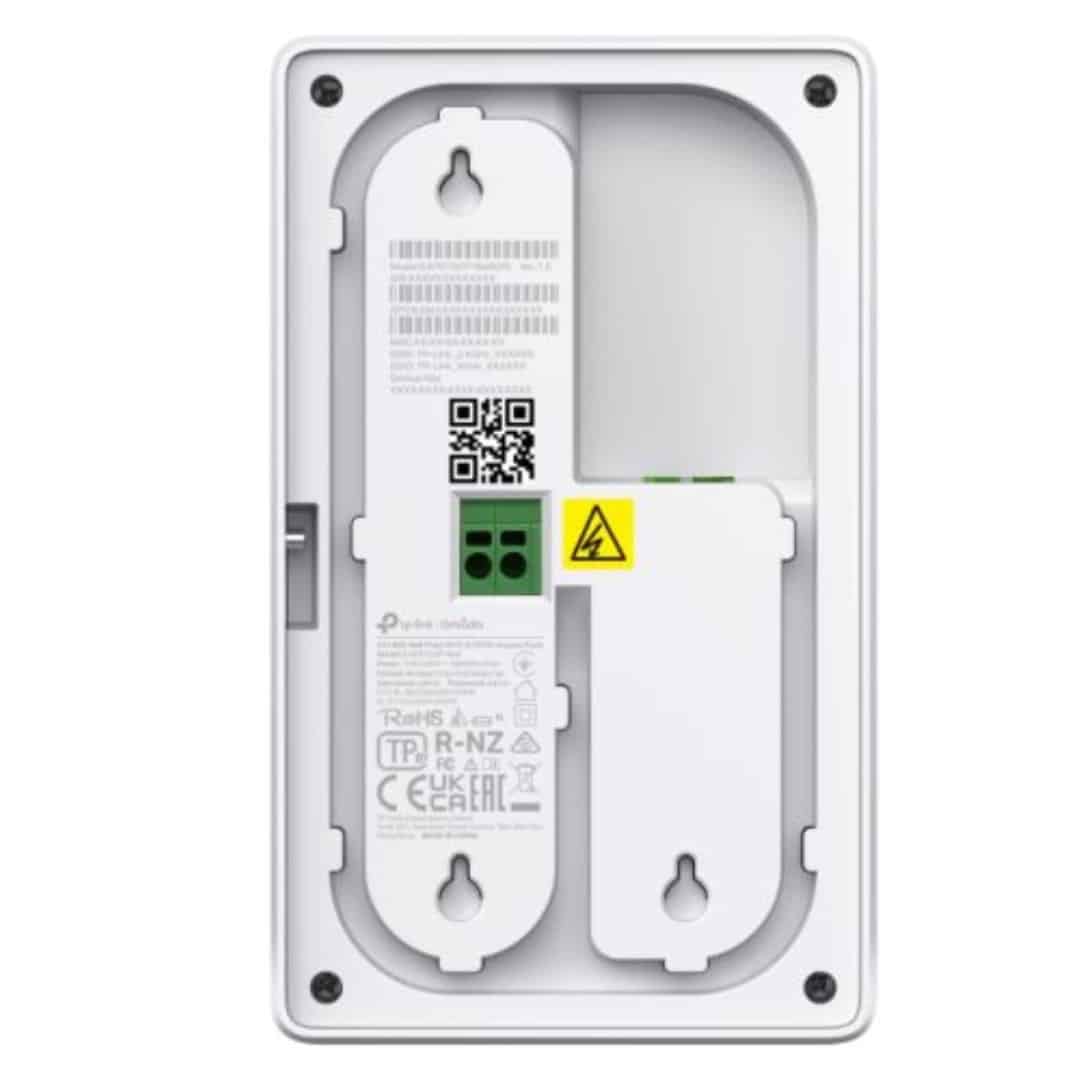

  • Wall Mounting Kit
  • Installation Guide

• Warranty: Limited Lifetime
