TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point PoE GB LAN Clusterable MU-MIMO Free Software

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• Cloud centralized management and Omada app for ultra convenience and easy management
• Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. Theres no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation.

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment

The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. Its the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Wireless Functions

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Specifications:

• Primary Function: Access Point

• Bands: Dual Band

• Wi-Fi Rating: AC1350

• Max Single Band Wi-Fi Rate: 867 Mbps

• Max Wired Transfer Rate: 10/100/1000 Mbps

• Interface(s): 1 x Gigabit Ethernet (RJ-45) Port

• Wireless Standards: IEEE 802.11ac/n/g/b/a

• Antenna(s):

  • Internal Antenna:
    • 2.4 GHz: 3x 4 dBi
    • 5 GHz: 2x 5 dBi

• Button(s): Reset

• Power Supply:

  • 802.3af/at PoE
  • 24V Passive PoE (+4,5 pins; -7,8 pins. PoE Adapter Included)

• Power Consumption: 10.5 W

• Dimensions: 205.5 x 181.5 x 37.1 mm

• Weatherproof: No

• Frequency: 2.4 GHz and 5 GHz

• Wireless Functions:

  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • Band Steering
  • Load Balance
  • MU-MIMO
  • Airtime Fairness
  • Beamforming

• Security:

  • Captive Portal Authentication
  • Access Control
  • Wireless MAC Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support

• Management:

  • Omada App
  • Omada Hardware Controllers (OC300 & OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
  • EAP Controller Software
  • Email Alerts
  • LED ON/OFF Control
  • Management MAC Access Control
  • SNMP v1, v2c
  • Local/Remote Syslog
  • Telnet
  • SSH
  • HTTP/HTTPS
  • L3 Management
  • Multi-site Management
  • Management VLAN
  • Zero-Touch Provisioning

• Environment:

  • Operating Temperature: 0C40C (32F104F)
  • Storage Temperature: -40C70C (-40F158F)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

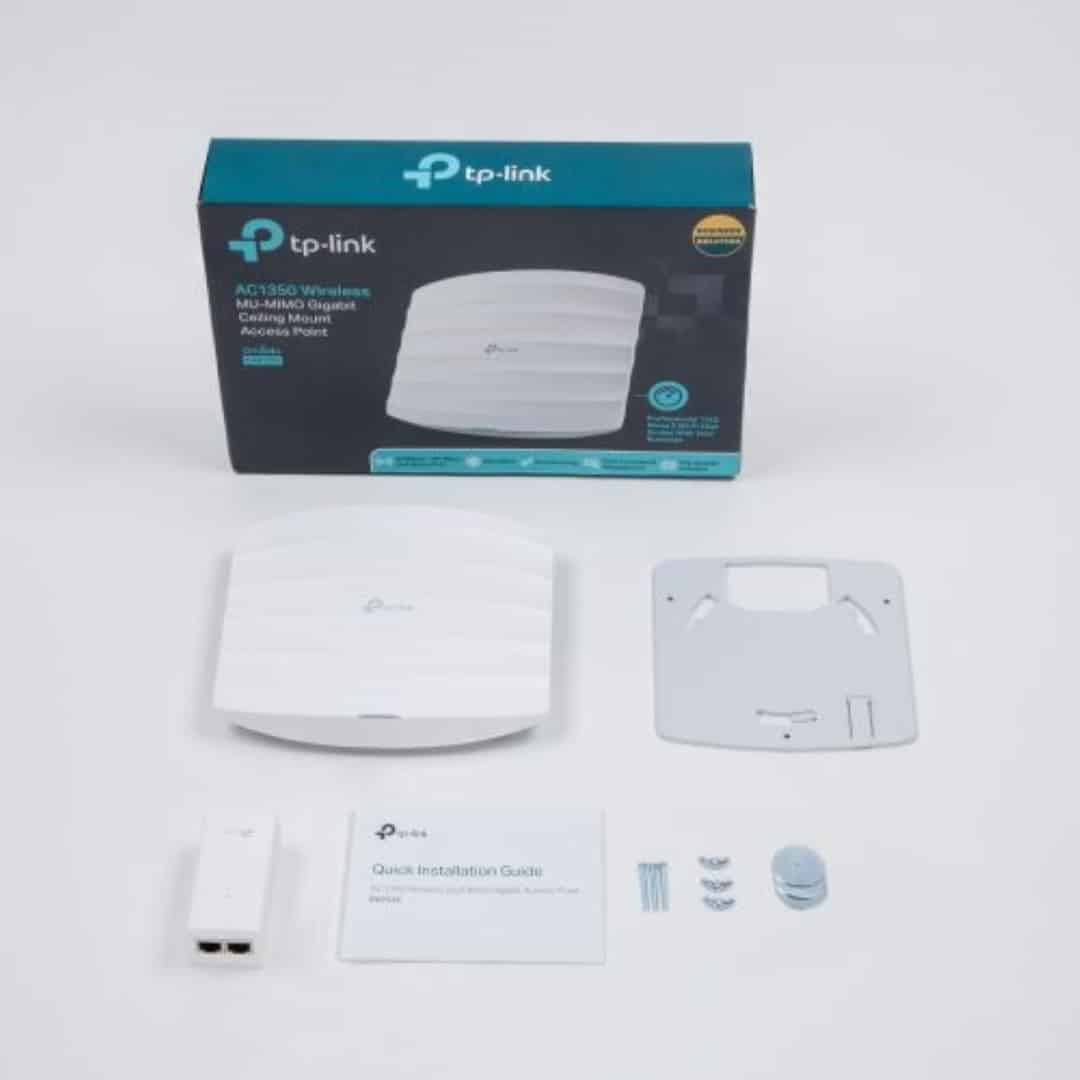

• Package Contents:

  • Access Point EAP225
  • Passive PoE Adapter
  • Power Cord
  • Ceiling and Wall Mounting Kits
  • Installation Guide
• Warranty: Limited Lifetime
