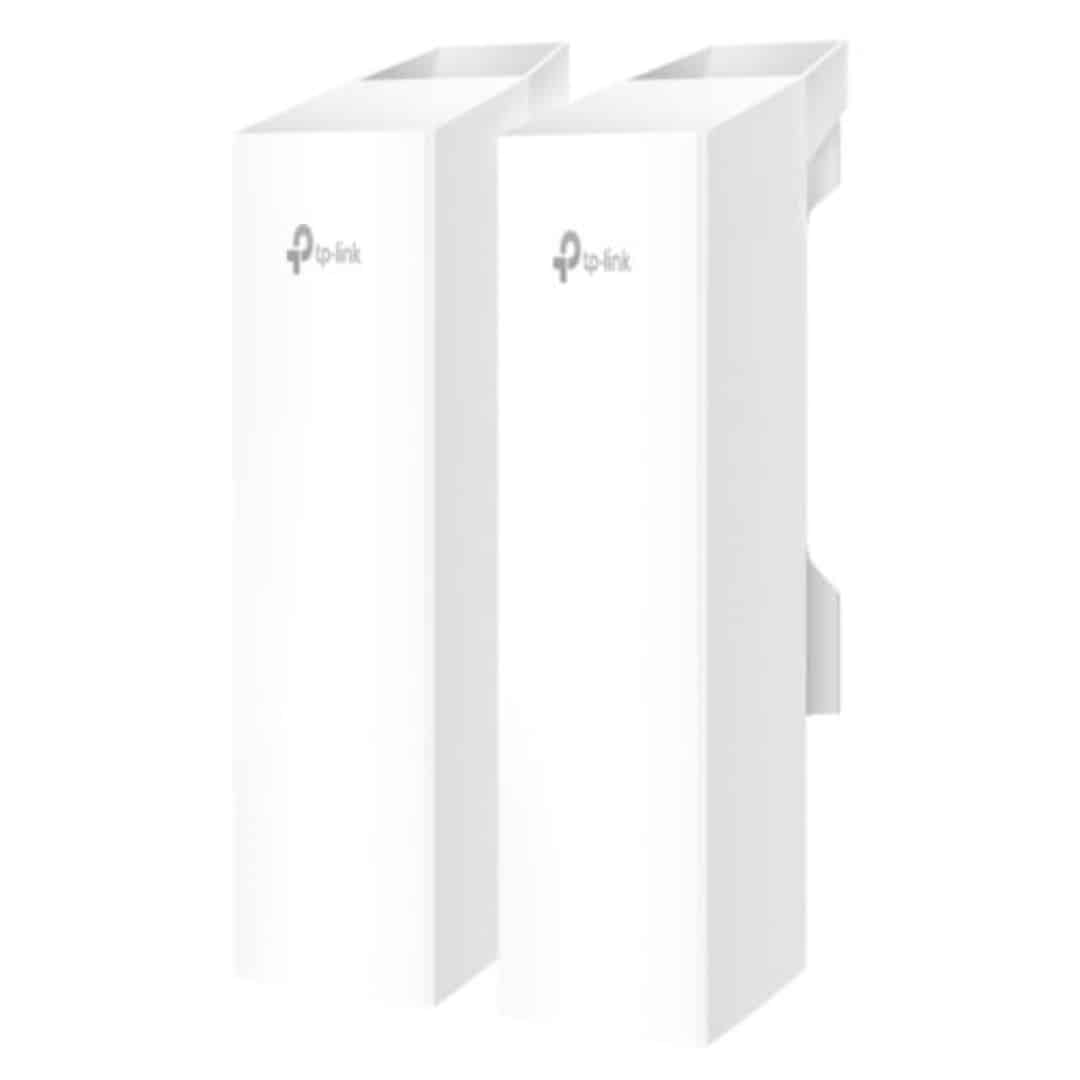

TP-LINK (EAP211-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Indoor/Outdoor Access Point Up to 1km

Primary Function: Access Point

Bands: Single Band

Wi-Fi Rating: AC867

Max Single Band Wi-Fi Rate: 867 Mbps

Max Wired Transfer Rate: 10/100/1000 Mbps

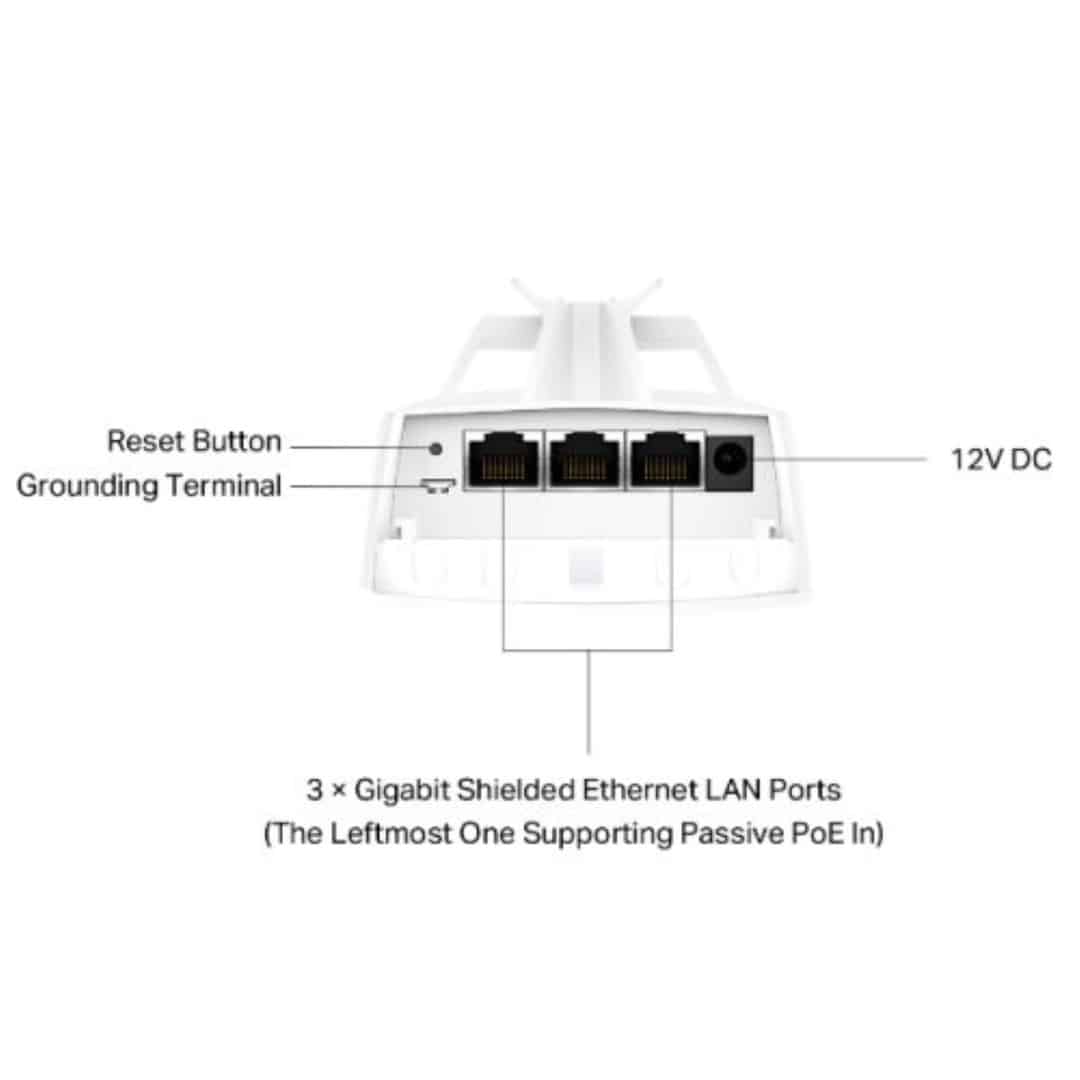

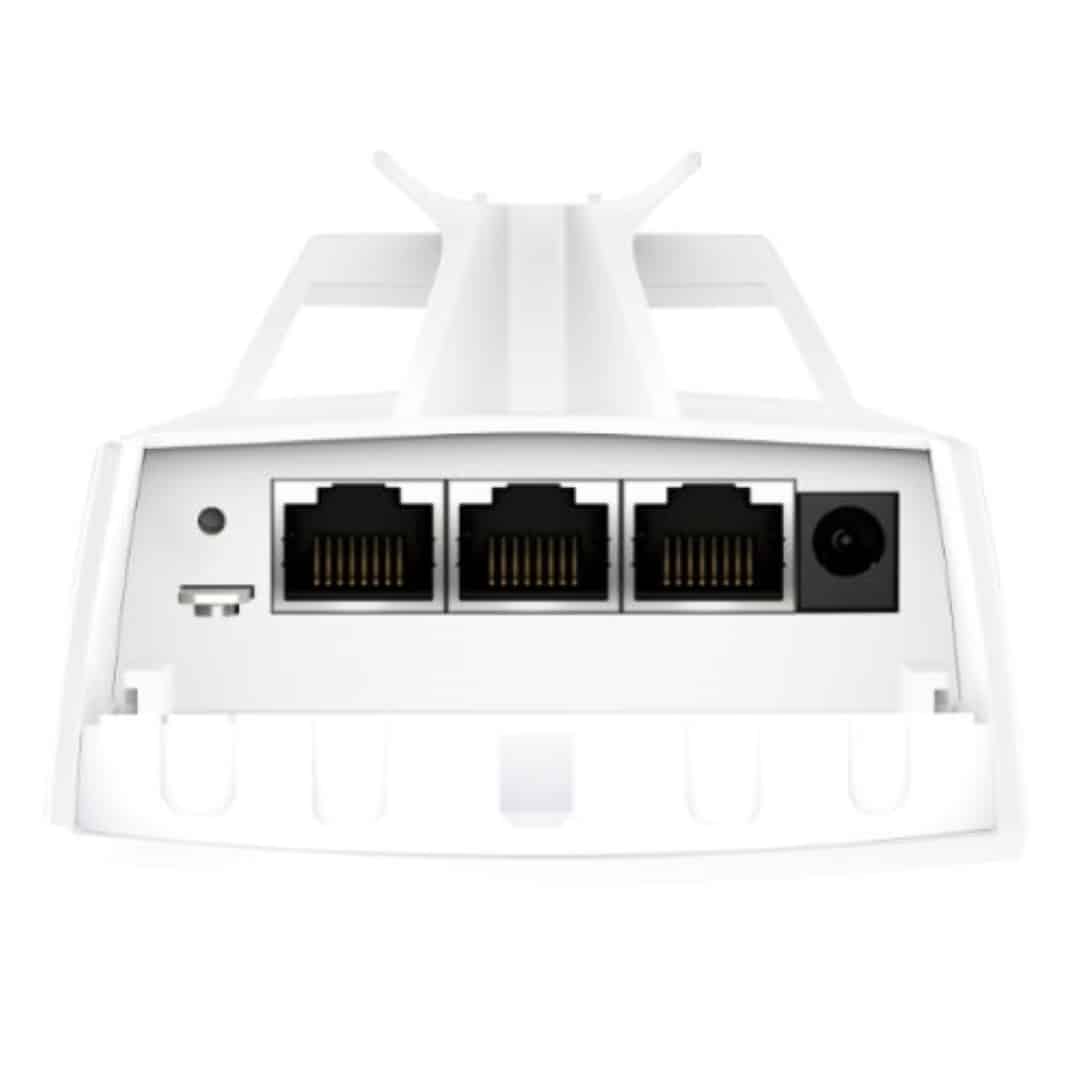

Interface(s): 3 x Gigabit Ethernet Ports

Wireless Standards: IEEE 802.11 a/b/g/n/ac

Antenna(s):

• Internal 2×2 Dual-polarized directional MIMO antennas
• 5 GHz: 7.0 dBi
• Horizontal: 70, Vertical: 70

Protection: 6 KV Lightning Protection

Button(s): Reset Button

Power Supply:

• 12V DC / 24V Passive PoE (Passive PoE adapter included)

Power Consumption: 11.5W

Dimensions: 79 x 60 x 224 mm

Weatherproof: Yes (Weatherproof)

Frequency: 5 GHz

EIRP:

• <23dBm (5 GHz, band 1/2, EIRP)
• <30dBm (5 GHz band3, EIRP)

Wireless Functions:

• Mesh
• MU-MIMO: 5G 2×2 MU-MIMO DL
• Load Balance
• Seamless Roaming (802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs: 8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

Security:

• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filters: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Wireless Range: Ideal for long-range wireless transmission up to 1 km

Management:

• Omada App
• Restore & Backup
• Firmware update via Web
• NTP
• Cloud Access (Requires OC300, OC200, or Omada Software/Cloud-Based Controller)
• LED ON/OFF Control
• Management MAC Access Control
• SNMP: v1, v2c, v3
• SSH
• Web-based Management
• Centralized Management via:
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller

Environment:

• Operating Temperature: -40 C70 C (-40 F158 F)
• Storage Temperature: -40 C70 C (-40 F158 F)
• Operating Humidity: 10%90% non-condensing
• Storage Humidity: 5%90% non-condensing

Package Contents:

• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Warranty: 2 Years
