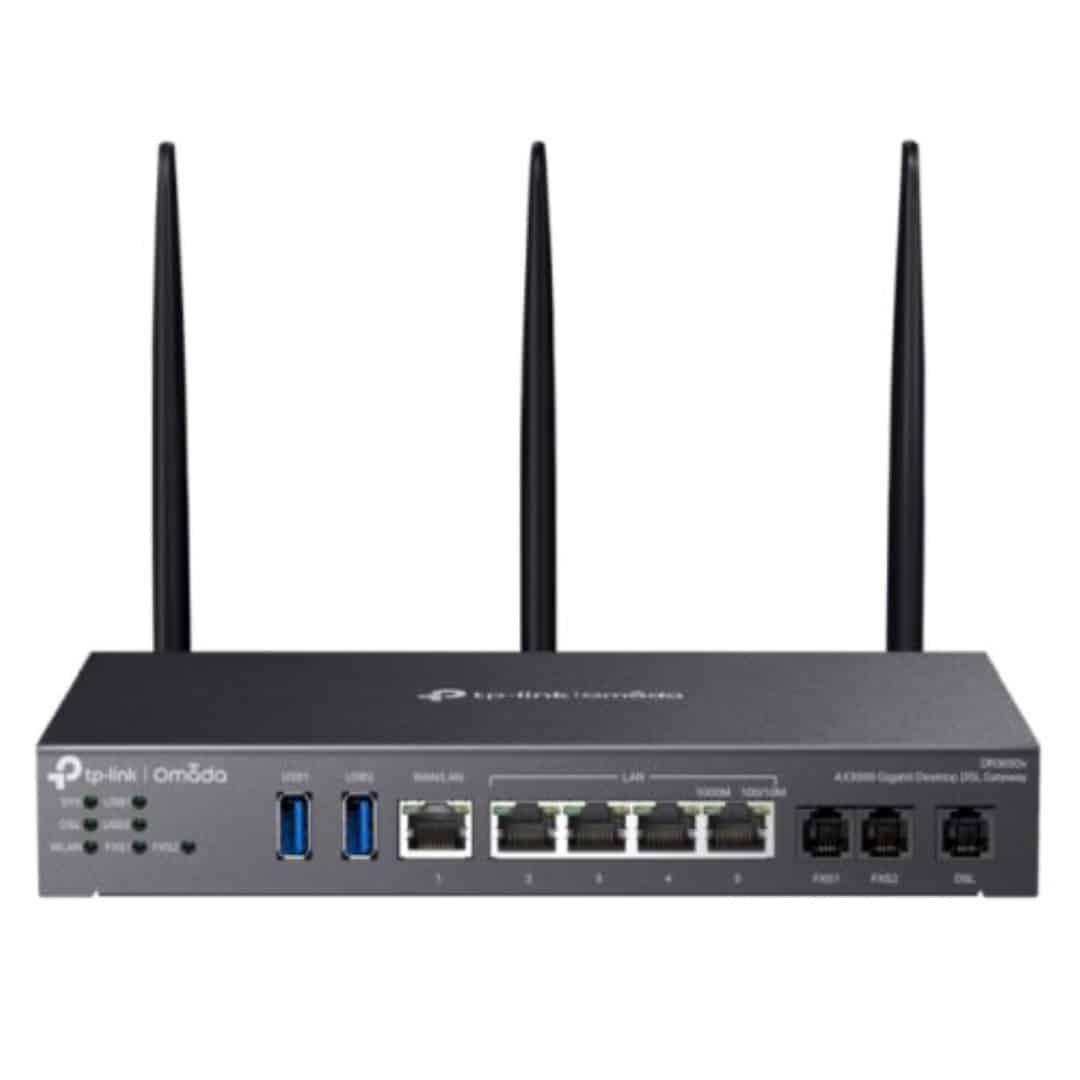

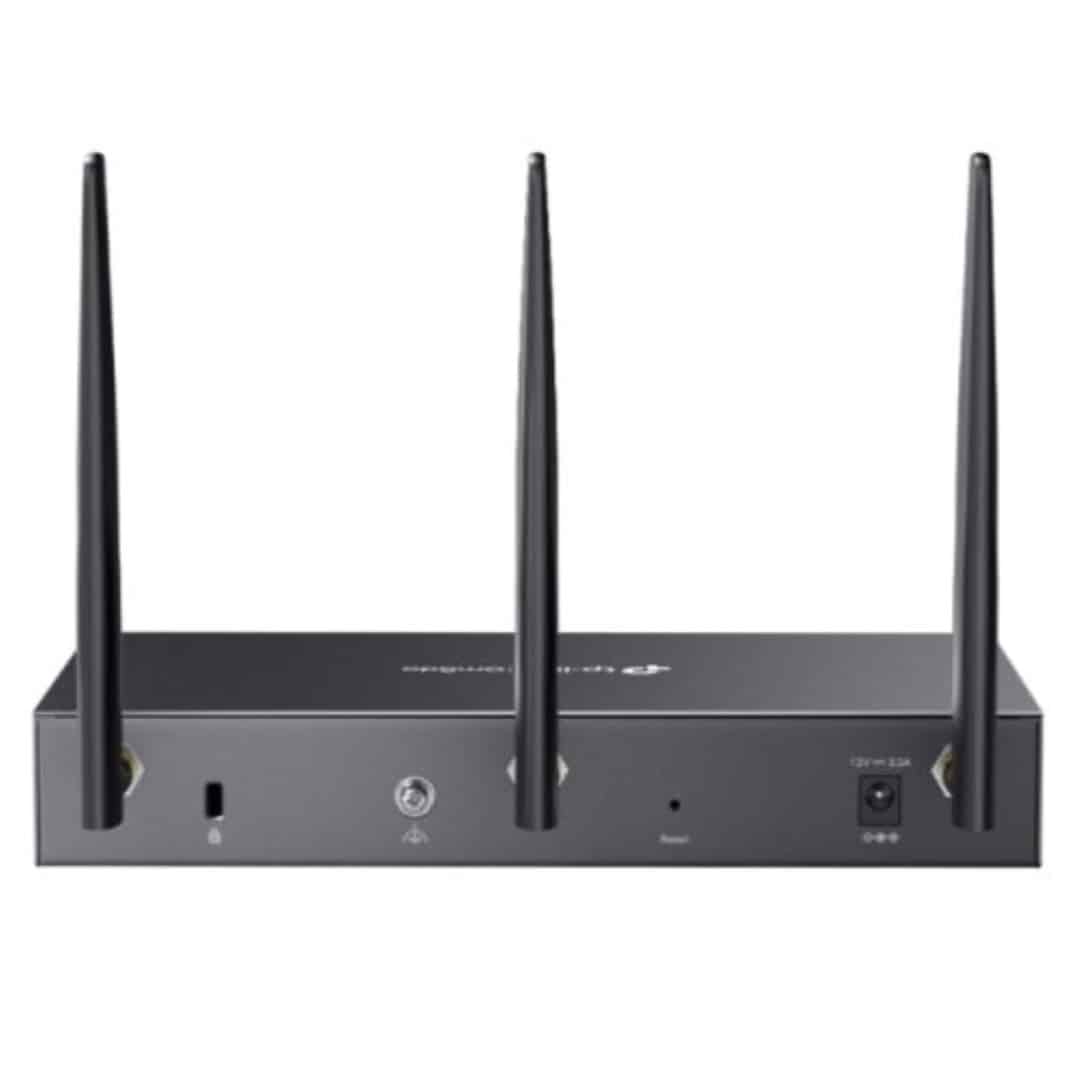

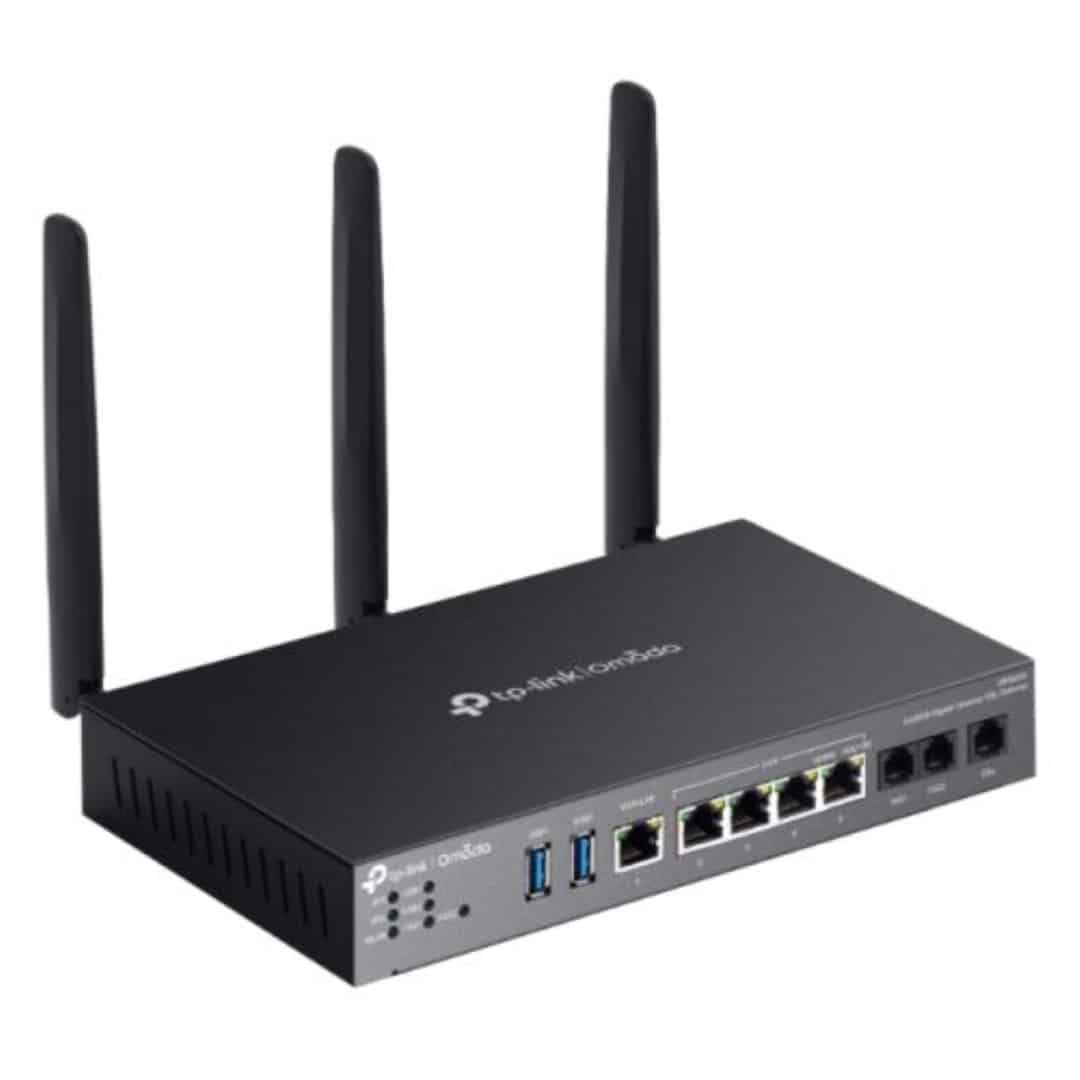

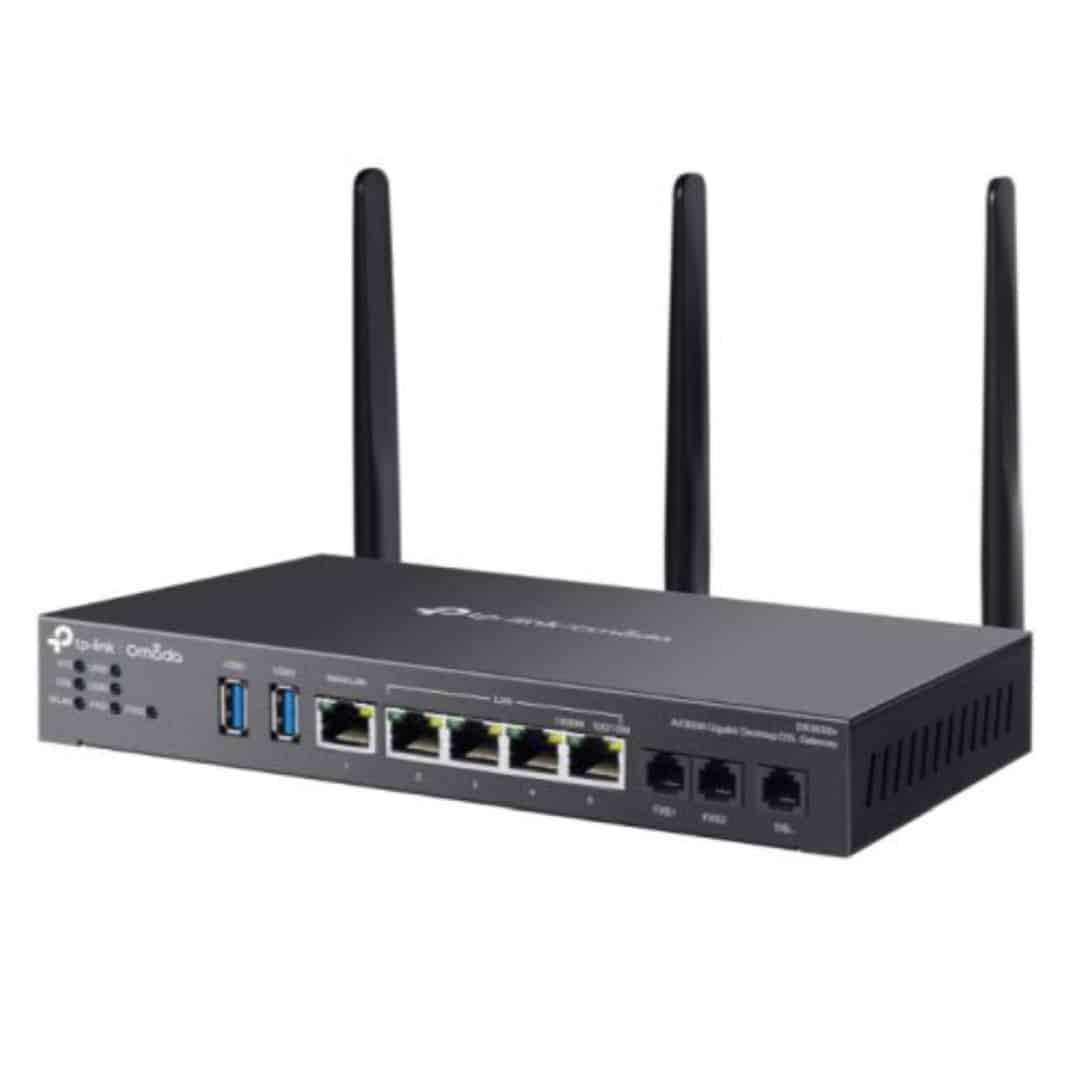

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- VDSL2 35b: Supports 350Mbps DSL Access
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- Centralized Cloud Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Between DSL and Ethernet WAN
- Omada Mesh Technology
- 3 x RJ11 Ports (2 x FXS, 1 x DSL) & 5 x RJ45 Gigabit Ports & 2 x USB 3.0 Ports

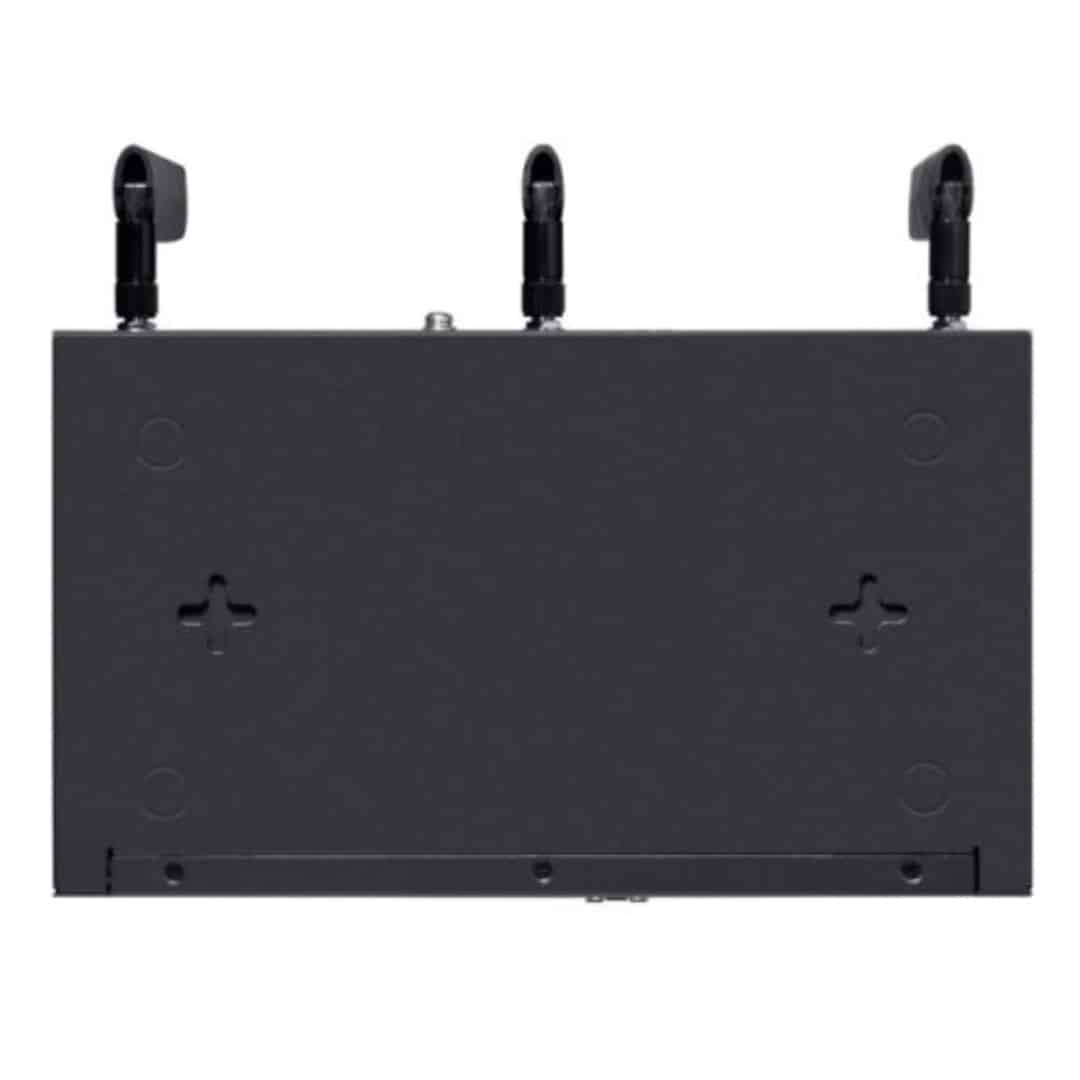

- Desktop/Wall Mounting
- Dimensions: 8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
HE 160
Double the data at peak transmission times on a single stream.
OFDMA
Enables different devices to share one transmission stream, increasing efficiency.
1024 QAM
25% more data encoded at one time.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintenance costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/OpenVPN/SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Specifications:
-
Type: VDSL2/ADSL2 Router
-
Connectivity: Wireless
-
Wi-Fi Rating: AX3000
-
Max Single Band Wi-Fi Rate:
- 5 GHz: 2402 Mbps
- 2.4 GHz: 574 Mbps
-
Max Wired Transfer Rate: 10/100/1000 Mbps
-
Bands: Dual Band
-
Signal Rate:
- 5 GHz: 2402 Mbps
- 2.4 GHz: 574 Mbps
-
Interface(s):
- 3 x RJ11 Ports (2 x FXS, 1 x DSL)
- 5 x RJ45 Gigabit Ports (1 x WAN/LAN, 4 x LAN)
- 2 x USB 3.0
-
Frequency: 2.4 GHz & 5 GHz
-
Button(s):
-
Power Supply:
- 12VDC / 3.3A Power Adapter
- Max Power Consumption: EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
-
Antenna(s):
- 2.4 GHz: 2x 3 dBi dual-band detachable antennas
- 5 GHz: 3x 4.5 dBi dual-band detachable antennas
-
Dimensions:
- 226 x 131 x 35 mm (Antenna dimensions not included)
-
Wireless Functions:
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
-
Security:
- WiFi Encryption:
- WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
- Filtering:
- Web Group Filtering
- URL Filtering
- Web Security
- ARP Inspection:
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
- Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
- Access Control:
- Source/Destination IP Based Access Control
-
DHCP:
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
-
Port/NAT Forwarding:
- 66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate: 81,274 pps / 91,275 pps
-
VPN Support:
- SSL VPN: 50 Tunnels
- IPsec VPN: 100 IPSec VPN Tunnels
- PPTP VPN: PPTP VPN Server
- L2TP VPN: L2TP VPN Server
- OpenVPN: OpenVPN Server
- WireGuard VPN: 20 Tunnels
-
Management:
- Omada App
- Centralized Management
- Cloud Access
- Zero-Touch Provisioning
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
- TR-069 (data models of TR-098 and TR181 are supported)
-
Management Features:
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
-
Dynamic DNS:
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
-
USB Application:
-
Additional Features:
- Flash: 256 MB NAND
- DRAM: 512 MB DDR4
- Desktop/Wall-mounting
- Guest Network
-
Environment:
- Operating Temperature: 0C~40C (32F ~104F)
- Storage Temperature: -40C to 70C (-40F to 158F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
-
Package Contents:
- DR3650v
- Power Adapter
- Ethernet Cable
- Phone Cable
- Quick Installation Guide
-
Warranty: Limited Lifetime
