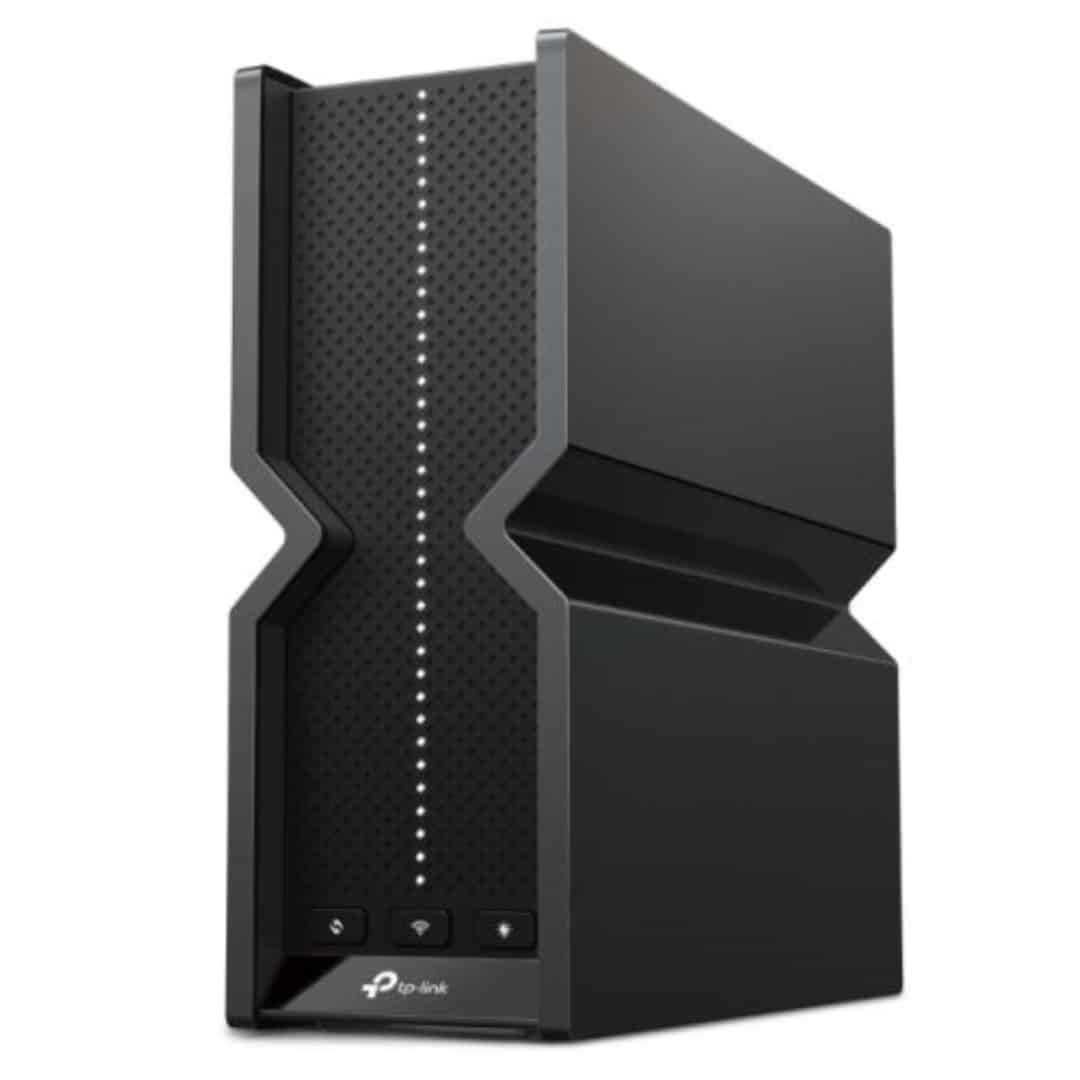

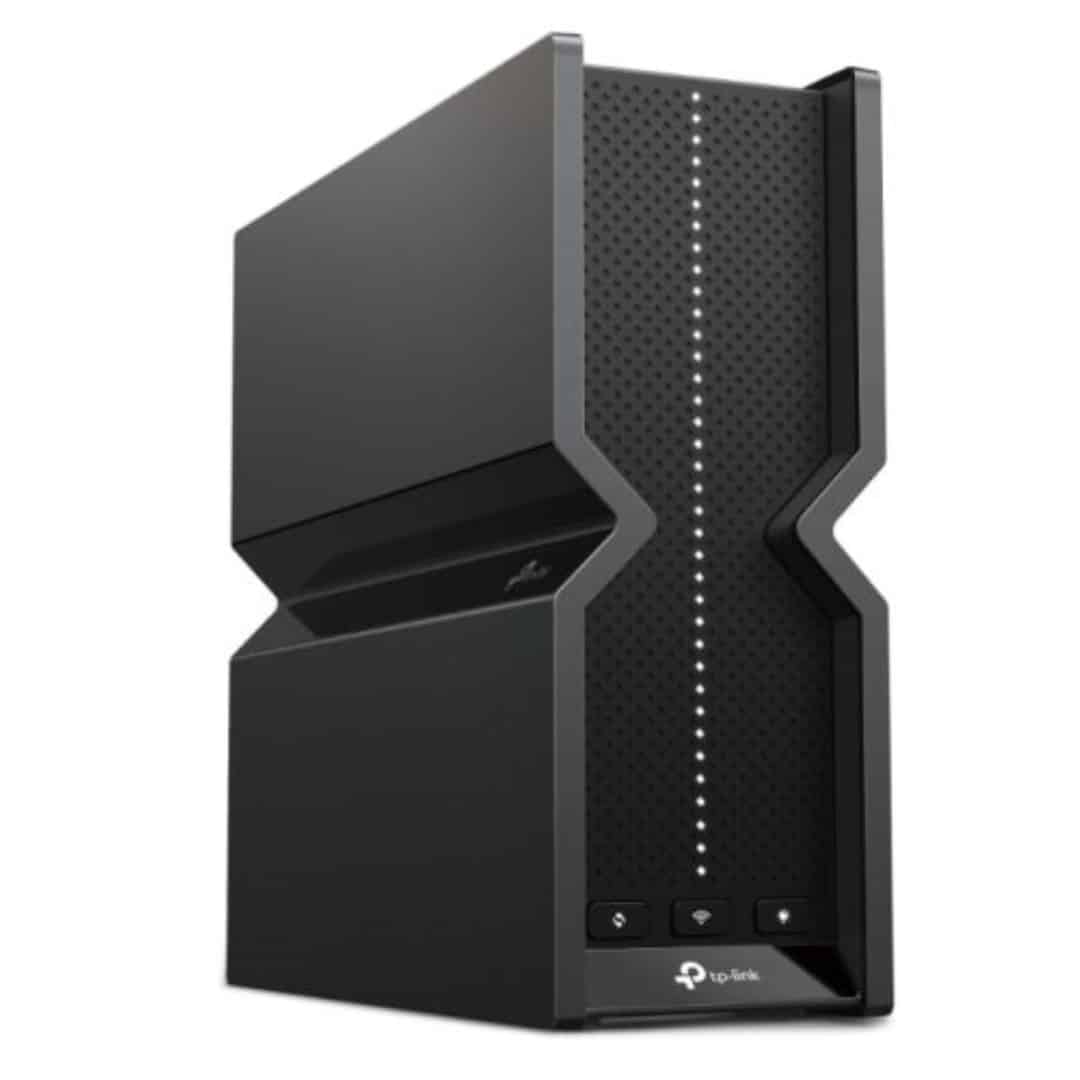

TP-LINK (Archer BE550) BE9300 Tri-Band Wi-Fi 7 Router MLO 4x 2.5G LAN 2.5G WAN EasyMesh Compatible

BE9300 Tri-Band Wi-Fi 7 Router

Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, and brand-new design.
Blazing-Fast 9214 Mbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
Full 2.5G Ports: One 2.5 Gbps WAN port and four 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
Maximized Coverage: Proprietary WiFi optimization and optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.

WiFi 7 – WiFi Like Never Before

WiFi 7 has arrived with jaw-dropping performance, offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.

• 320 MHz: Doubles the width, doubles the speed
• 4K-QAM: Packs 20% more data than WiFi 6 for higher speeds
• Multi-Link Operation: Increases throughput, reduces latency, and improves reliability
• Multi-RUs: Makes full use of every resource for maximum efficiency

Ultra-Fast 9214 Mbps 6-Stream Tri-Band WiFi

Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading.

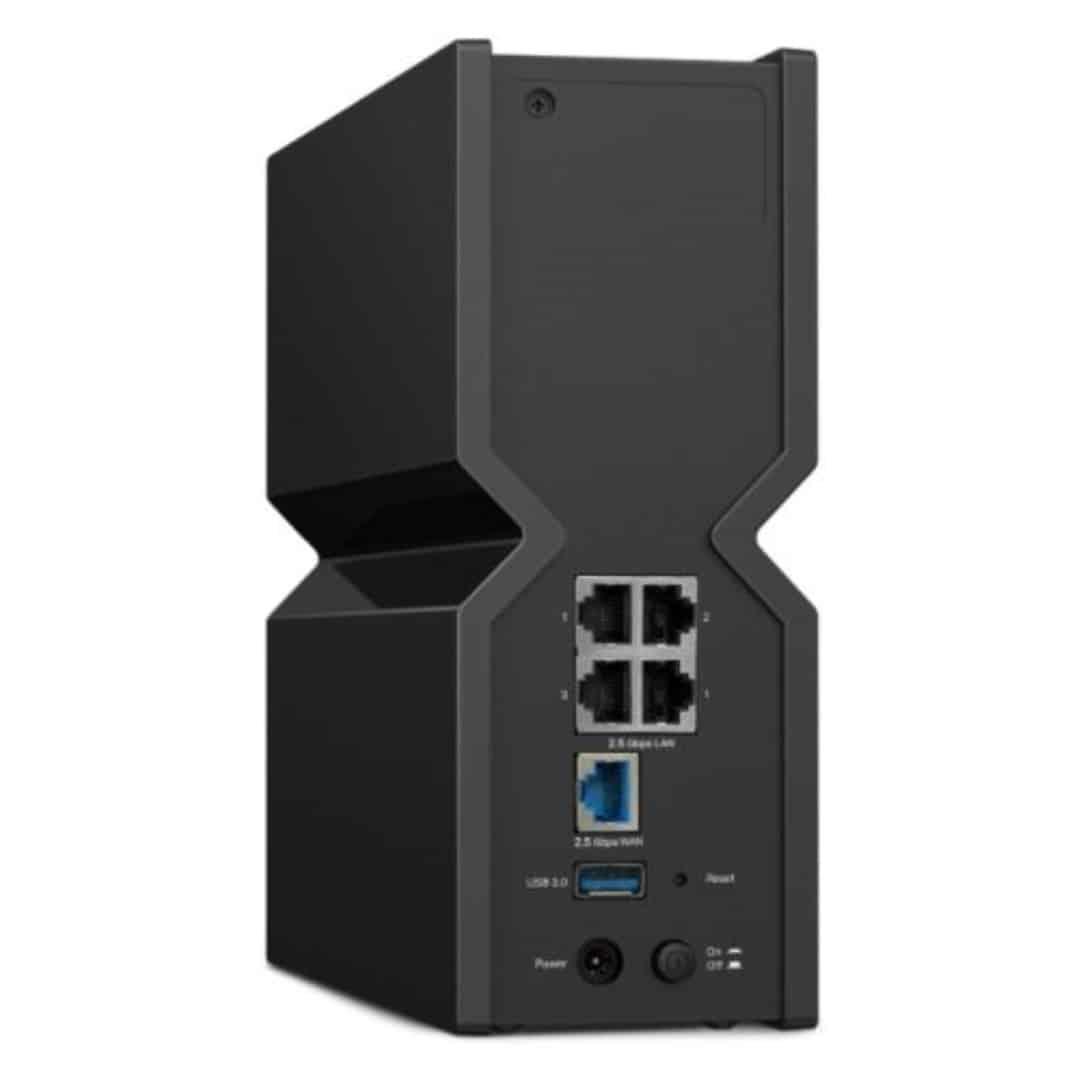

5x 2.5 Gbps Ports for Full Multi-Gigabit Connectivity

One 2.5 Gbps WAN port maximizes home internet speeds with up to 2.5x the wired speed of a typical Gigabit Ethernet port. The additional four 2.5 Gbps LAN ports make Archer BE550 an ideal solution for future-proofing your home network. Let’s begin the unprecedented smooth game!

6 High Gain Antennas with Beamforming

• 6x Internal Antennas: Proprietary WiFi optimization and 6x optimally positioned antennas boost WiFi signals throughout your home.
• Beamforming Technology: Detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

Flexibly Create Whole Home Mesh WiFi

Archer BE550 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

• WiFi Dead Zone Killer: Eliminate weak signal areas with WiFi coverage for the whole house
• Smart Roaming: Uninterrupted streaming when moving around your home
• One WiFi Name: No more switching WiFi network names
• Unified Management: Manage your whole home WiFi from the central node via the Tether app/Web UI

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer BE550 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children and customize a time range for better online habits.

New Connection Notifications

You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrades

Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.

VPN Clients and Server Supported

Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE550 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

TP-Link HomeShield

With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network’s data and privacy.

• Home Network Scanner: Real-time network scanner to detect potential threats and security issues
• Parental Controls: Manage time online and block inappropriate content to keep your family safe online
• Quality of Service: Assign your favorite devices to have the fastest connections for top performance

Private IoT Network for More Security

Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

Specifications:

• Type: Cable Router

• Connectivity: Wireless

• Wi-Fi Rating: BE9300

• Max Single Band Wi-Fi Rate:

  • 6 GHz: up to 5760 Mbps
  • 5 GHz: up to 2880 Mbps
  • 2.4 GHz: up to 574 Mbps

• Max Wired Transfer Rate: 2.5 Gbps

• Bands: Tri Band

• Signal Rate:

  • 6 GHz: up to 5760 Mbps
  • 5 GHz: up to 2880 Mbps
  • 2.4 GHz: up to 574 Mbps

• Interface(s):

  • 1 x 2.5 Gbps WAN
  • 4 x 2.5 Gbps LAN
  • 1 x USB 3.0

• Frequency: 2.4 GHz / 5 GHz / 6 GHz

• Button(s):

  • Power On/Off Button
  • Wi-Fi On/Off Button
  • LED Button
  • WPS Button
  • Reset Button

• Power Supply: 12 V = 3.3A

• Antenna(s): 6 x Optimally Positioned Antennas

• Dimensions (WxDxH): 76 x 231.7 x 203 mm

• Wireless Functions:

  • Router Mode
  • Access Point Mode
  • 2×2 MU-MIMO
  • OFDMA
  • Airtime Fairness
  • DFS
  • 6 Streams
  • Compatible with EasyMesh

• Security:

  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
  • HomeShield Security:
    • Real-Time IoT Protection
    • Malicious Site Blocker
    • Intrusion Prevention System
    • DDoS Attack Prevention
    • Home Network Scanner
  • Guest Network:
    • 1x 6 GHz Guest Network
    • 1x 5 GHz Guest Network
    • 1x 2.4 GHz Guest Network
  • WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

• DHCP:

  • Address Reservation
  • DHCP Client List
  • DHCP Server

• Port/NAT Forwarding:

  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP

• VPN Support:

  • VPN Server:
    • OpenVPN Server
    • PPTP VPN Server
    • L2TP VPN Server
  • VPN Client:
    • Open VPN Client
    • PPTP VPN Client
    • L2TP VPN Client

• Management:

  • Tether App
  • Webpage

• Dynamic DNS:

  • TP-Link
  • NO-IP
  • DynDNS

• USB Application:

  • FTP Server
  • Media Server
  • Samba Server

• Additional Features:

  • Multi-Link Operation (MLO)
  • 320 MHz Channel
  • 4K-QAM
  • Multi-RUs
  • EasyMesh-Compatible
  • Works with Alexa and Google Assistant
  • IoT Network

• Environment:

  • Operating Temperature: 0C40C (32F104F)
  • Operating Humidity: 10%~90% RH

• Package Contents:

  • Wi-Fi 7 Router Archer BE550
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

• Warranty: 3 Years
