TP-LINK (Archer BE230) BE3600 Dual Band Wi-Fi 7 Router MLO 2.5G LAN 2.5G WAN USB EasyMesh Compatible

BE3600 Dual-Band Wi-Fi 7 Router

3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

2x 2.5G Ports: 1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port, and 3x 1 Gbps LAN ports offer high-speed data transmissions.

Maximized Coverage: 4x external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

Easy Setup and Use: Network management has never been easier with the Tether app.

TP-Link HomeShield: Enhanced security defends against the latest cyber threats.

Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.

Works with Alexa and Google Assistant.

Next-Level Experience Realized with 3.6 Gbps WiFi 7

Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

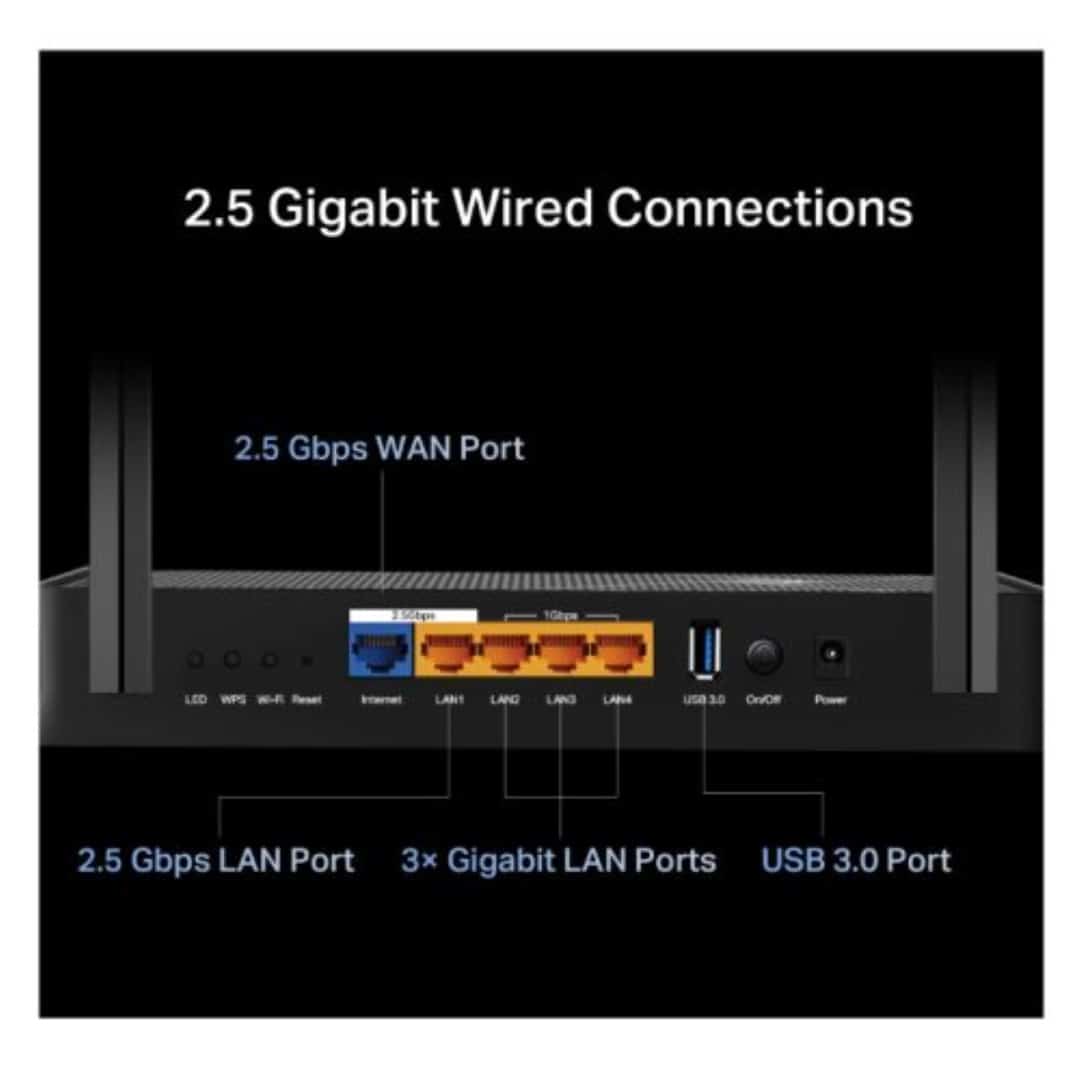

2.5 Gigabit Wired Connections

1x 2.5 Gbps WAN port and 1x 2.5 Gbps LAN port make full use of the Gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance.

USB 3.0 Port

Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.

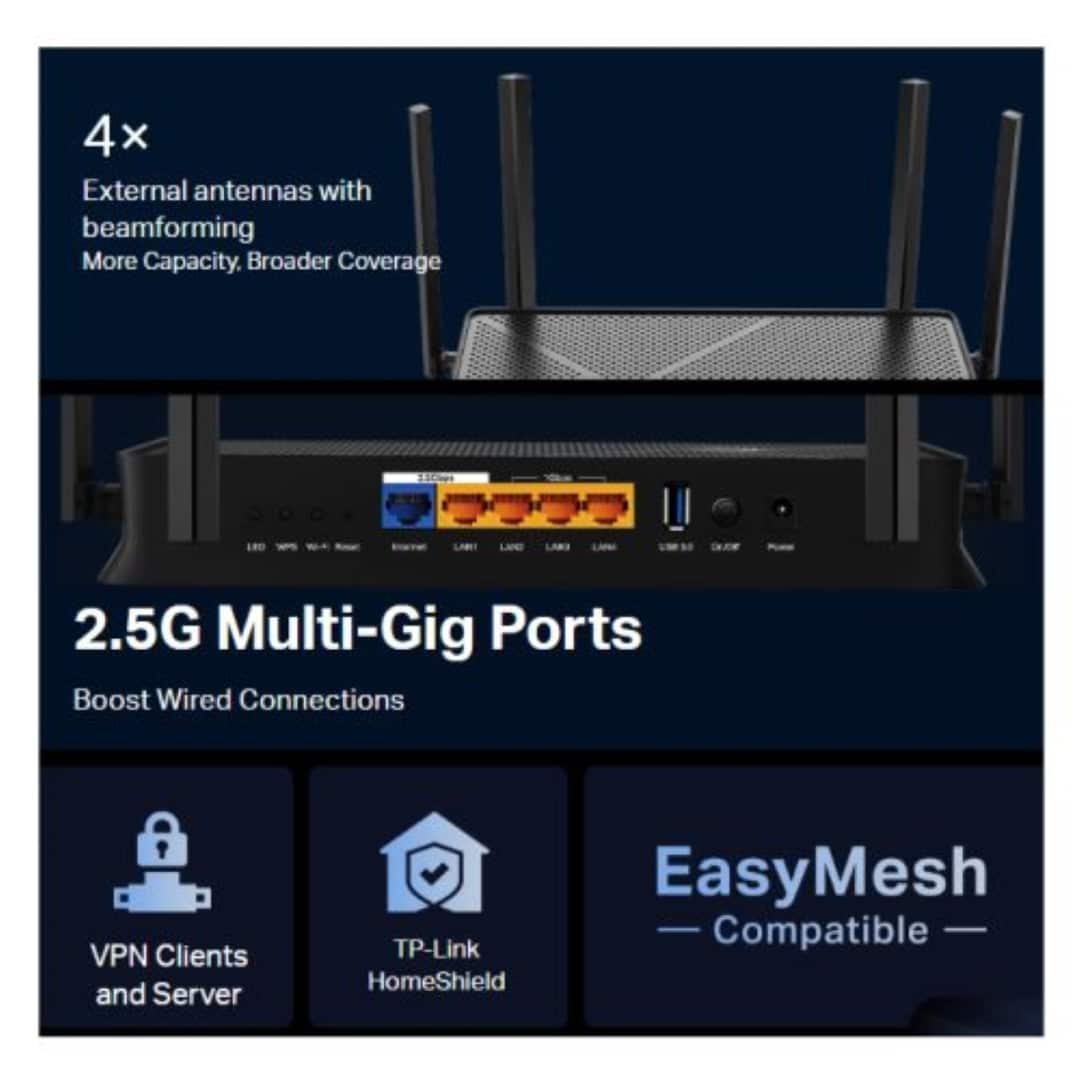

Boosted WiFi Coverage Throughout Your Home

4x high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

Flexibly Create Whole Home Mesh WiFi

Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

• WiFi Dead Zone Killer – Eliminate weak signal areas with WiFi coverage for the whole house.
• Smart Roaming – Uninterrupted streaming when moving around your home.
• One WiFi Name – No more switching WiFi network names.

HomeShield – Your Security is Our Priority

• Home Network Scanner – Real-time network scanner to detect potential threats and security issues.
• Parental Controls – Manage time online and block inappropriate content to keep your family safe online.
• Quality of Service – Assign your favorite devices to have the fastest connections for top performance.

VPN Clients and Server Supported

Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.

Setup Got Easier than Ever

Install the Tether app and simply follow the on-screen directions. In just three easy steps, your entire home can be blanketed in strong and reliable WiFi.
Specifications:

• Type: Cable Router

• Connectivity: Wireless

• Wi-Fi Rating: BE3600

• Max Single Band Wi-Fi Rate:

  • 5 GHz: up to 2882 Mbps
  • 2.4 GHz: up to 688 Mbps

• Max Wired Transfer Rate: 2.5 Gbps

• Bands: Dual Band

• Signal Rate:

  • 5 GHz: up to 2882 Mbps
  • 2.4 GHz: up to 688 Mbps

• Interface(s):

  • 1 x 2.5 Gigabit WAN
  • 1 x 2.5 Gigabit LAN
  • 3 x 1 Gigabit LAN
  • 1 x USB 3.0

• Frequency: 2.4 GHz and 5 GHz

• Button(s):

  • Power On/Off Button
  • Wi-Fi On/Off Button
  • LED Button
  • WPS Button
  • Reset Button

• Power Supply: 12V = 1.5A

• Antenna(s): 4 x External High-performance Antennas

• Wireless Functions:

  • Router Mode
  • Access Point Mode
  • 2×2 MU-MIMO
  • OFDMA
  • Airtime Fairness
  • DFS
  • 4 Streams
  • Multi-Link Operation (MLO)
  • 4K-QAM
  • Multi-RUs
  • EasyMesh-Compatible
  • IoT Network

• Security:

  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
  • HomeShield Security (See Overview)
  • Guest Network: 1 x 5 GHz & 1 x 2.4 GHz
  • WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

• DHCP:

  • Address Reservation
  • DHCP Client List
  • DHCP Server

• Port/NAT Forwarding:

  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP

• VPN Support:

  • VPN Server:
    • OpenVPN Server
    • PPTP VPN Server
    • L2TP VPN Server
    • WireGuard VPN Server
  • VPN Client:
    • Open VPN Client
    • PPTP VPN Client
    • L2TP VPN Client
    • WireGuard VPN Client

• Management:

  • Tether App
  • Webpage

• Dynamic DNS:

  • TP-Link
  • NO-IP
  • DynDNS

• USB Application:

  • NTFS, exFAT, HFS+, FAT32
  • FTP Server
  • Media Server
  • Samba Server

• Environment:

  • Operating Temperature: 0C40C (32F104F)
  • Operating Humidity: 10%~90% RH

• Package Contents:

  • Wi-Fi 7 Router Archer BE230
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

• Warranty: 3 Years
