TP-LINK Aginet (EX530v) AX3000 Dual Band Wi-Fi 6 VoIP Router EasyMesh Remote Management GB WAN/LAN 1x Phone Ports USB

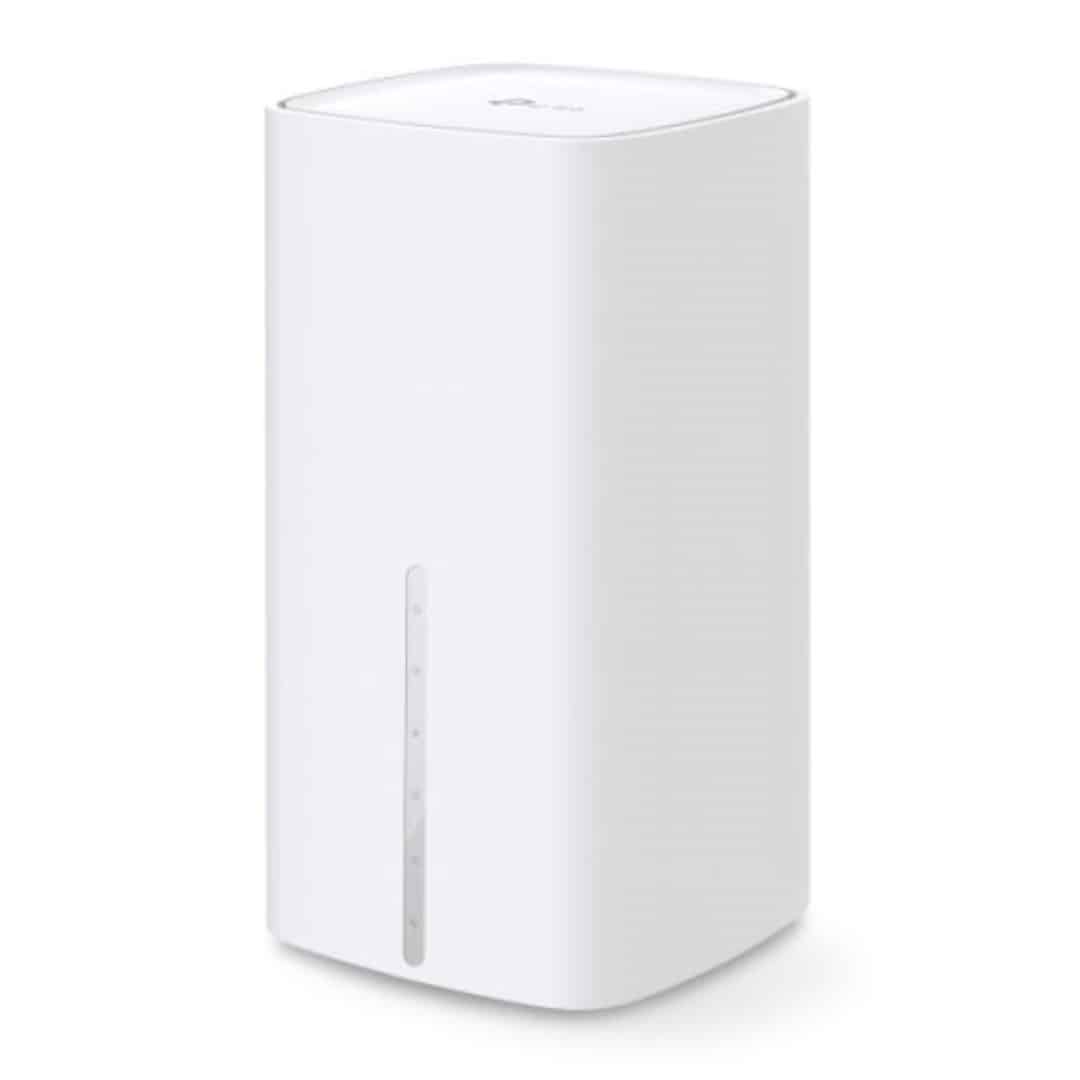

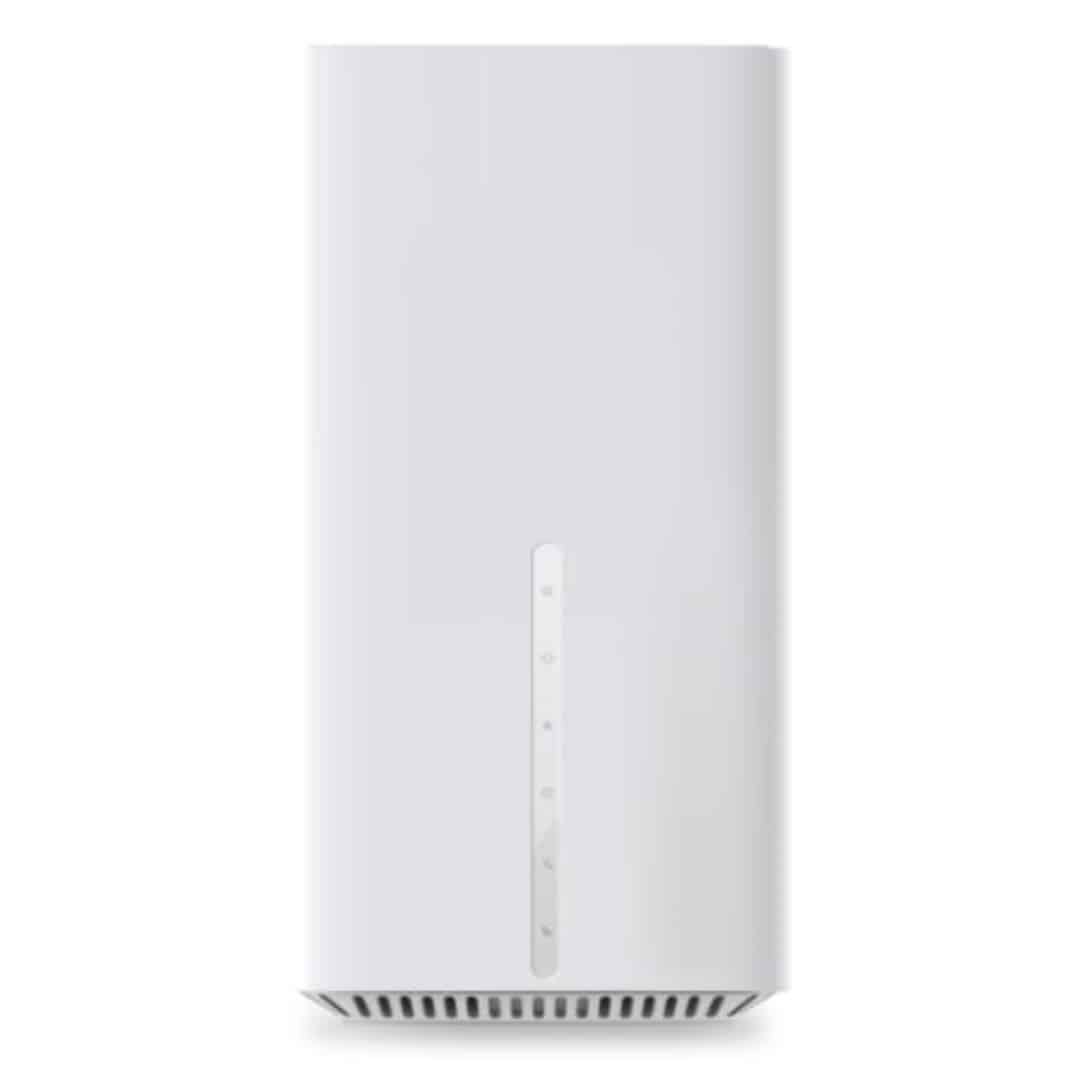

AX3000 Dual Band Wi-Fi 6 VoIP Router

• Dual-Band WiFi 6: Speeds up to 3000 Mbps2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Boosted Coverage: High-performance internal antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
• More Efficient Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
• EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
• Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
• Gigabit Wired Connections: 1 gigabit WAN port and 3 gigabit LAN ports provide fast and flexible internet access.
• VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
• Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
• Remote Management: TAUC (TP-Link Aginet Unified Cloud), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported.

Dual-Band WiFi 6 Up to 3.0 Gbps
Wi-Fi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Both the 2.4 GHz band and 5 GHz band get upgraded to the latest generationperfect for 4K/8K streaming, online gaming, and fast downloading.

More Connections at High Speed
Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.

• OFDMA: Separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
• MU-MIMO: Simultaneously transfers data to multiple devices for 2 faster performance.

Extensive WiFi Coverage

• Beamforming Technology: Adapts WiFi coverage to fit your home and concentrates signal strength towards every device.
• 3T3R Antenna: 3 transmitters + 3 receivers architecture delivers stronger signals and higher throughput on the 5 GHz band.

Create Smart Mesh WiFi with Greater Flexibility
Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh AP for seamless whole-home coverage.

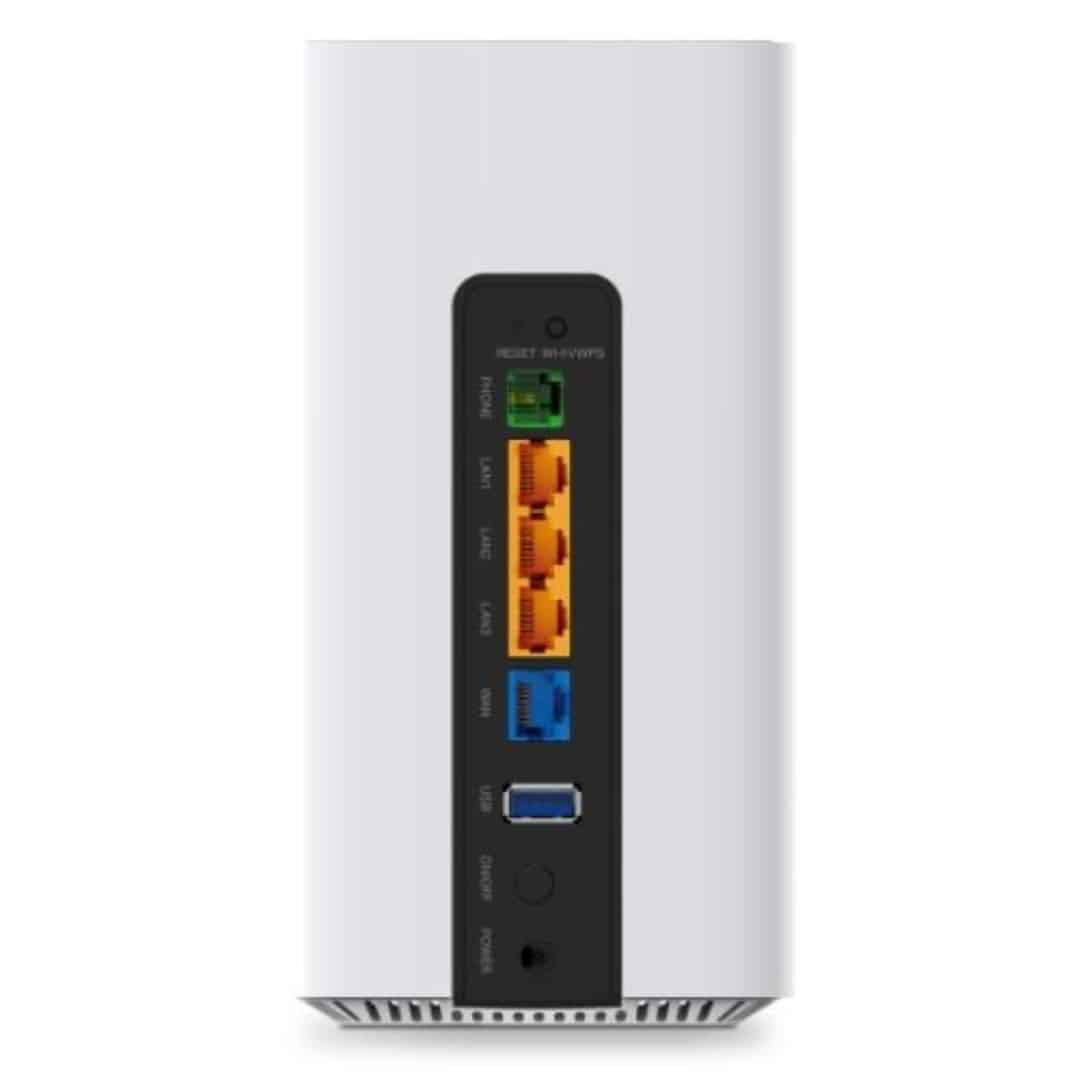

Gigabit Wired Connections and More
Gigabit Ethernet ports allow full use of broadband speed up to 1 Gbps. Plug in PCs, smart TVs, and game consoles into any of the three Gigabit Ethernet LAN ports. The USB 3.0 port supports high-speed file sharing within your network, up to 10 faster than USB 2.0.

Convenient VoIP Calls over the Internet
EX530v integrates a high-performance phone system. Connect an analog phone to the router and enjoy voicemail storage and features like caller ID, call waiting, call holding, and call forwardingsurpassing traditional landlines.

Robust Network Protection

• WPA3 Security: Higher password safety and protection against brute-force attacks.
• Parental Controls: Block inappropriate content and restrict online time.
• Multi-SSID: Create separate networks for visitors while keeping your main network secure.

Easy to Set Up and Use
Set up your device and network in minutes via the Aginet app or the intuitive web interface. The app allows you to manage your network from a smartphone or tablet.

Support TR-069 Remote Management
ISPs can remotely configure and manage devices via their ACS system or Aginet ACS. Supports high-level operations via TR-181, TR-111, and TR-143 protocols.

Aginet Solution: End-to-End Management Platform for ISPs
Aginet offers powerful platforms for ISPs to manage devices for connected homes, dynamic service provisioning, zero-touch firmware upgrades, and remote troubleshooting/mesh WiFi diagnostics.

Specifications:

• Type: VoIP Router

• Connectivity: Wireless

• Wi-Fi Rating: AX3000

• Max Single Band Wi-Fi Rate: 2402 Mbps

• Max Wired Transfer Rate: 10/100/1000 Mbps

• Bands: Dual Band

• Signal Rate:

  • 5 GHz: 2402 Mbps
  • 2.4 GHz: 574 Mbps

• Interface(s):

  • 1 x 10/100/1000 Mbps RJ45 WAN
  • 3 x 10/100/1000 Mbps RJ45 LAN
  • 1 x Phone Port
  • 1 x USB 3.0

• Standards:

  • IEEE 802.11 ax/ac/n/a (5 GHz)
  • IEEE 802.11 ax/b/g/n (2.4 GHz)

• Frequency:

  • 2.4 GHz and 5 GHz

• Button(s):

  • Power On/Off Button
  • Reset Button
  • WPS/Wi-Fi Button

• Power Supply:

  • External Power Supply: 12V/2.0A

• Antenna(s):

  • Internal Antennas

• Dimensions:

  • 99 x 99 x 190 mm

• Wireless Functions:

  • Enable/Disable Wireless Radio
  • WMM
  • Air Time Fairness
  • Wireless Statistics
  • MAC Filtering

• Security:

  • Wireless Security: WPA/WPA2/WPA3 Encryptions
  • IPv4/IPv6 SPI Firewall
  • DDoS Protection
  • Service Filtering
  • Access Control
  • IP&MAC Binding

• DHCP:

  • DHCP Client
  • DHCP Server
  • DHCP Relay
  • Address Reservation
  • Condition Pool

• Port/NAT Forwarding:

  • Virtual Server
  • Port Triggering
  • DMZ
  • ALG
  • UPnP

• VPN Support:

  • PPTP
  • IPSec
  • OpenVPN

• Management:

  • Local Management: WebGUI, Aginet app (for end users)
  • Remote Management: Aginet ACS, TR-069, TR-181, TR-369, TR-111, TR-143 for service providers
  • Cloud Management: TP-Link Aginet Unified Cloud (TAUC)

• Dynamic DNS:

  • NO-IP
  • DynDNS

• USB Application:

  • Samba
  • FTP
  • Media Server

• Additional Features:

  • VoIP
  • Parental Controls
  • Firewall
  • Address Reservation
  • QoS (Quality of Service)
  • CWMP
  • Network Diagnosis
  • Traffic Statistics
  • 1024-QAM
  • MU-MIMO
  • OFDMA
  • Cloud upgrade

• Environment:

  • Operating Temperature: 0C40C (32F 104F)
  • Storage Temperature: -40C60C (-40F 140F)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

• Package Contents:

  • 1 x Wi-Fi 6 VoIP Router EX530v
  • 1 x Power Adapter
  • 1 x RJ45 Ethernet Cable
  • 1 x RJ11 Cable
  • 1 x Quick Installation Guide

• Warranty: 3 Years
