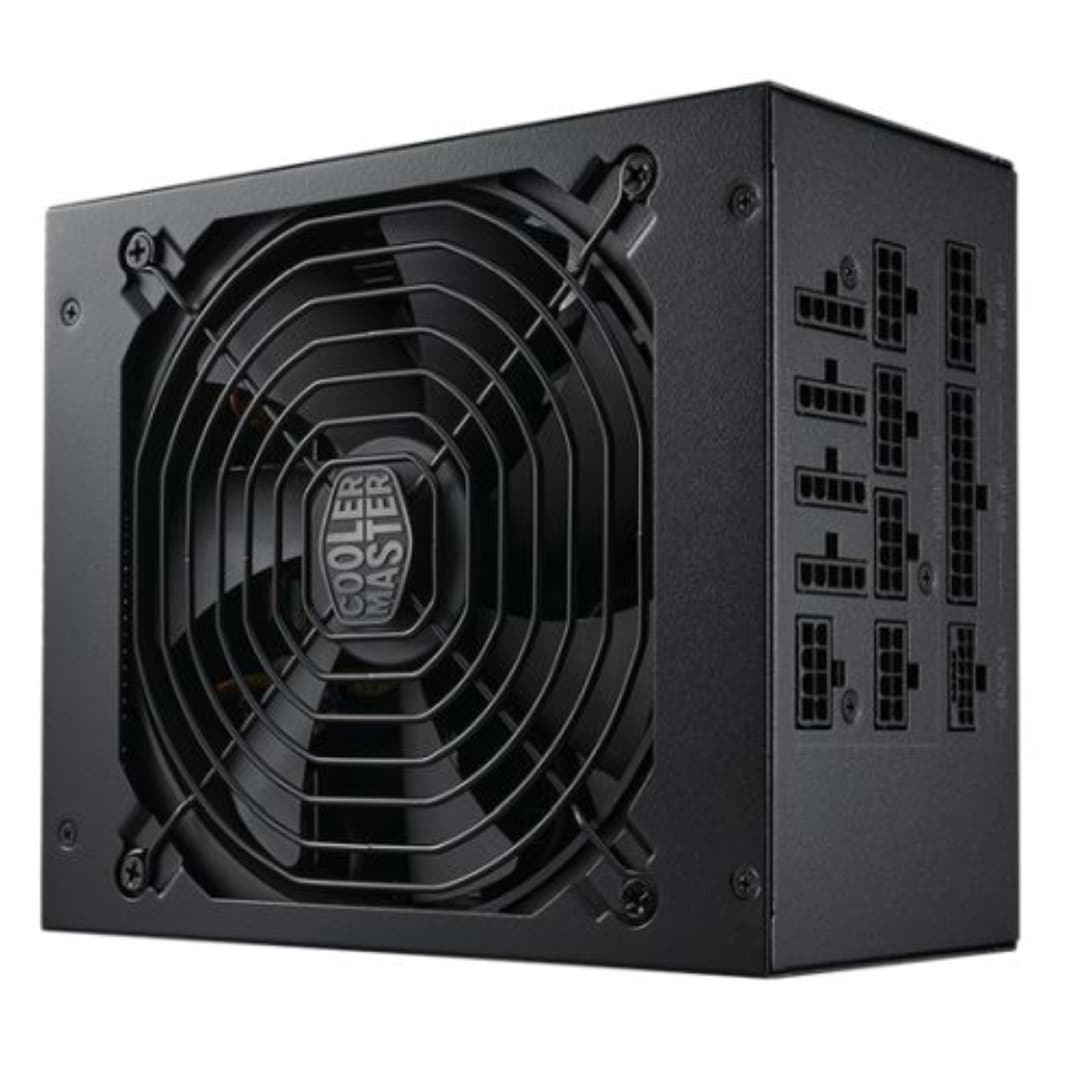

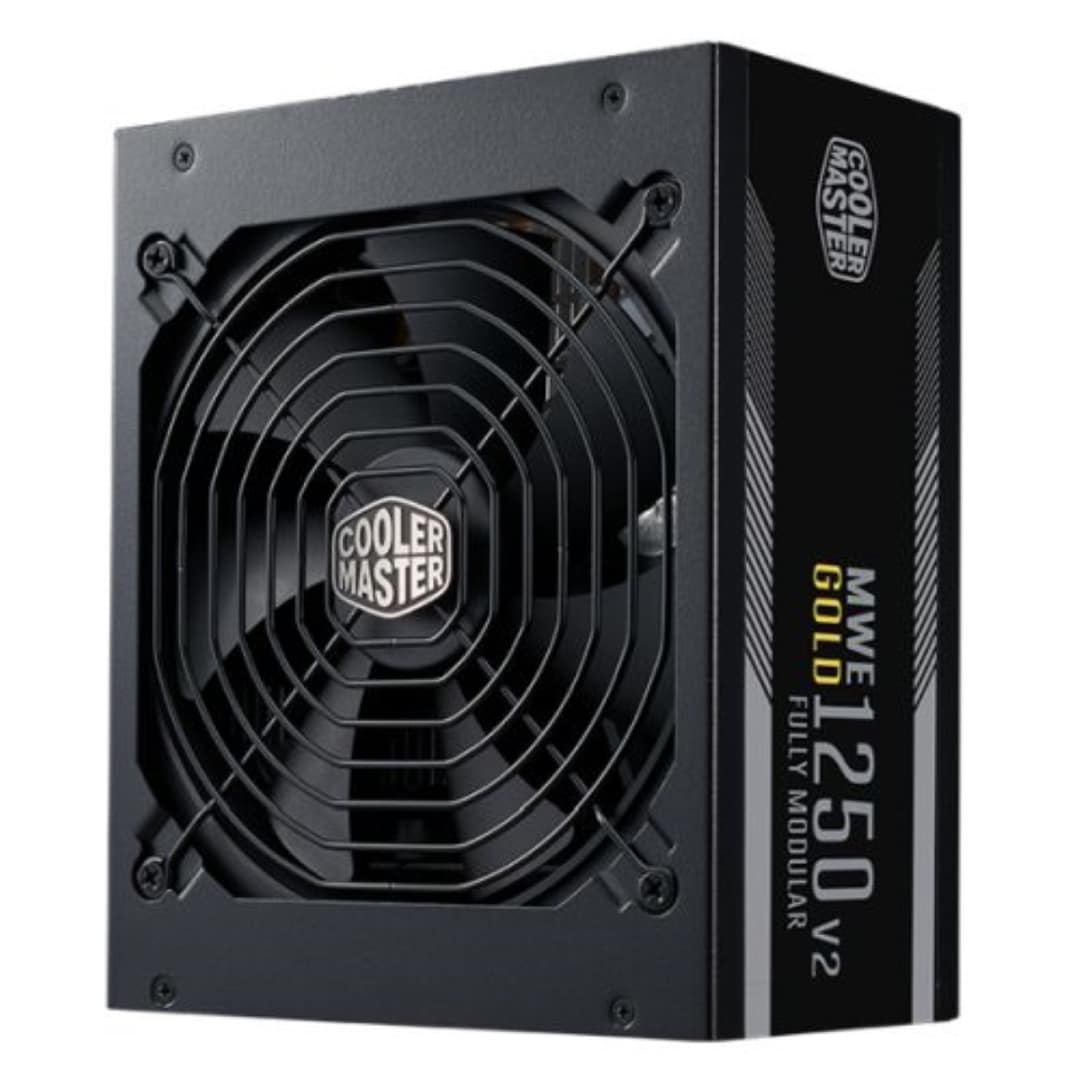

Cooler Master 1250W MWE Gold V2 ATX 3.1 PSU Fully Modular FDB Bearing Fan 80+ Gold

ATX 3.1 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit

• 80 PLUS Gold Efficiency
• High-quality Japanese capacitors
• 140mm Silent Fan
• High-Temperature Resilience
• Fully Modular Cabling
• 10 Year Warranty

100% ATX 3.1 Compatible

Cooler Master took the initiative and continuously developed our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2×6 connectors, the MWE Gold 1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and the hole system.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at a typical load.

Quiet Cooling

The MWE Gold 1250 V2 ATX 3.1 has been optimized with a 140mm fan along with an advanced fluid-dynamic bearing (FDB) ddeliveringquiet and effective cooling with a long lifespan. With the Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.

*The fan curve is tested under the ambient temperature of 25 degrees Celsius and the core temperature is related to the load.

Industrial-grade Temperature Resilience

The MWE Gold 1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computers, overclocking,g and other high-intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

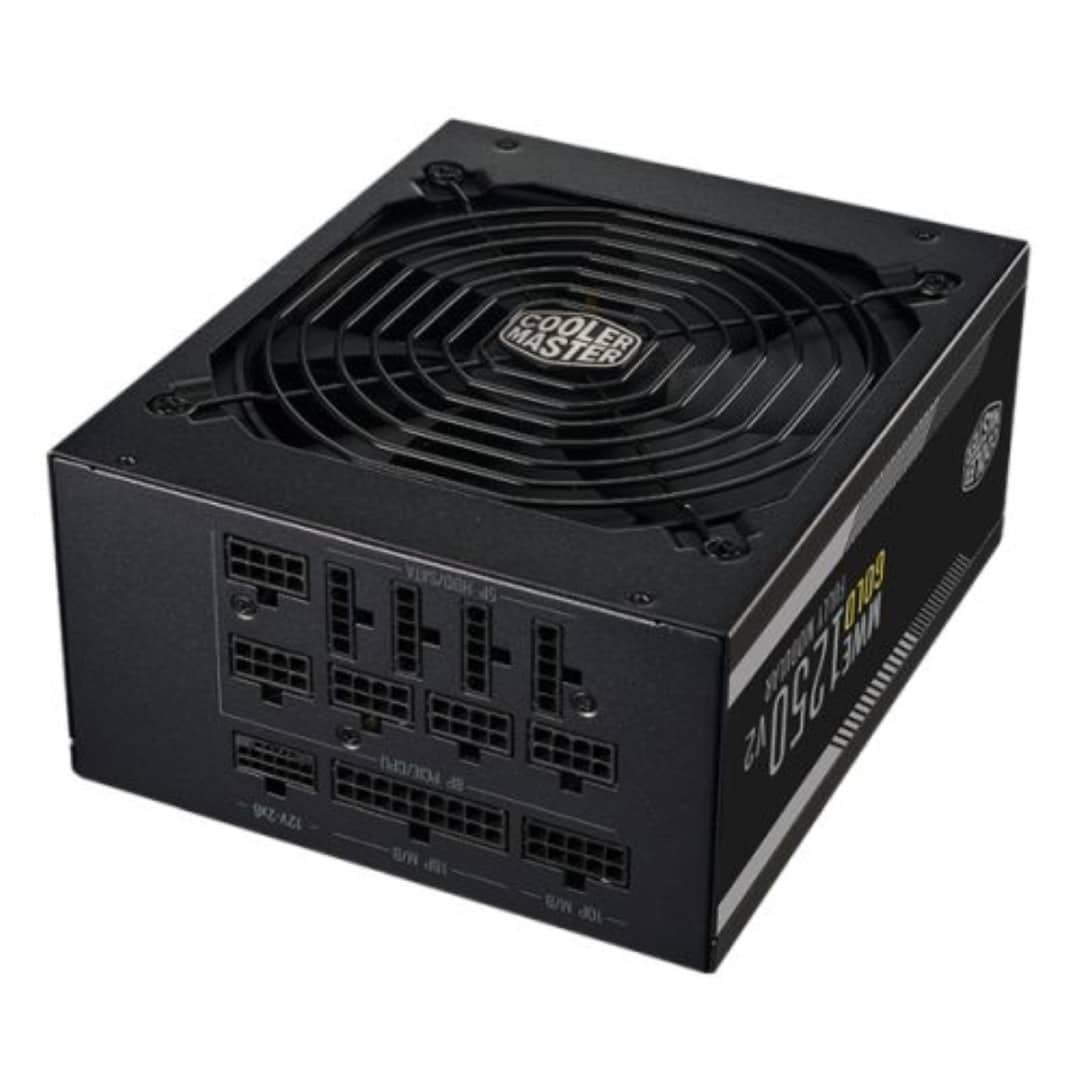

Fully Modular Cabling

The fully modular version of the MWE Gold 1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user’s individual needs. It’s designed for easy cable managementandt each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow, andaestheticsc, thereby improving your system’s overall cooling.

Specifications:

• Form Factor: ATX

• Series: Cooler Master MWE

• Wattage: 1250 W

• Modular: Fully Modular

• Compatibility: ATX 12V Ver. 3.1

• Connectors:

  • Power:
    • 1 x AT24-Pinin
    • 1 x EPS 4+4 Pin
    • 1 x EPS 8-Pin
  • Storage Devices:
    • 12 x SATA
    • 4 x Peripheral 4-Pin
  • Graphics Cards:
    • 3 x PCI-e 6+2 Pin
    • 1 x 12V-2×6

• AC Input: 100-240V

• PFC: Active PFC

• Fan:

  • Type: 140mm Fluid Dynamic Bearing Fan
  • Bearing: Fluid / Hydraulic Bearing

• 80+ Certification: 80+ Gold

• Efficiency: Up to 90% @ Typical Load

• MTBF: 100,000 Hours

• Protections:

  • OVP (Over Voltage Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • OCP (Over Current Protection)
  • UVP (Under Voltage Protection)
  • OTP (Over Temperature Protection)
  • Inrush Protection

• Weight/Dimensions:

  • Dimensions (LxWxH): 180 x 150 x 86 mm
  • Package Weight: 3.45 kg

• Warranty: 10 Years
