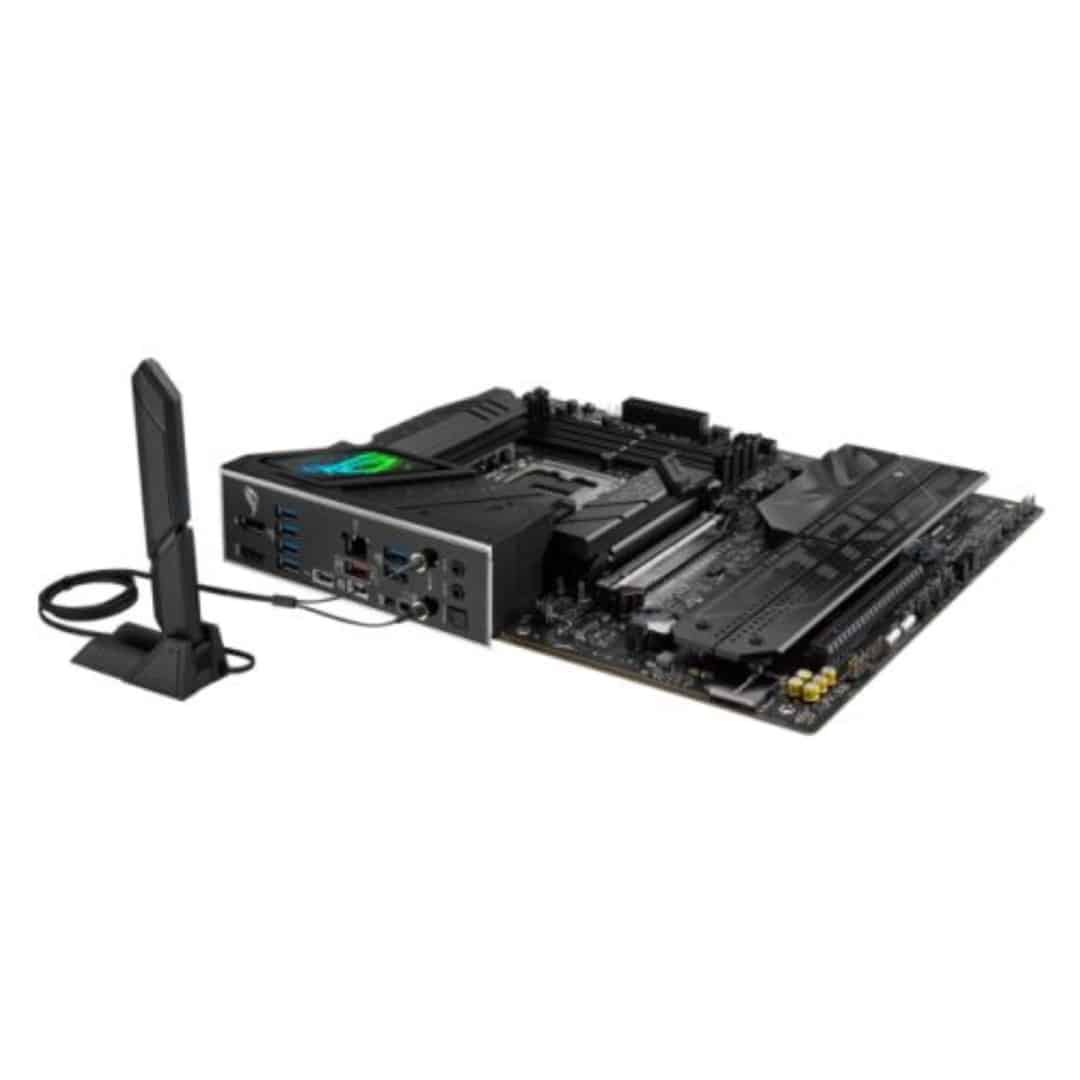

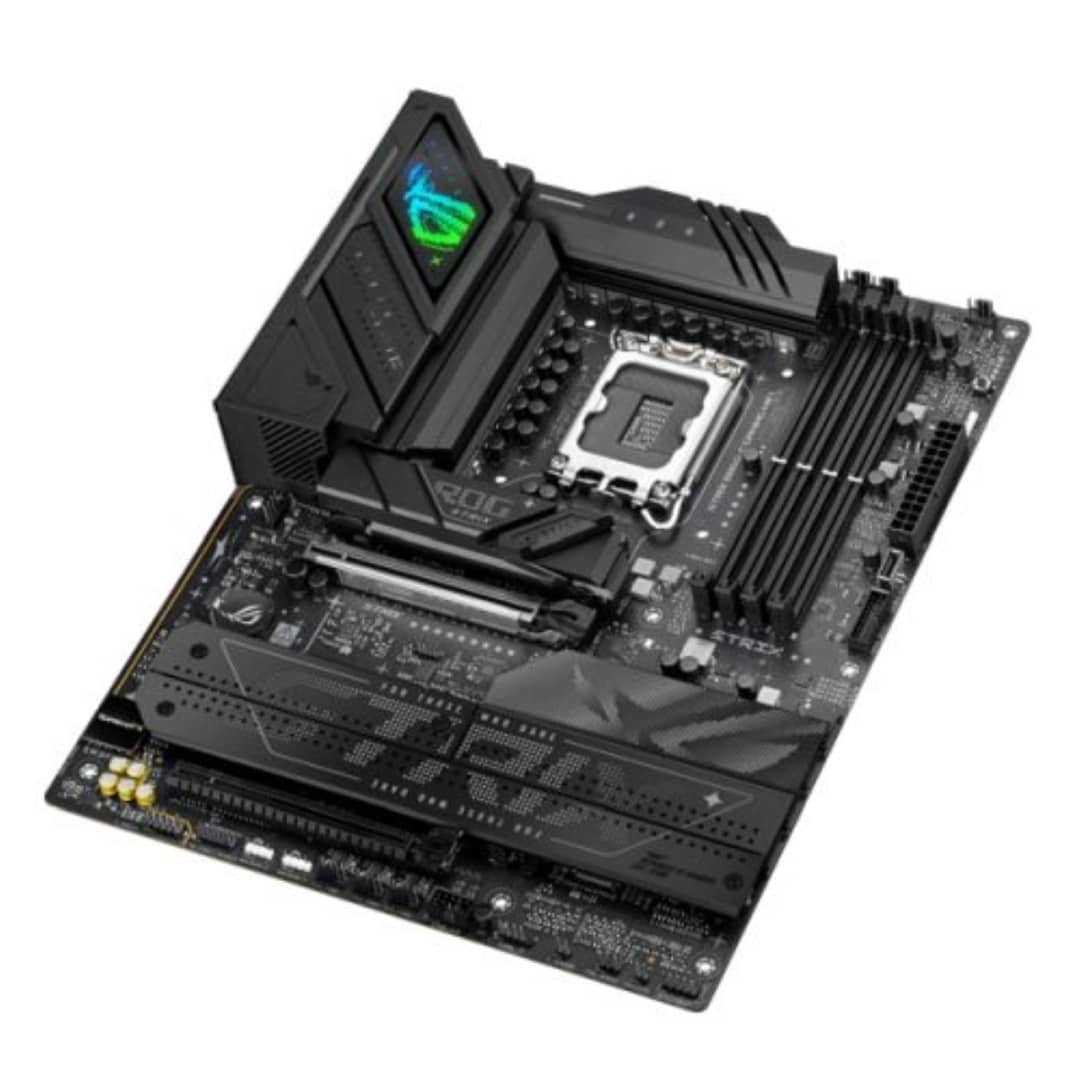

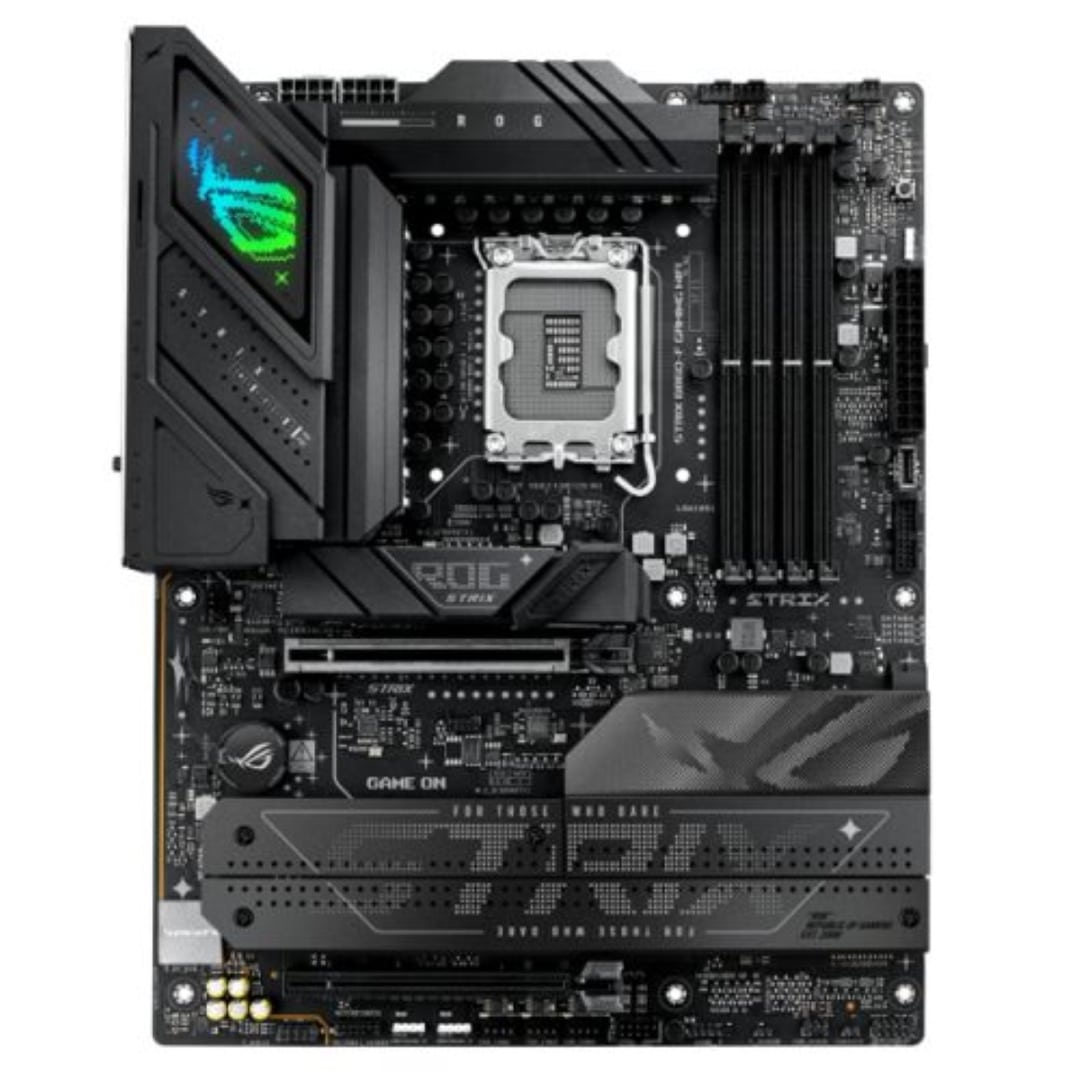

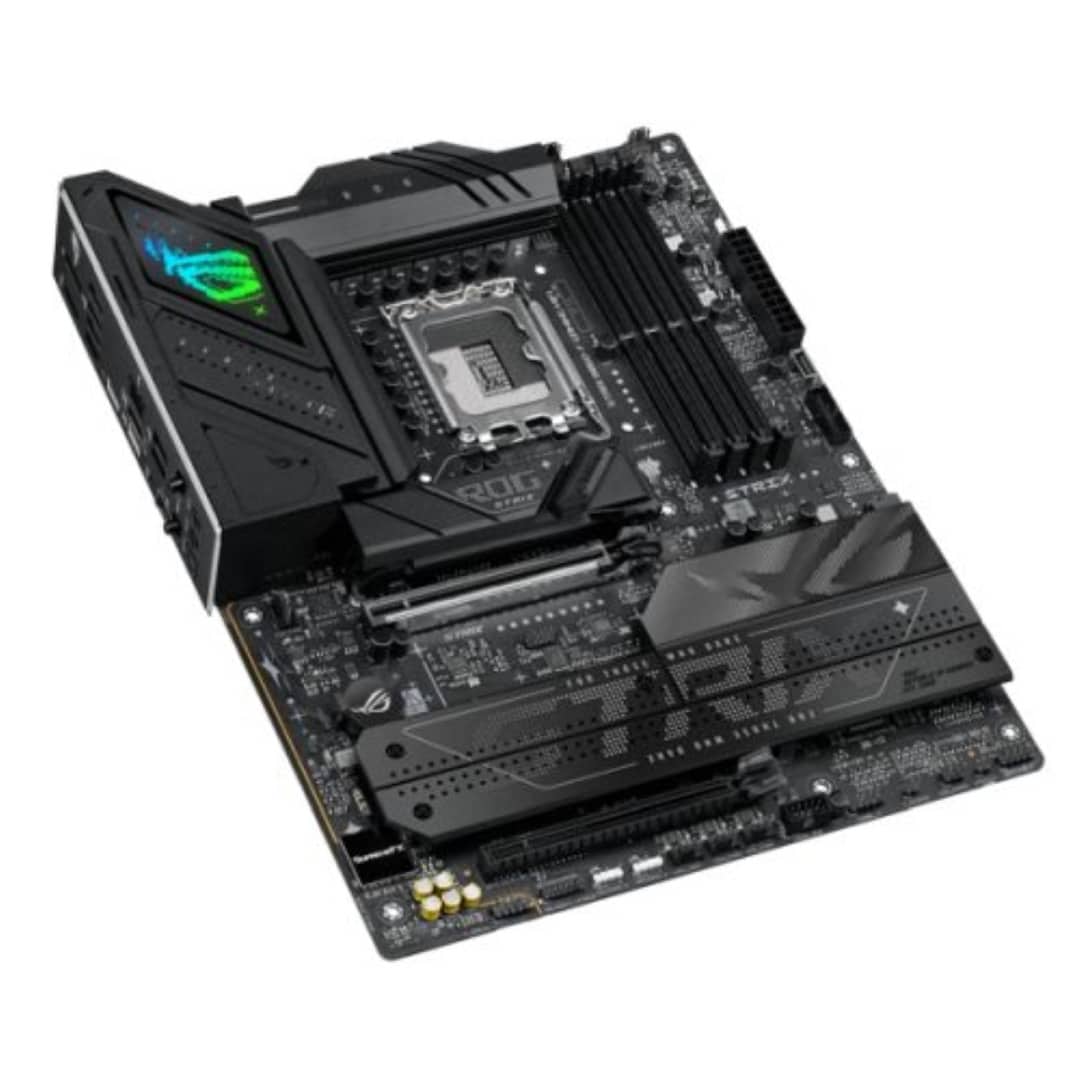

Asus ROG STRIX B860-F GAMING WIFI Intel B860 1851 ATX 4 DDR5 HDMI DP TB4 Wi-Fi 7 2.5G LAN RGB 4x M.2

The ROG STRIX B860-F Gaming WiFi

The ROG STRIX B860-F Gaming WiFi is a premium Intel B860 LGA 1851 ATX motherboard designed for enthusiasts seeking high-performance gaming and AI-driven capabilities. With features like Thunderbolt 4, PCIe 5.0, and Aura Sync RGB lighting, it provides ultra-fast data transfer speeds, exceptional connectivity, and a customizable aesthetic. This motherboard is built to support next-gen graphics and is ready for advanced AI applications, ensuring your PC remains at the forefront of performance and style.

Key Features

Chipset and Architecture

• Intel B860 LGA 1851 ATX motherboard
• Advanced AI PC-ready with AI-enhanced features
• NPU Boost for improved AI workflows
• Thunderbolt 4 Port (40 Gbps bidirectional bandwidth)
• WiFi 7 with ASUS WiFi Q-Antenna for optimal wireless connectivity

Power Delivery and Overclocking

• 16+1+2+1 Power Stages, rated for up to 80 amps per stage
• NPU Boost for up to 24% increase in performance via BIOS overclock
• Asynchronous Clock Generator to isolate CPU base clock for overclocking flexibility
• PCIe 5.0 and DDR5 slots for the latest high-speed components

Memory and Storage

• AEMP III (ASUS Enhanced Memory Profile III) for optimal memory performance
• Four M.2 Slots with M.2 Q-Release and PCIe 5.0 NVMe SSD Slot
• DDR5 Domination with high-speed signal routing for up to 9 GT/s

Cooling and Thermals

• M.2 Heatsinks for efficient cooling of NVMe SSDs
• VRM Heatsink Array for enhanced airflow and cooling of power delivery
• CPU Fan and AIO Pump Headers for flexible cooling solutions
• Four 4-Pin Chassis Fan Headers with PWM/DC detection

Audio and Connectivity

• SupremeFX Audio with ALC4080 codec for high-resolution sound up to 32-bit/384 kHz
• Intel 2.5Gb Ethernet for fast wired connections
• USB 20Gbps Type-C rear I/O port and Thunderbolt 4 for ultra-fast external device connectivity
• Dolby Atmos for immersive gaming audio

EZ PC DIY Features

• PCIe Slot Q-Release Slim for tool-free GPU removal
• M.2 Q-Latch for easy SSD installation/removal
• Clear CMOS & BIOS FlashBack for safe and simple BIOS updates
• Q-LED troubleshooting lights for quick diagnostics during PC builds

BIOS and Software Utilities

• UEFI BIOS Full HD for intuitive configuration and overclocking
• TurboV Core for intuitive overclocking within Windows
• Armoury Crate for centralized control of system lighting and fan settings
• Asus Driver Hub for seamless driver and utility management

Design and Aesthetics

• Aura Sync RGB Lighting for customizable lighting effects that sync with compatible devices
• Sleek black PCB with vibrant accents for a visually striking build
• Undeniably ROG Strix with bold design elements to complement your gaming setup

Advanced AI Features

Asus AI Advisor: Leverages AI technology to simplify the exploration of advanced motherboard features. AI Networking II: Continuously optimizes network performance for seamless, low-latency connectivity.

Cooling and Thermal Design

• Optimized cooling with M.2 Heatsinks, VRM Heatsink Array, and multiple fan headers ensures efficient thermal management even during high-performance workloads.

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1851
• Chipset: Intel B860
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  • Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  • Supports Intel XMP
  • Supports DIMM FIT
  • ASUS Enhanced Memory Profile III
  • *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 9066MT/s (OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  • Graphics specifications may vary between CPU types
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
• PCI/PCI Express:
  • Intel Core Ultra CPUs (Series 2):
    • 1 x PCIe 5.0 x16 (supports x16)
  • Intel B860 Chipset:
    • 1 x PCIe 4.0 x16 (supports x4 mode)
• Storage:
  • 4 x SATA III
  • 4 x M.2
  • Intel Core Ultra CPUs (Series 2):
    • M.2_1 (2242/2260/2280) – PCIe 5.0 x4
  • Intel B860 Chipset:
    • M.2_2 (2280) – PCIe 4.0 x4
    • M.2_3 (2280/22110) – PCIe 4.0 x4
    • M.2_4 (2280) – PCIe 4.0 x4
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless:
  • Wi-Fi 7
  • 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth: v5.4
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported:
  • Rear:
    • 1 x Thunderbolt 4 (USB Type-C)
    • 1 x USB 20Gbps Type-C
    • 1 x USB 10Gbps Type-A
    • 6 x USB 5Gbps Type-A
  • Front:
    • 1 x USB 10Gbps Type-C
    • 2 x USB 5Gbps
    • 3 x USB 2.0
• Back Panel I/O Ports:
  • 1 x Thunderbolt 4 (USB Type-C)
  • 1 x USB 20Gbps Type-C
  • 1 x USB 10Gbps Type-A
  • 6 x USB 5Gbps Type-A
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button
• Internal I/O Connectors:
  • 1 x 4-pin CPU Fan
  • 1 x 4-pin CPU OPT Fan
  • 1 x 4-pin AIO Pump
  • 4 x 4-pin Chassis Fan
  • 1 x 24-pin Main
  • 2 x 8-pin +12V CPU
  • 4 x M.2 (Key M)
  • 4 x SATA 6Gb/s
  • 1 x USB 10Gbps Type-C
  • 1 x USB 5Gbps
  • 2 x USB 2.0
  • 3 x Addressable Gen2
  • 1 x Chassis Intrusion
  • 1 x Front Panel Audio
  • 1 x Start button
  • 1 x 10-1 pin Front System Panel
  • 1 x Thermal Sensor
  • 1 x Thunderbolt (USB4)
• Accessories:
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch package
  • 1 x M.2 Q-Slide package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 4 x M.2 rubbers
  • 1 x Quick start guide
• Warranty: 3 Years
