Asus ROG STRIX B860-A GAMING WIFI Intel B860 1851 ATX 4 DDR5 HDMI DP USB4 Wi-Fi 7 2.5G LAN RGB 4x M.2

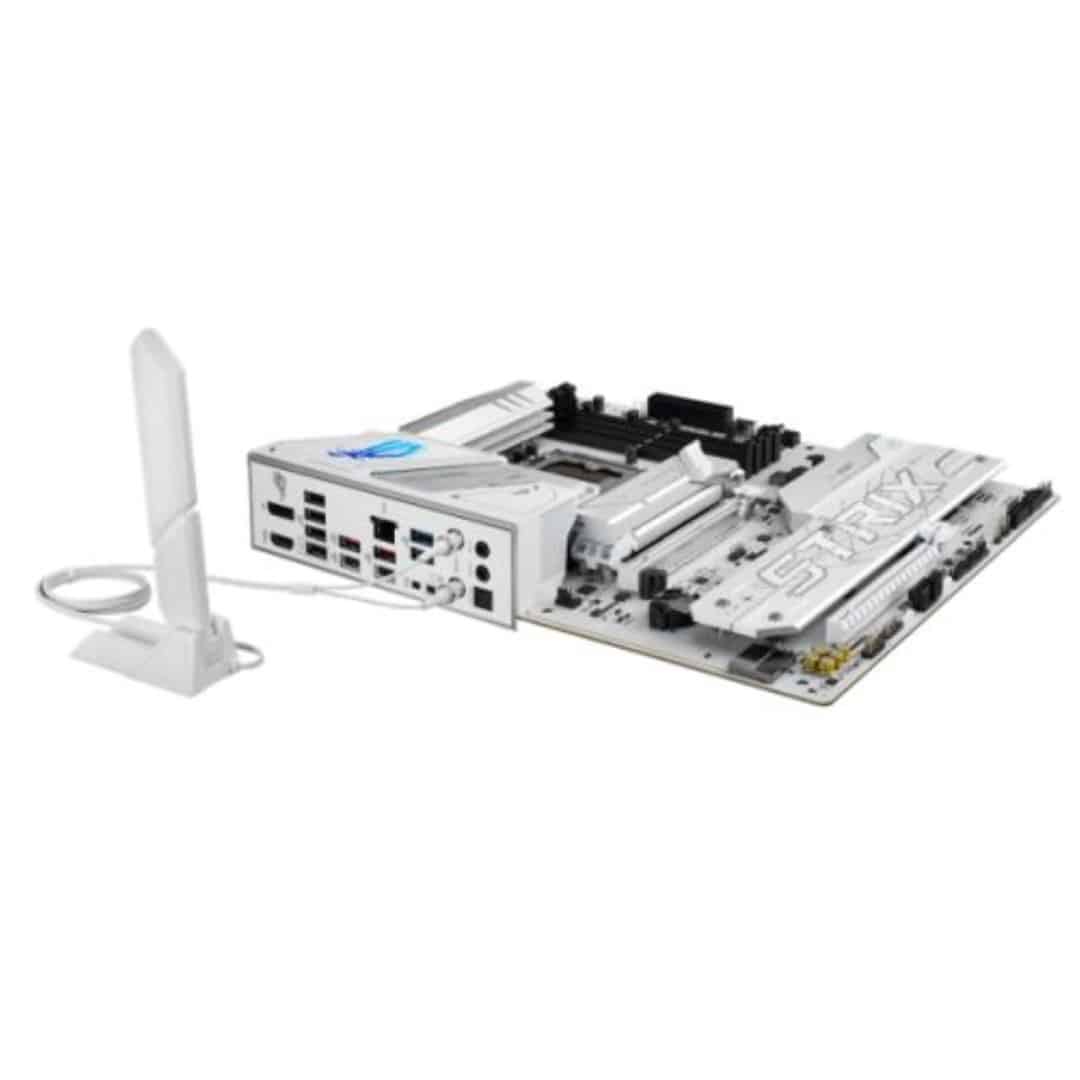

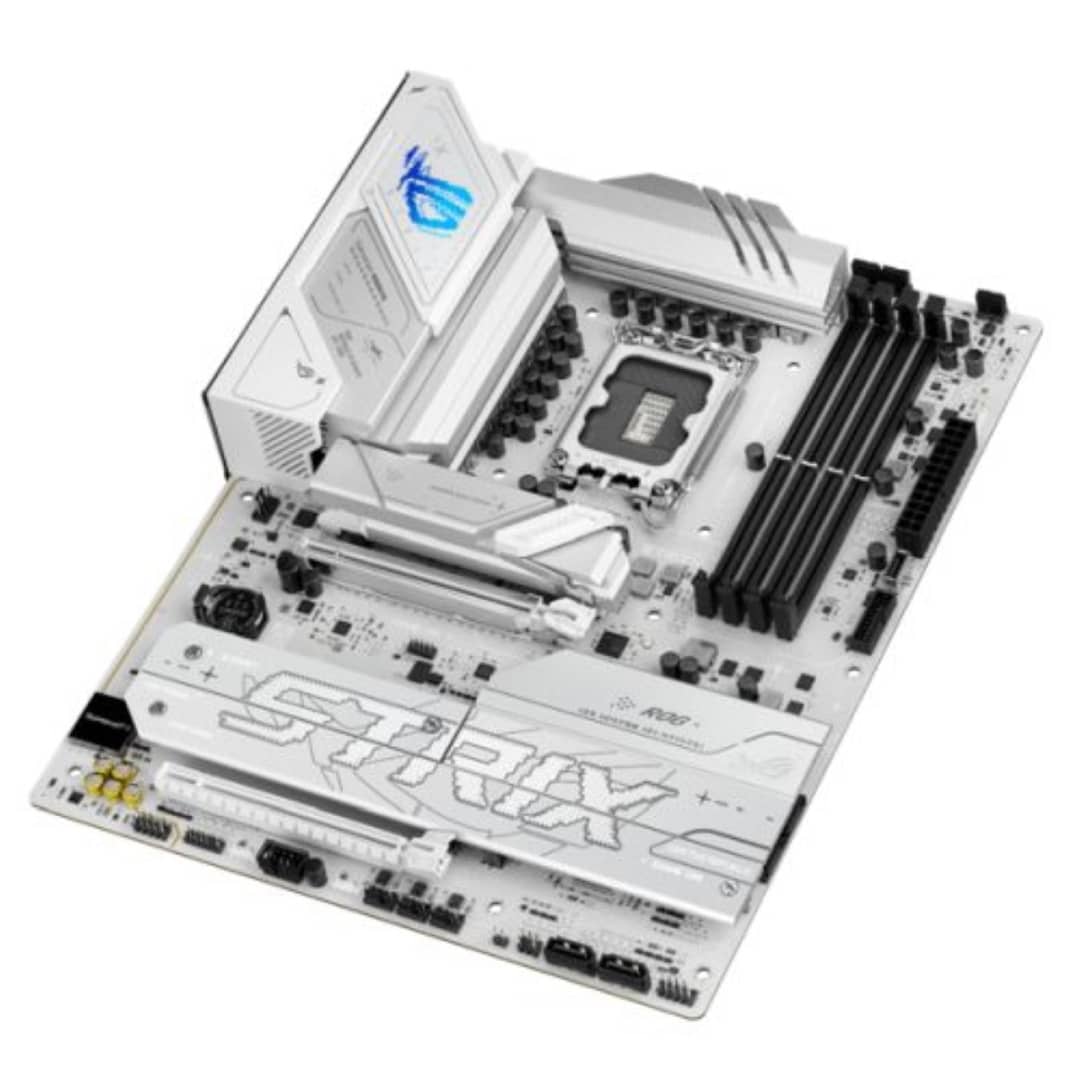

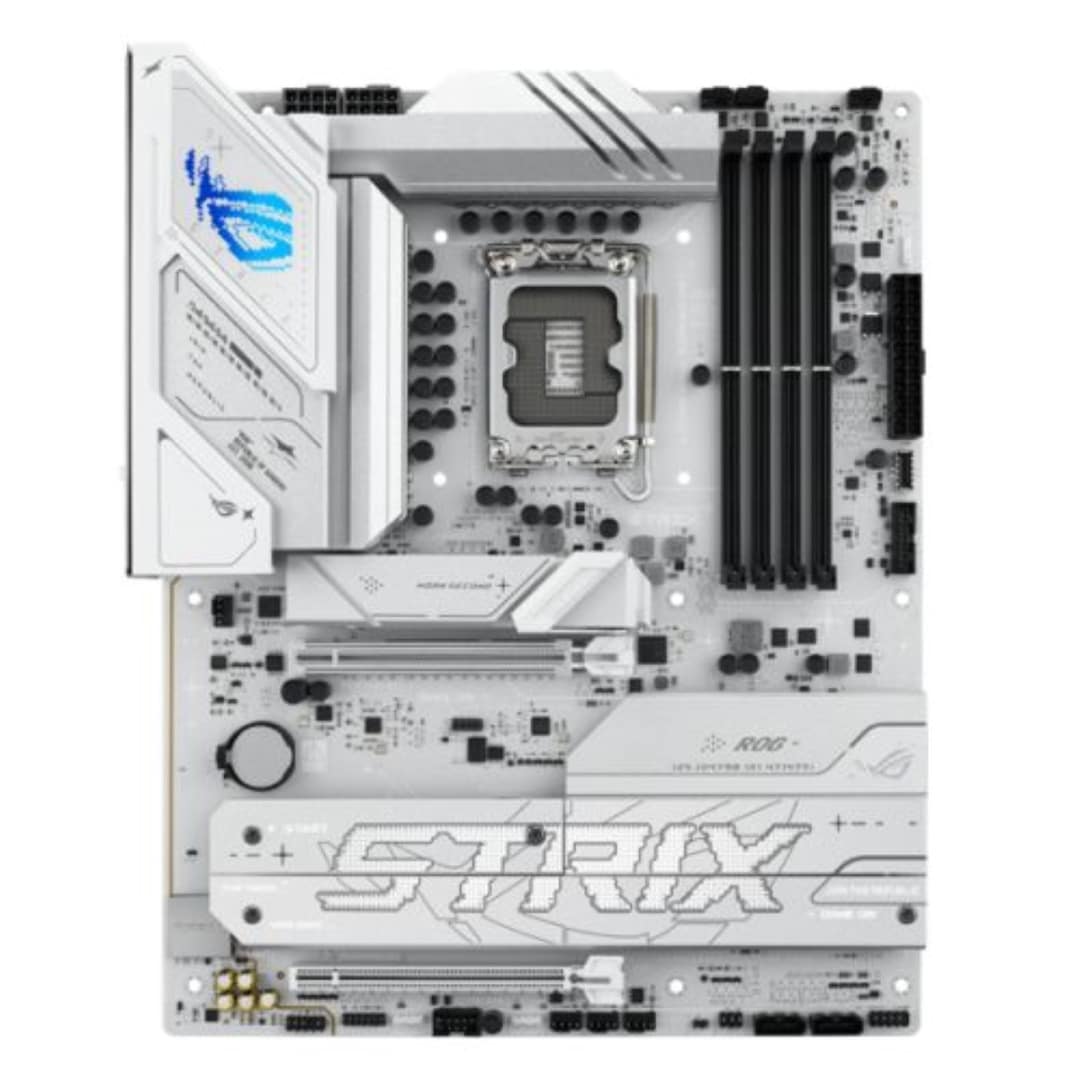

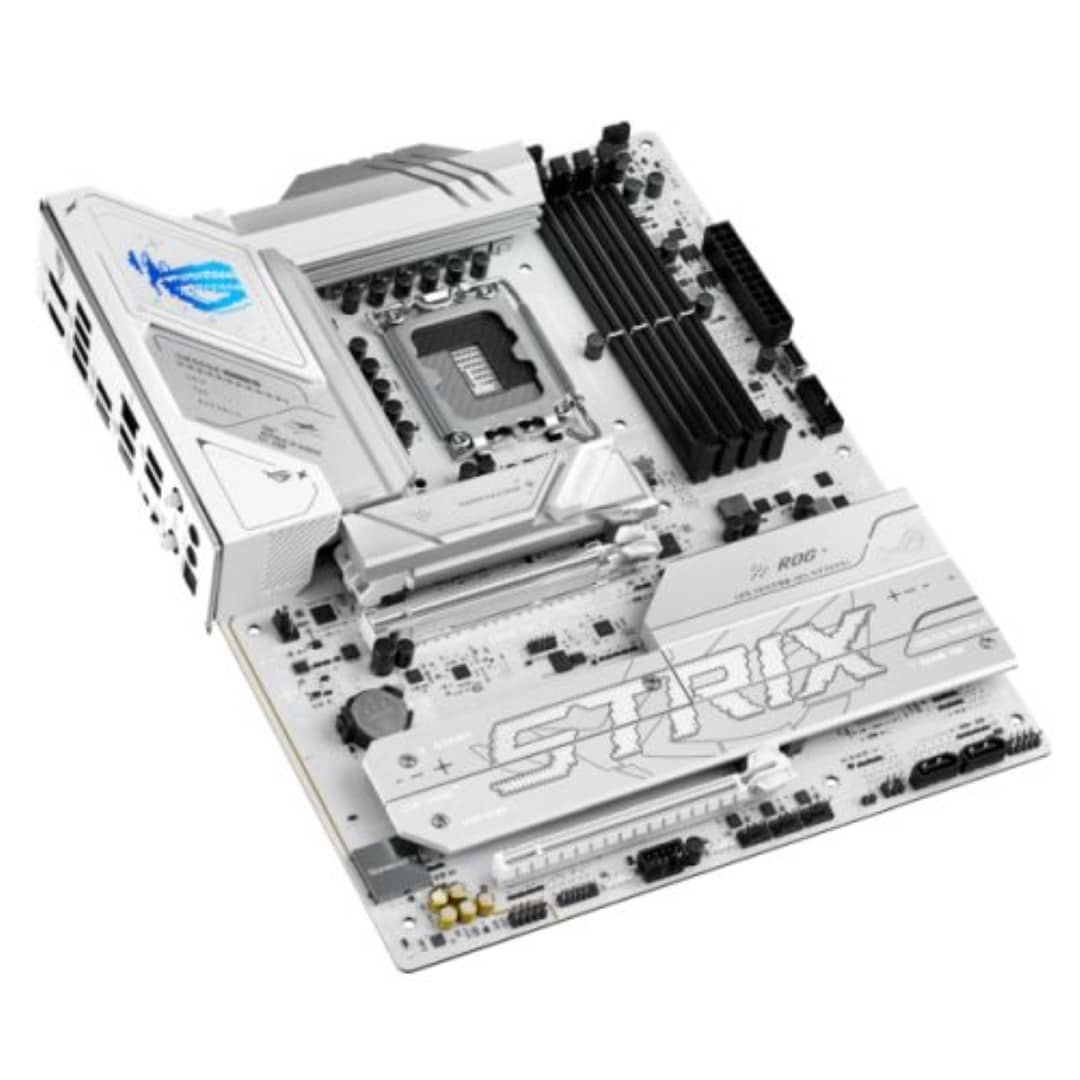

ROG STRIX B860-A Gaming WiFi
The ROG STRIX B860-A Gaming WiFi motherboard is designed to take your PC to the next level with cutting-edge features such as NPU support, AI-enhanced solutions, PCIe 5.0, and USB4 connectivity. Its sleek design, Aura Sync RGB lighting, and advanced cooling mechanisms make it ideal for gaming enthusiasts and content creators seeking unmatched performance and style.

Key Features

• Intel B860 LGA 1851 ATX motherboard
• AI-Ready: Integrated with ASUS AI Advisor, AI Networking II, and NPU Boost for enhanced performance.
• Advanced Connectivity: One USB4 (20Gbps) port, WiFi 7, and Intel 2.5Gb Ethernet.
• Next-Gen Performance: DDR5 slots, PCIe 5.0, and four M.2 slots, including a PCIe 5.0 NVMe SSD slot with M.2 Q-release.
• Customizable Aesthetic: Aura Sync RGB lighting for a personalized setup

AI-Enhanced Features

• Asus AI Advisor: An AI-driven tool for exploring advanced motherboard features using natural language queries.
• AI Networking II: Continuously optimizes network performance, ensuring seamless, high-speed WiFi 7 connectivity.

Overclocking & Performance

• NPU Boost: Overclock the integrated NPU in Intel Core Ultra Processors (Series 2) by up to 24% with a single click.
• Asynchronous Clock: Achieve maximum overclocking stability by isolating CPU base clock from other components, enhancing memory and NPU performance.

Memory Optimization

• DDR5 Domination: Push enthusiast-grade kits beyond 9 GT/s with superior signal routing.
• AEMP III: ASUS Enhanced Memory Profile III for cutting-edge memory performance.
• DIMM FIT: BIOS feature that analyzes and optimizes individual memory modules.

Power Design

• 14+1+2+1 Power Stages: Each stage rated for up to 80 amps for efficient power delivery.
• Alloy Chokes and Durable Capacitors: Hi-end components for superior performance under extreme conditions.
• Eight-Layer PCB: Superior heat dissipation for enhanced system stability and overclocking potential.

Cooling Solutions

• M.2 Heatsinks: Keeps onboard NVMe SSDs cool for consistent performance.
• VRM Heatsink Array: Dual thick heatsinks ensure optimal airflow and efficient heat dissipation.
• Comprehensive Fan Control: Includes PWM/DC fan headers and dedicated AIO pump fan headers for tailored cooling.

Connectivity

• WiFi 7: Ultra-fast speeds, low latency, and stability for seamless gaming and streaming.
• ASUS WiFi Q-Antenna: Dual transceivers for superior signal quality and coverage.
• Intel 2.5Gb Ethernet: Blazing-fast wired connection for lag-free gaming and high-res streaming.
• USB4 (20Gbps): High-speed data transfers up to 20Gbps for fast file handling and device compatibility.
• Dolby Atmos & SupremeFX Audio: Immersive audio with high-resolution playback for an enhanced gaming experience.

EZ PC DIY Features

• PCIe Slot Q-Release Slim: Effortlessly unlock PCIe cards with a simple tilt, no button press required.
• M.2 Q-Release and Q-Latch: Tool-free M.2 SSD installation and removal for ease of use.
• Q-LED: Troubleshooting LEDs to help builders diagnose system issues during startup.
• Clear CMOS & BIOS FlashBack: Quickly reset BIOS settings or update without a CPU or memory installed.

BIOS Features

• BIOS Q-Dashboard: Simplify motherboard configuration with an intuitive visual interface for hardware connections and BIOS settings.
• UEFI BIOS Full HD: Robust BIOS with easy-to-navigate settings, ideal for both beginners and experienced users.

Software Utilities

• TurboV Core: Perform intuitive overclocking without rebooting your system.
• ASUS GlideX: Share and control screens across devices for enhanced productivity.
• HWiNFO: Monitor system performance with detailed hardware diagnostics.
• AIDA64 Extreme: Access a 60-day subscription for in-depth system analysis and performance benchmarks.
• Armoury Crate: Centralized software for RGB lighting customization, fan control, and system optimization.

Design & Aesthetics

• ROG Strix Ultimate Style: Features a clean, white design with metallic heatsinks and customizable Aura Sync RGB lighting to complement any build.
• Outshine The Competition: Synchronize lighting effects across compatible ROG products for a unified look.

Specifications:

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1851
• Chipset: Intel B860
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  • Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
  • Supports Intel XMP
  • Supports DIMM FIT
  • ASUS Enhanced Memory Profile III
  • *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 9066MT/s (OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  • Graphics specifications may vary between CPU types
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x USB4 (20Gbps) supports USB Type-C display outputs
• PCI/PCI Express:
  • Intel Core Ultra CPUs (Series 2):
    • 1 x PCIe 5.0 x16
  • Intel B860 Chipset:
    • 1 x PCIe 4.0 x16 (supports x4 mode)
• Storage:
  • 4 x SATA III
  • 4 x M.2
  • Intel Core Ultra CPUs (Series 2):
    • M.2_1 (2242/2260/2280) – PCIe 5.0 x4
  • Intel B860 Chipset:
    • M.2_2 (2280) – PCIe 4.0 x4
    • M.2_3 (2280/22110) – PCIe 4.0 x4
    • M.2_4 (2280) – PCIe 4.0 x4
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless:
  • Wi-Fi 7
  • 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
• Bluetooth: v5.4
• LAN: 2.5GB LAN
• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported:
  • Rear:
    • 1 x USB4 20Gbps (USB Type-C)
    • 3 x USB 10Gbps ports (2 Type-A, 1 Type-C)
    • 2 x USB 5Gbps Type-A
    • 4 x USB 2.0
  • Front:
    • 1 x USB 10Gbps (USB Type-C)
    • 2 x USB 5Gbps
    • 2 x USB 2.0
• Back Panel I/O Ports:
  • 1 x USB4 20Gbps (USB Type-C)
  • 3 x USB 10Gbps ports (2 Type-A, 1 Type-C)
  • 2 x USB 5Gbps Type-A
  • 4 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button
• Internal I/O Connectors:
  • 1 x 4-pin CPU Fan
  • 1 x 4-pin CPU OPT Fan
  • 1 x 4-pin AIO Pump
  • 4 x 4-pin Chassis Fan
  • 1 x 24-pin Main
  • 2 x 8-pin +12V CPU
  • 4 x M.2 (Key M)
  • 4 x SATA 6Gb/s
  • 1 x USB 10Gbps Type-C
  • 1 x USB 5Gbps
  • 1 x USB 2.0
  • 3 x Addressable Gen2
  • 1 x Front Panel Audio
  • 1 x 10-1 pin Front System Panel
  • 1 x Thermal Sensor
  • 1 x Thunderbolt (USB4)
• Accessories:
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch
  • 1 x M.2 Q-Slide
  • 1 x ROG Strix stickers
  • 4 x M.2 rubbers
  • 1 x Quick start guide
• Warranty: 3 Years
