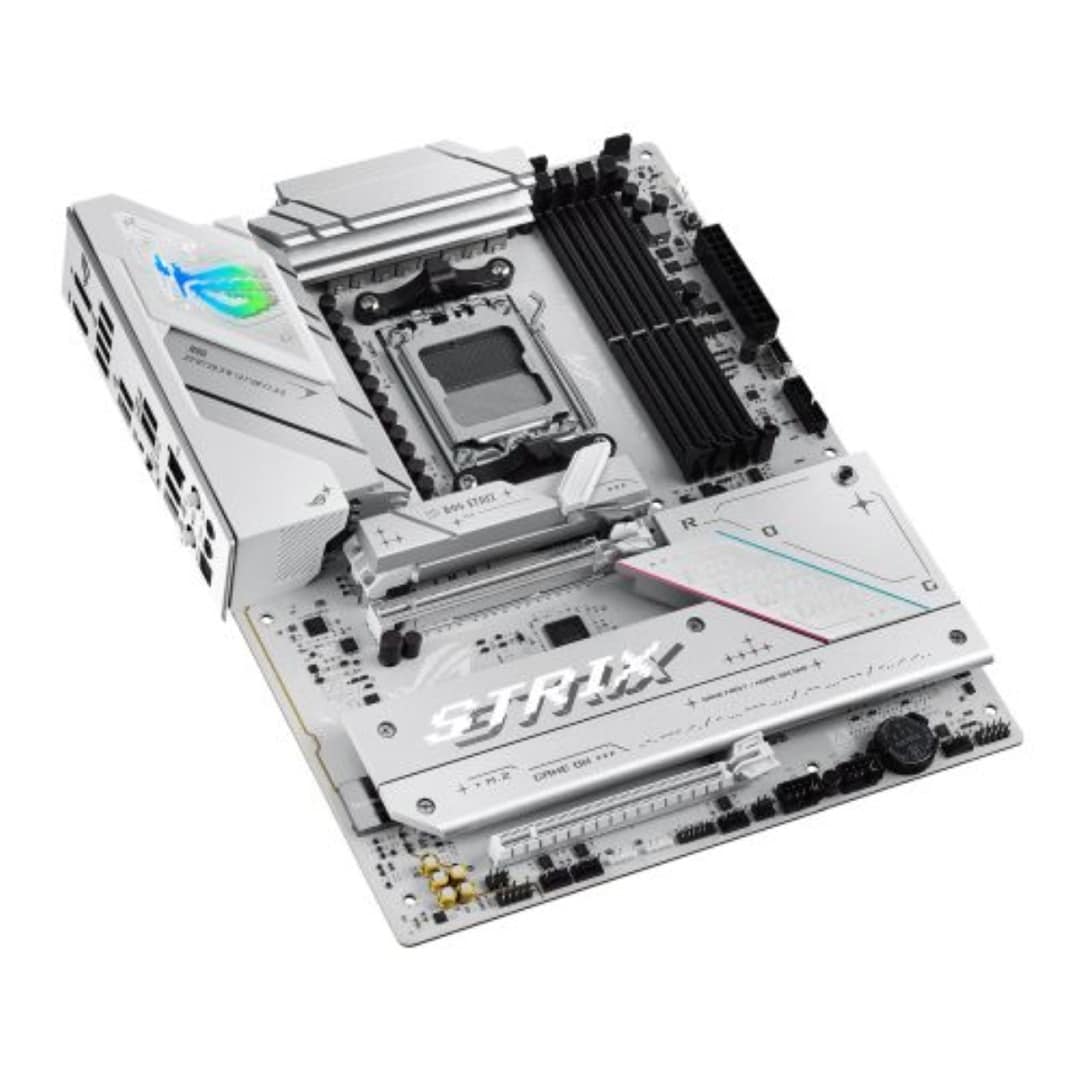

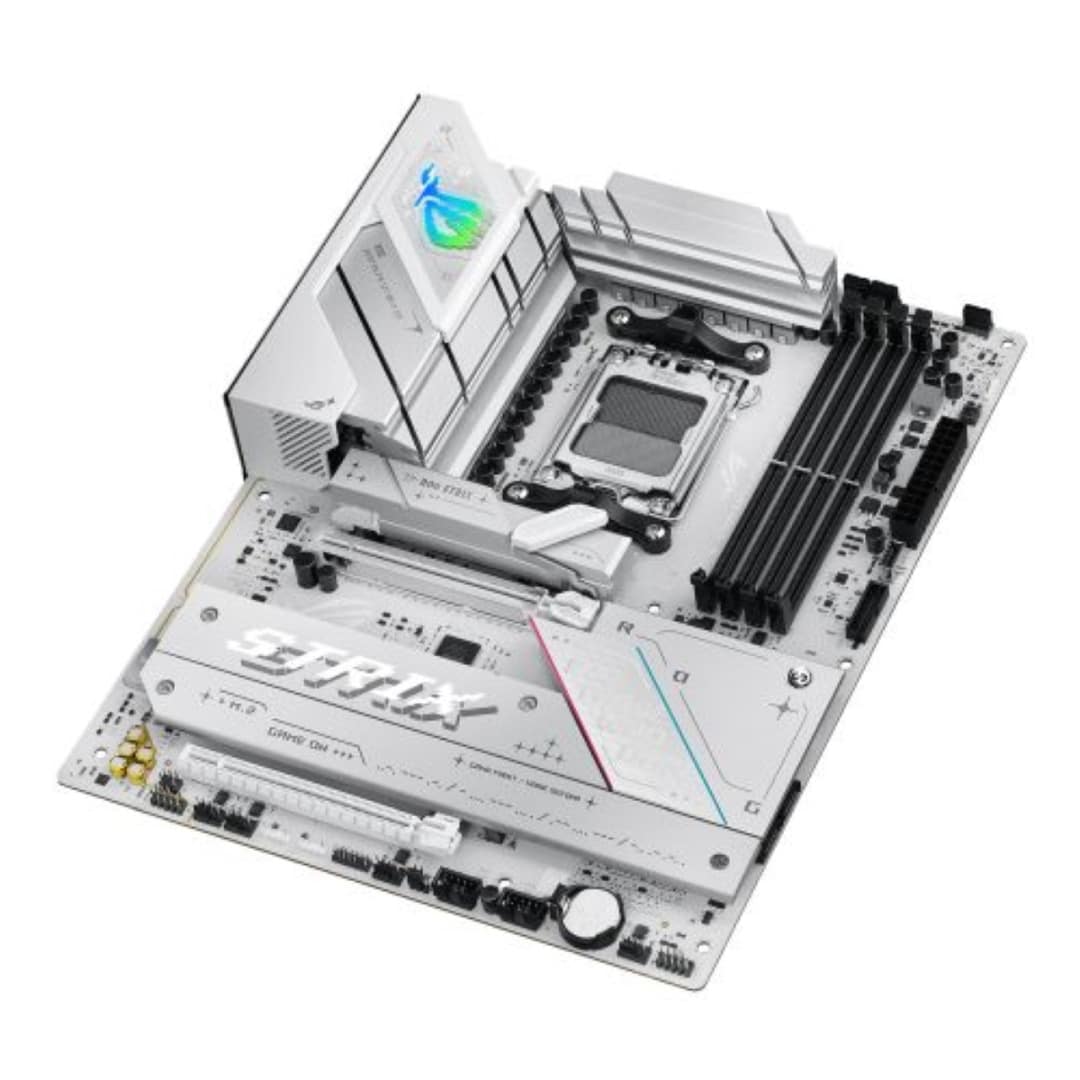

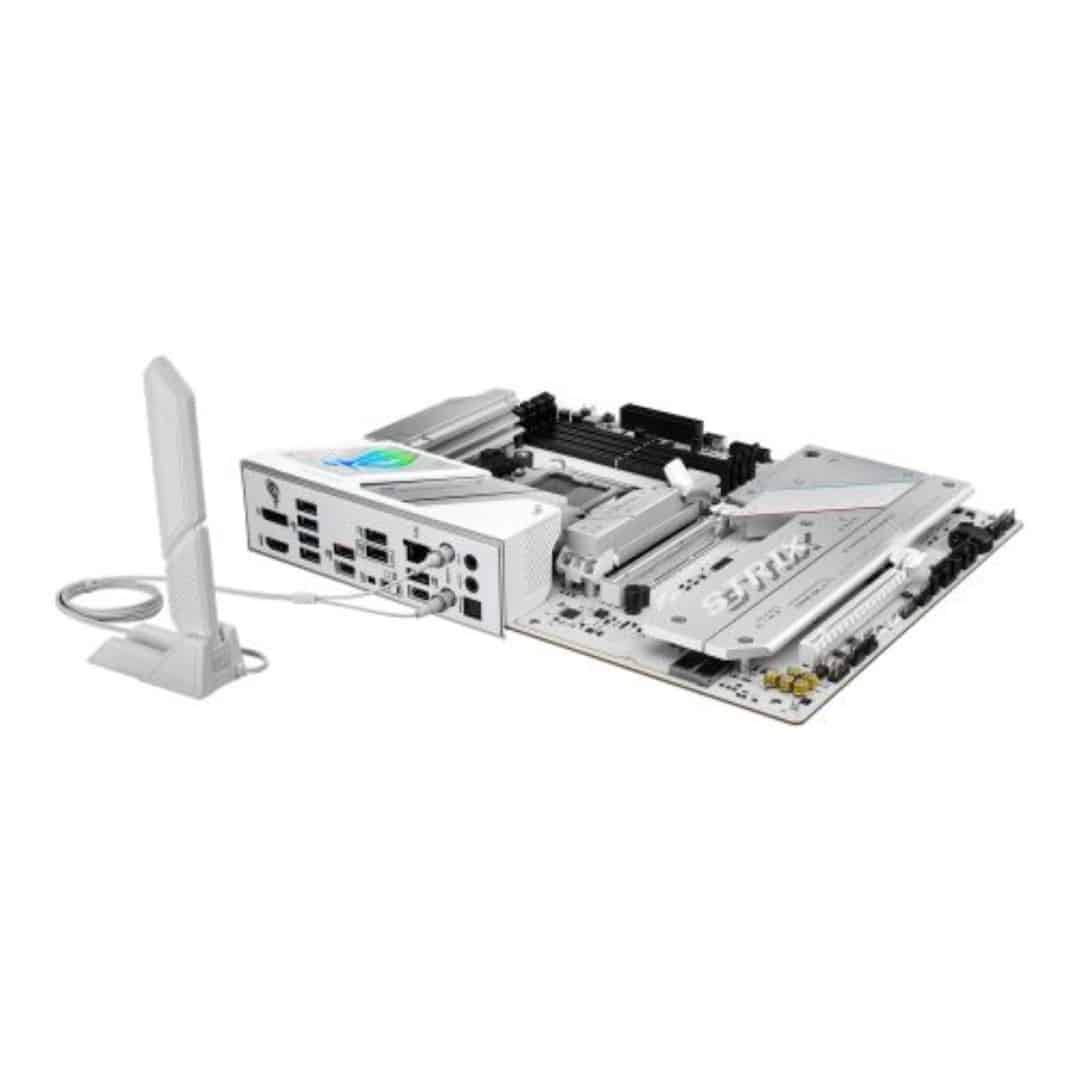

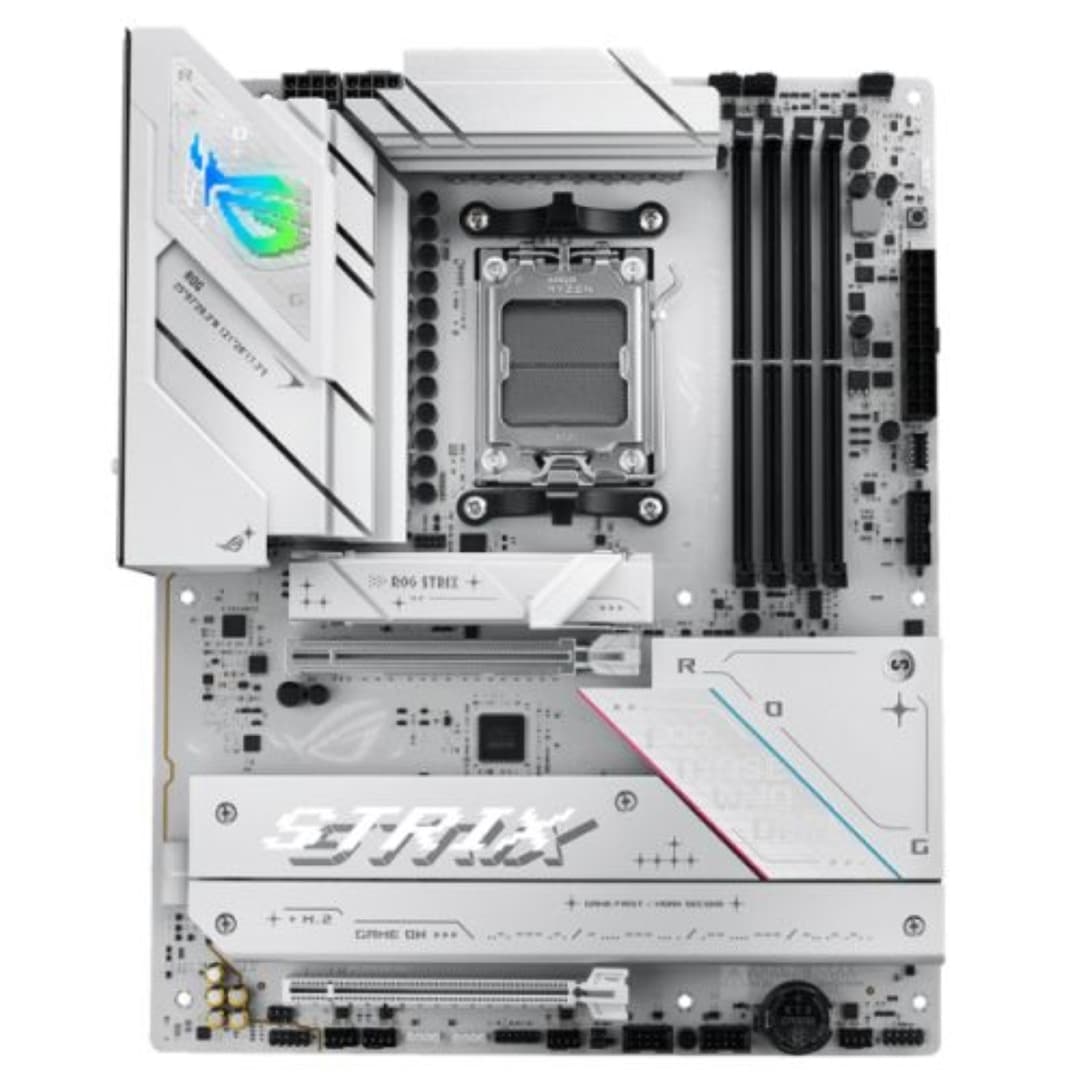

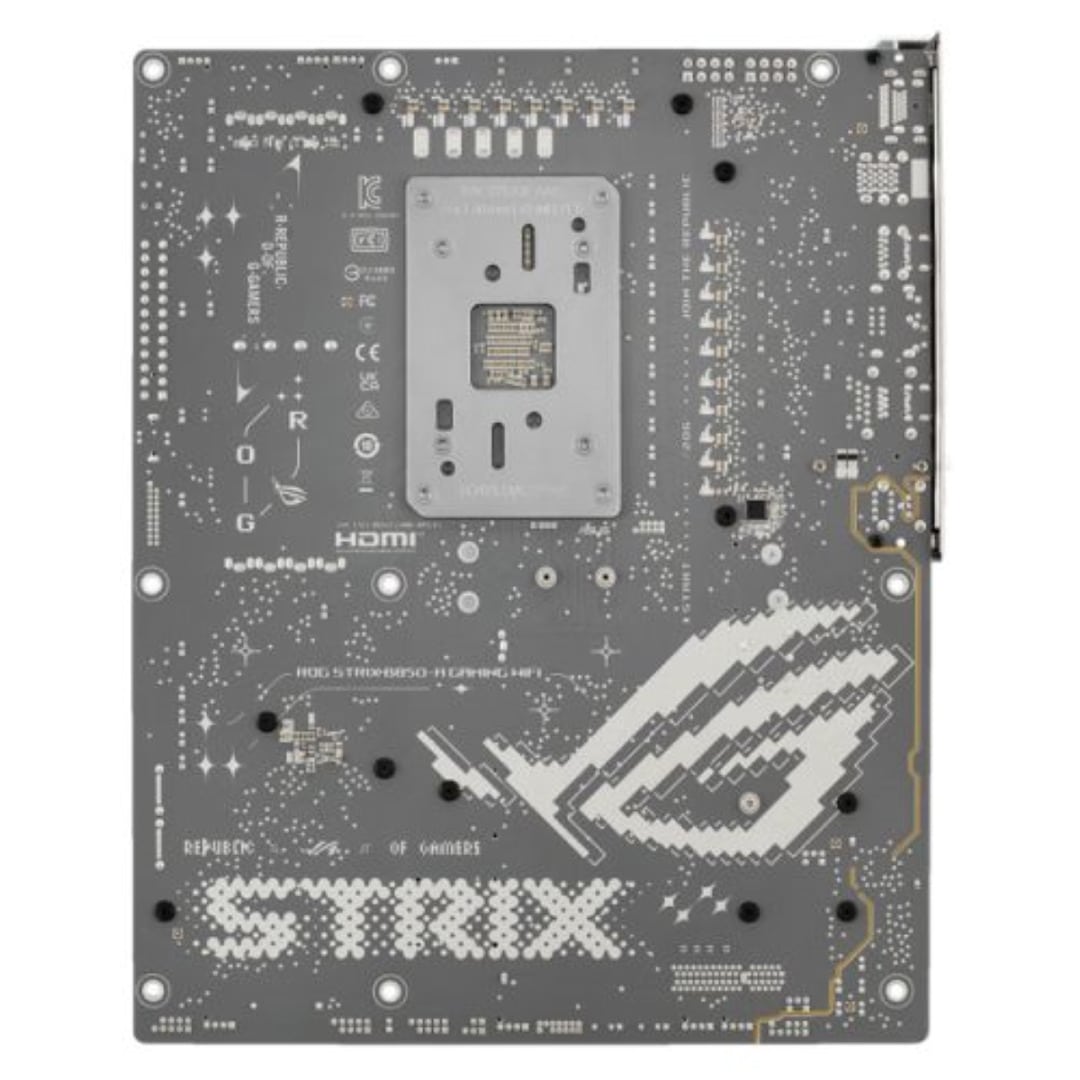

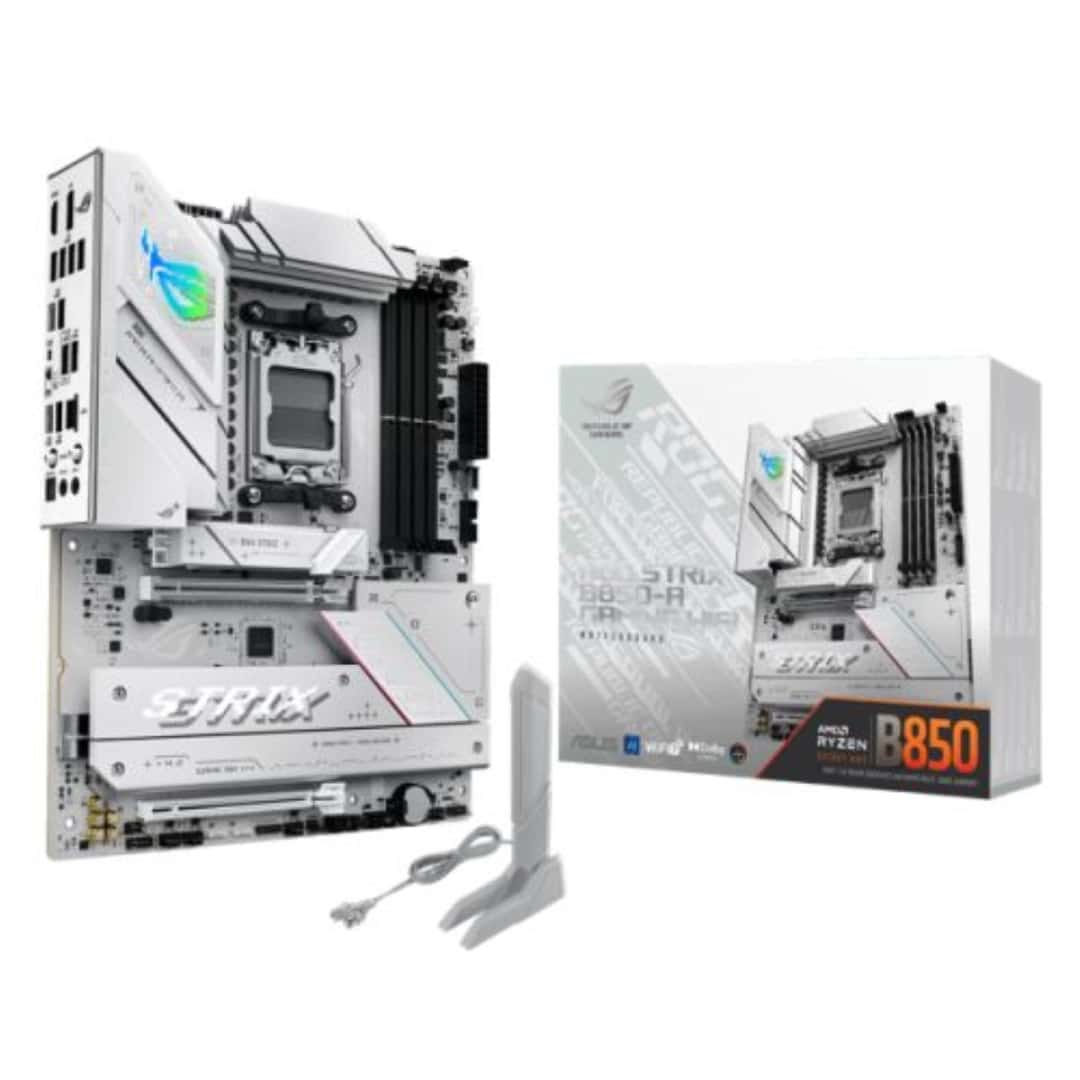

Asus ROG STRIX B850-A GAMING WIFI AMD B850 AM5 ATX 4 DDR5 HDMI DP Wi-Fi 7 2.5G LAN RGB 4x M.2

The ROG Strix B850-A Gaming WiFi motherboard is designed for high-performance builds, especially targeting AMD Ryzen 9000 Series processors. It balances style and power, making it ideal for gamers, content creators, and enthusiasts alike. Here’s a detailed breakdown of its key features:

• AMD B850 ATX Motherboard: Supports AMD Ryzen 9000 Series processors, delivering excellent power and performance.
• 14+2+2 Power Stages: Features robust power stages (14+2+2, 80A each), ensuring stable and efficient power delivery for high-performance CPUs.
• DDR5 Support with AEMP: Supports cutting-edge DDR5 memory and utilizes ASUS’ AEMP for optimized overclocking profiles.
• WiFi 7 & ASUS WiFi Q-Antenna: Offers next-gen WiFi 7 connectivity, ensuring faster speeds and better signal quality for gaming and streaming.
• PCIe 5.0 Support: Future-proofing with full PCIe 5.0 support, ensuring compatibility with the latest high-speed components.
• USB 20Gbps & Type-C Ports: Features USB 20Gbps and USB 10Gbps Type-C ports for rapid data transfer.
• Four M.2 Slots: Enables high-speed storage options with support for PCIe Gen4 M.2 drives.
• AI-Powered Features:
  • AI Advisor: AI-driven interface to guide users through advanced motherboard features.
  • AI Networking II: Optimizes network performance for seamless gaming and streaming with WiFi 7.
• Cooling Solutions: Equipped with M.2 heatsinks, VRM heatsink array, and high-conductivity thermal pads to keep the system cool under load.

Overclocking and Power Features:

• PBO Enhancement: Boosts CPU performance by optimizing current and voltage limits for higher boosts in performance.
• Alloy Chokes & Durable Capacitors: Designed to withstand extreme temperatures, ensuring stable performance during heavy workloads.
• Eight-Layer PCB: Helps dissipate heat and supports higher overclocking headroom.

Connectivity:

• WiFi 7: Fast, low-latency WiFi with Multi-Link Operation (MLO), providing smoother connections.
• Intel 2.5Gb Ethernet: Faster wired networking for quicker file transfers and gaming.
• USB Ports: Includes a total of 17 USB ports, including ultra-fast 20Gbps options.
• SupremeFX Audio: High-quality audio with ALC4080 codec for immersive 32-bit/384 kHz playback.

DIY and User-Friendly Features:

• PCIe Slot Q-Release Slim: Easy graphics card removal with automatic slot release.
• M.2 Q-Latch & M.2 Q-Release: Tool-free SSD installation/removal for convenience.
• Q-LED: Troubleshooting LED indicator to quickly check system status.
• Clear CMOS & BIOS FlashBack: Easily reset the BIOS or update without needing a CPU or RAM installed.

Customization and Aesthetics:

• Aura Sync RGB: Sync lighting effects across all compatible devices for a unified aesthetic.
• Undeniably ROG Strix Design: Sleek white PCB with metallic heatsinks and RGB lighting for a stylish, modern look.

Software Utilities:

• Armoury Crate: Centralized control for RGB lighting and fan management.
• TurboV Core: Simple in-Windows overclocking for quick performance tuning.
• AIDA64 Extreme: Hardware diagnostics and performance monitoring tool included with a 60-day subscription.

This motherboard is an excellent choice for users looking to build a high-performance system with cutting-edge connectivity, cooling, and overclocking capabilities, all housed in a visually appealing package.

Specifications:

• Motherboard Type: Desktop

• Form Factor: ATX

• Socket: AMD AM5

• Chipset: AMD B850

• RAM Technology: DDR5 (Dual Channel)

  • ECC and Non-ECC Un-buffered DIMM*
  • Supports AMD EXPO
  • ASUS AEMP
  • *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

• RAM Slots: 4 x DIMM

• RAM Speeds: Up to 8000+ MT/s (OC)

• Maximum Memory: 192GB

• Graphics: Integrated Graphics (Specifications vary between CPU types)

• Graphics Ports:

  • 1 x HDMI
  • 1 x DisplayPort

• PCI/PCI Express:

  • Ryzen 9000 & 7000 Series CPUs:
    • 1 x PCIe 5.0 x16
  • Ryzen 8000 Series CPUs:
    • 1 x PCIe 5.0 x16 (supports PCIe 4.0 x8/x4 mode)
  • AMD B850 Chipset:
    • 1 x PCIe 4.0 x16 (supports x4 mode)

• Storage:

  • 2 x SATA III
  • 4 x M.2
    • Ryzen 9000 & 7000 Series CPUs:
      • M.2_1 (2242/2260/2280) – PCIe 5.0 x4
      • M.2_2 (2280/22110) – PCIe 4.0 x4 mode
    • Ryzen 8000 Series CPUs:
      • M.2_1 (2242/2260/2280) – PCIe 4.0 x4
      • M.2_2 (2280/22110) – PCIe 4.0 x4/x2
    • AMD B850 Chipset:
      • M.2_3 (2280) – PCIe 4.0 x4
      • M.2_4 (2280) – PCIe 4.0 x4

• RAID:

  • AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10
  • RAID 5 Function is only supported by Ryzen 9000 CPUs

• Wireless:

  • Wi-Fi: 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
  • Bluetooth v5.4

• LAN:

  • 2.5GB LAN

• Audio:

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

• USB Ports Supported:

  • Rear:
    • 1 x USB 20Gbps Type-C
    • 3 x USB 10Gbps (2 Type-A, 1 x Type-C)
    • 4 x USB 5Gbps Type-A
    • 2 x USB 2.0
  • Front:
    • 1 x USB 10Gbps Type-C
    • 2 x USB 5Gbps
    • 4 x USB 2.0

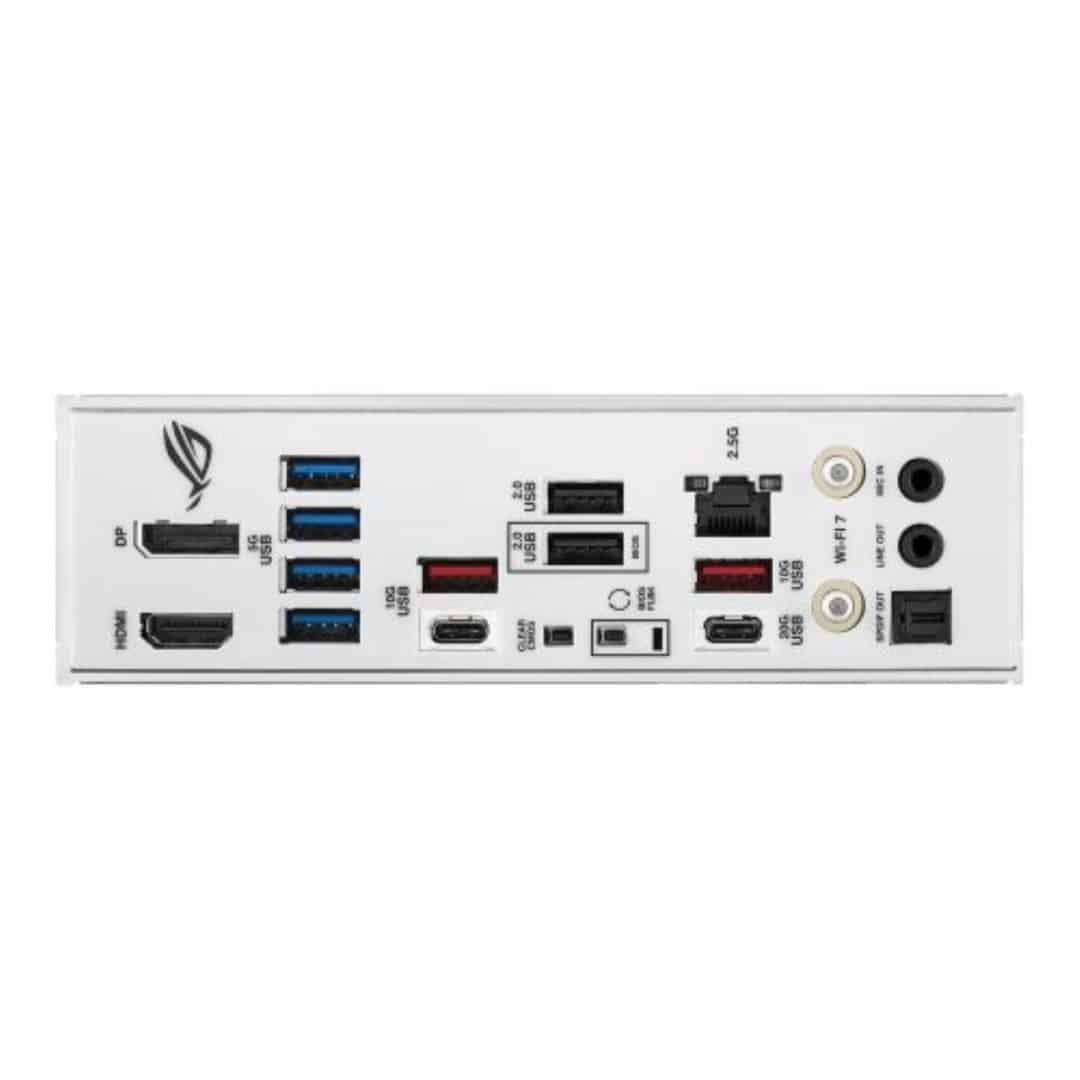

• Back Panel I/O Ports:

  • 1 x USB 20Gbps Type-C
  • 3 x USB 10Gbps (2 Type-A, 1 x Type-C)
  • 4 x USB 5Gbps Type-A
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button

• Internal I/O Connectors:

  • 1 x 4-pin CPU Fan
  • 1 x 4-pin CPU OPT Fan
  • 1 x 4-pin AIO Pump
  • 4 x 4-pin Chassis Fan
  • 1 x 24-pin Main
  • 2 x 8-pin +12V CPU
  • 4 x M.2 (Key M)
  • 2 x SATA 6Gb/s
  • 1 x USB 10Gbps Type-C
  • 1 x USB 5Gbps
  • 2 x USB 2.0
  • 3 x Addressable Gen2
  • 1 x CPU Over voltage jumper
  • 1 x Front Panel Audio
  • 1 x Power button
  • 1 x 10-1 pin Front System Panel
  • 1 x Thermal Sensor
  • 1 x Thunderbolt (USB4)

• Accessories:

  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch package
  • 1 x M.2 Q-Slide package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 4 x M.2 rubbers
  • 1 x USB drive with utilities and drivers
  • 1 x Quick start guide
• Warranty: 3 Years
